Section 03 787 RFI ENGINE
Subsection 03 (TOP END)
F06D25A
1

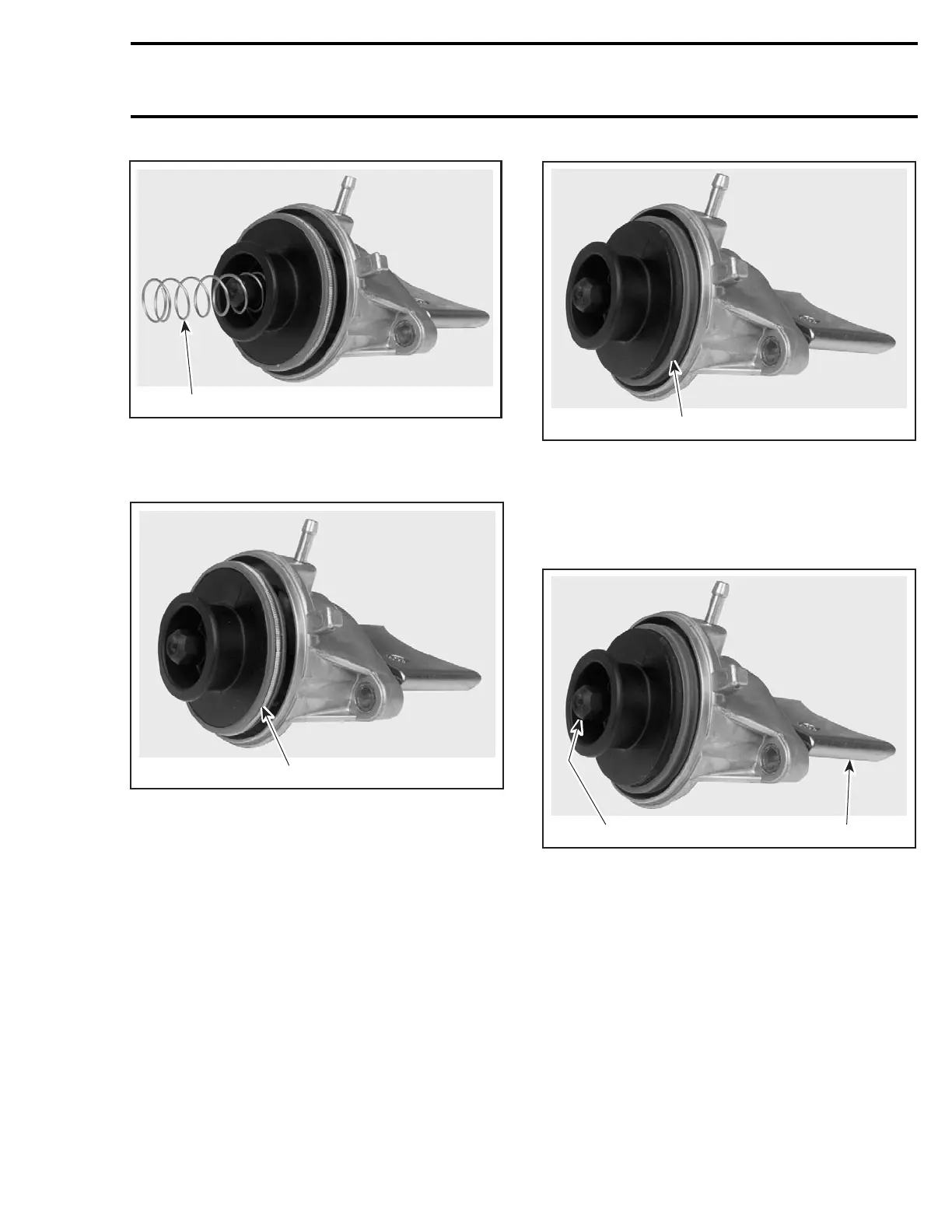

1. Remove spring
Remove spring no. 30 retaining bellows no. 21 to
valve piston no. 20.
F06D0SA
1
1. Spring
Free bellows no. 21 from valve piston no. 20.
F06D0TA
1
1. Bellows removed from piston
Unscrew valve piston no. 20 from sliding valve
no. 22.
NOTE: Hold the sliding valve to prevent it from
turning.
F06D0TB
2
1
1. Unscrew piston
2. Hold sliding valve
Remove compression spring no. 29.
smr2005-082 75
