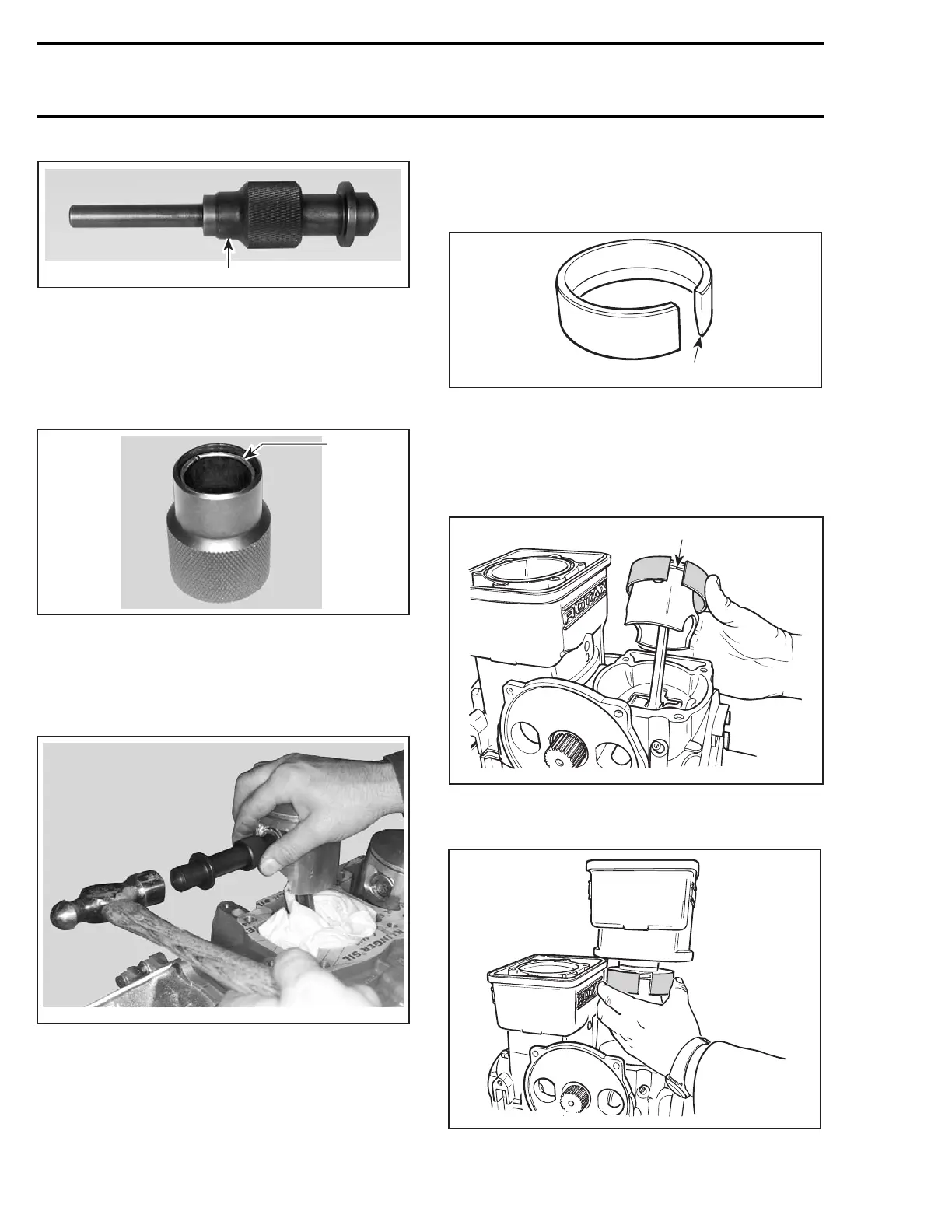

Section 03 787 RFI ENGINE
Subsection 03 (TOP END)
F06B01A
1
TYPICAL
1. Circlip installer
– Remove sleeve from pusher then insert circlip
into its bore.
– Reinstall sleeve onto pusher and push until cir-
clip comes in end of tool.
F00B0QA
1
TYPICAL
1. Circlip near end of tool
– Position end of tool against piston pin opening.
– Firmly hold piston against tool and tap tool with
a hammer to insert circlip into its groove.
F00B0RA
CAUTION: The hand retaining the piston
should absorb the energy to protect the con-
necting rod.
Cylinder
To easily slide cylinder no. 9 over piston, use the
piston ring compressor (P/N 420 876 979).
A01B1TA
1
1. Slide this edge
NOTE: Ring compressor will not fit on oversize
parts.
Makesuretoalignringendgapwithpistonlocat-
ing pin. Slide tool over rings.
F01D0ZA
1
1. Ringendgapalignedwithpistonlocatingpin
Slide cylinder over piston.
F01D10A
84 smr2005-082
