Rotax 2005 787 RFI User Manual

Section 03 787 RFI ENGINE
Subsection 04 (BOTTOM END)

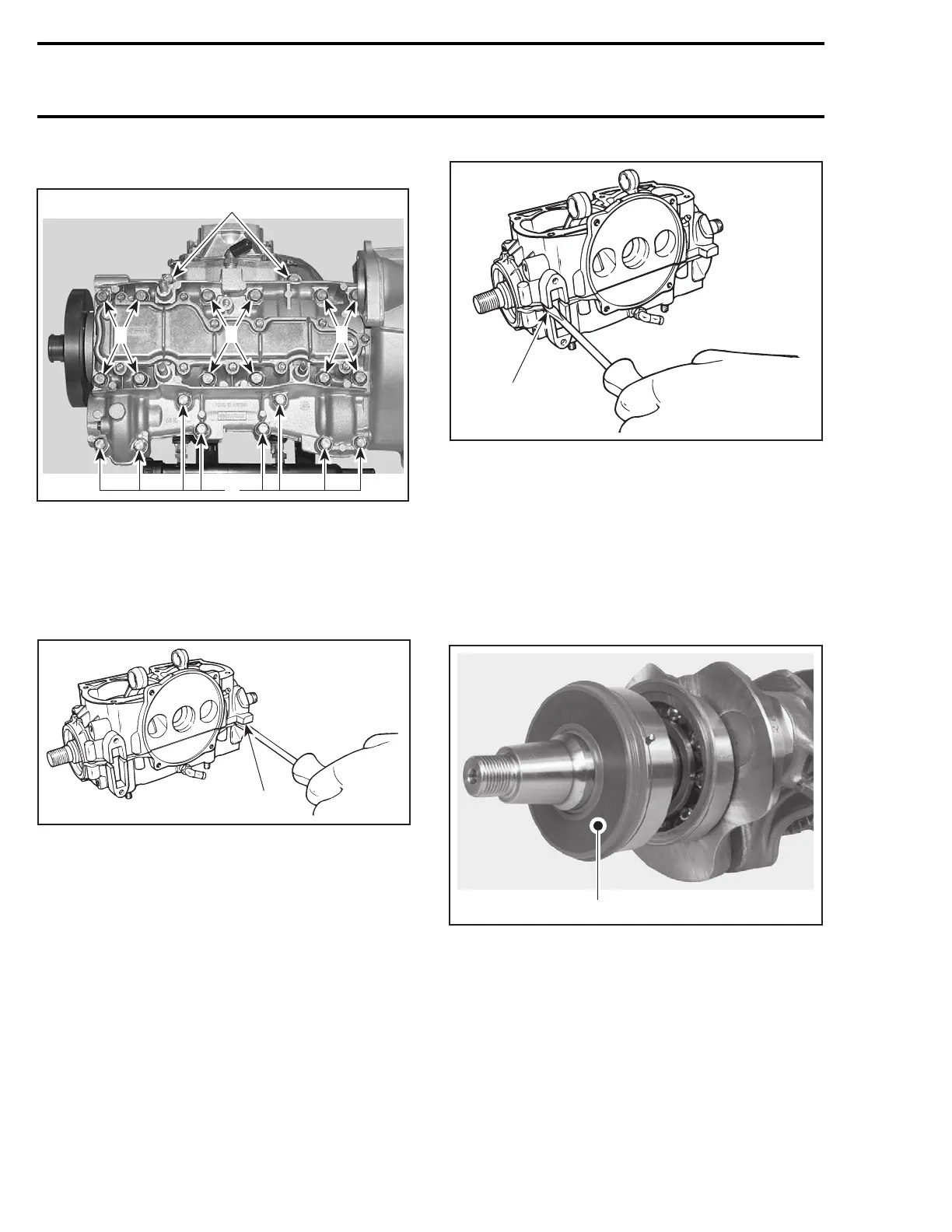

Put engine on a stand. Loosen crankcase screws.
2
F15D05A
2
1
1 1
1. M10 x 73.5 flanged screws
2. M8 x 53.5 flanged screws
Put engine back on a support. Insert a pry bar
between crankcase lugs to separate halves.
CAUTION: Be careful to precision machined
surfaces.
F01D1KA
1
TYPICAL
1. Separate halves by prying at provided lugs
F01D1LA
1
TYPICAL
1. Separate halves by prying at provided lugs
Remove crankshaft and counterbalance shaft.
Crankshaft End Bearings
NOTE: Do not needlessly remove crankshaft bear-
ings.
Take apart crankcase as per procedure above.
Remove PTO seal.
F06D1GA
1
TYPICAL
1. PTO seal
To remove MAG and PTO end bearings no. 4 from
crankshaft, use the following tools.
90 smr2005-083
