INSTALLATION MANUAL

BRP-Powertrain

Effectivity: 912 Series

Edition 2/Rev. 0

75-00-00

page 22

August 01/2012

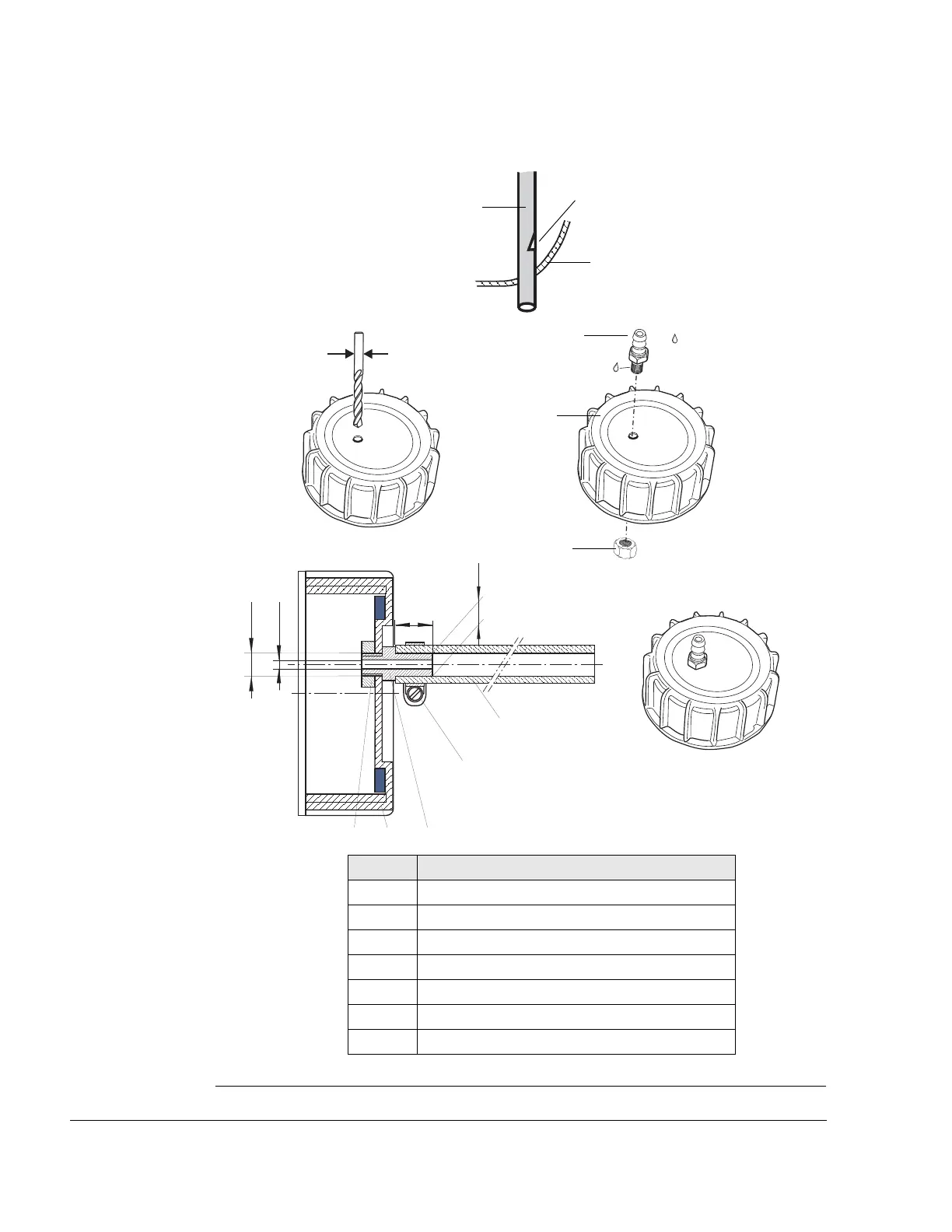

Graphic

Hose nipple

Fig. 10 09132,05033,09126

Part Function

1Nut M6

2Cap

3 Hose nipple

4 Gear-type hose clamp

5Hose

6 Bypass opening (slot)

7 Cowling

11,5mm

(0.453 in)

(0.236 in)

(0.118 in)

(0.236 in)

1 2 3

6 mm (0.236 in.)

LOCTITE 603
