Effectivity: 915 i A Series
Edition 0 / Rev. 0
BRP-Rotax Page 7-3
December 01 2017
7.1.3) Engine components

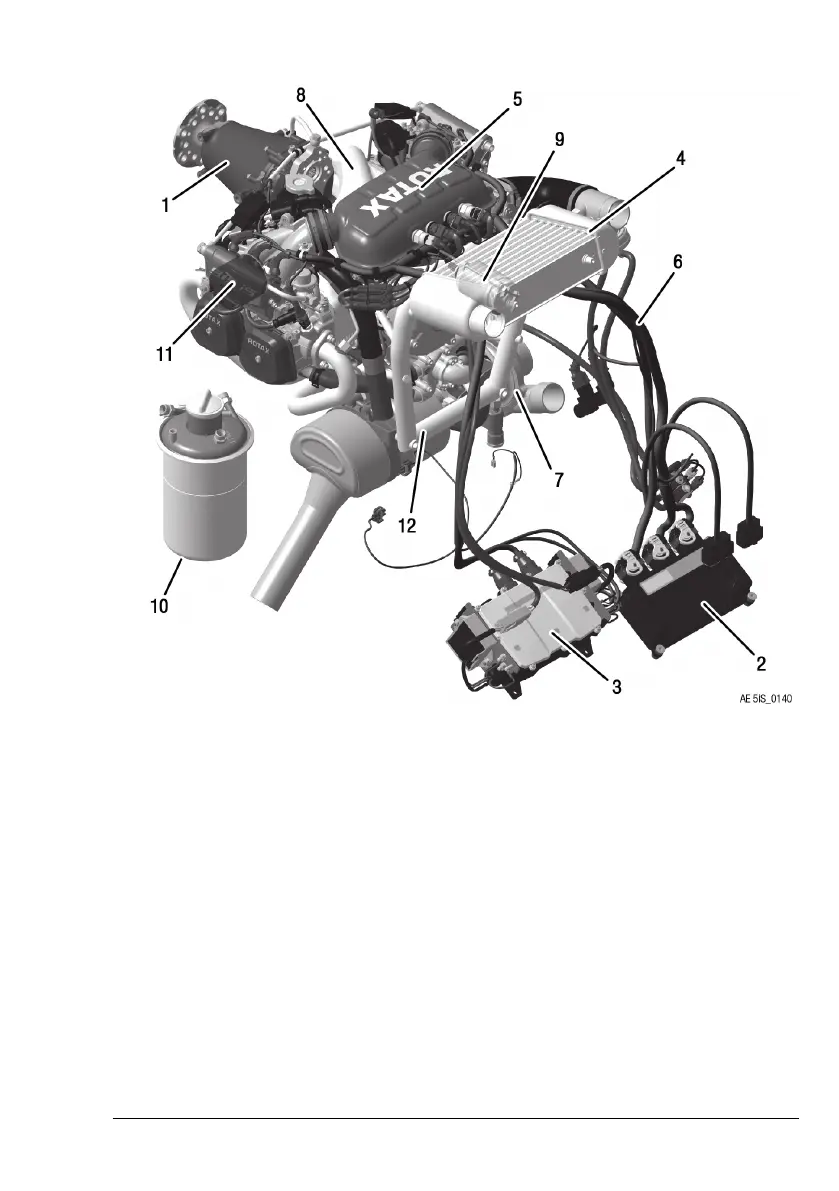

Figure 1: Engine components
1
Propeller gearbox
2 ECU
3 Fusebox 4 Intercooler
5 Airbox 6
Wiring harness
7
Turbocharger
8 Air baffle
9 Electric starter
10
Oil tank
11 Oil filter
12
Suspension frame
