3.11.8.2) Rocker arm with pressed sinter bushing
See Fig. 72-81.
See 72-00-00 sec. 4.
The bearing bush cannot be replaced. If the rocker arm is
worn, it must be replaced with a rocker arm with a plastic
bushing.
â—† NOTE: When doing so, check whether an oversize
rocker arm shaft is fitted.
VT05
07496

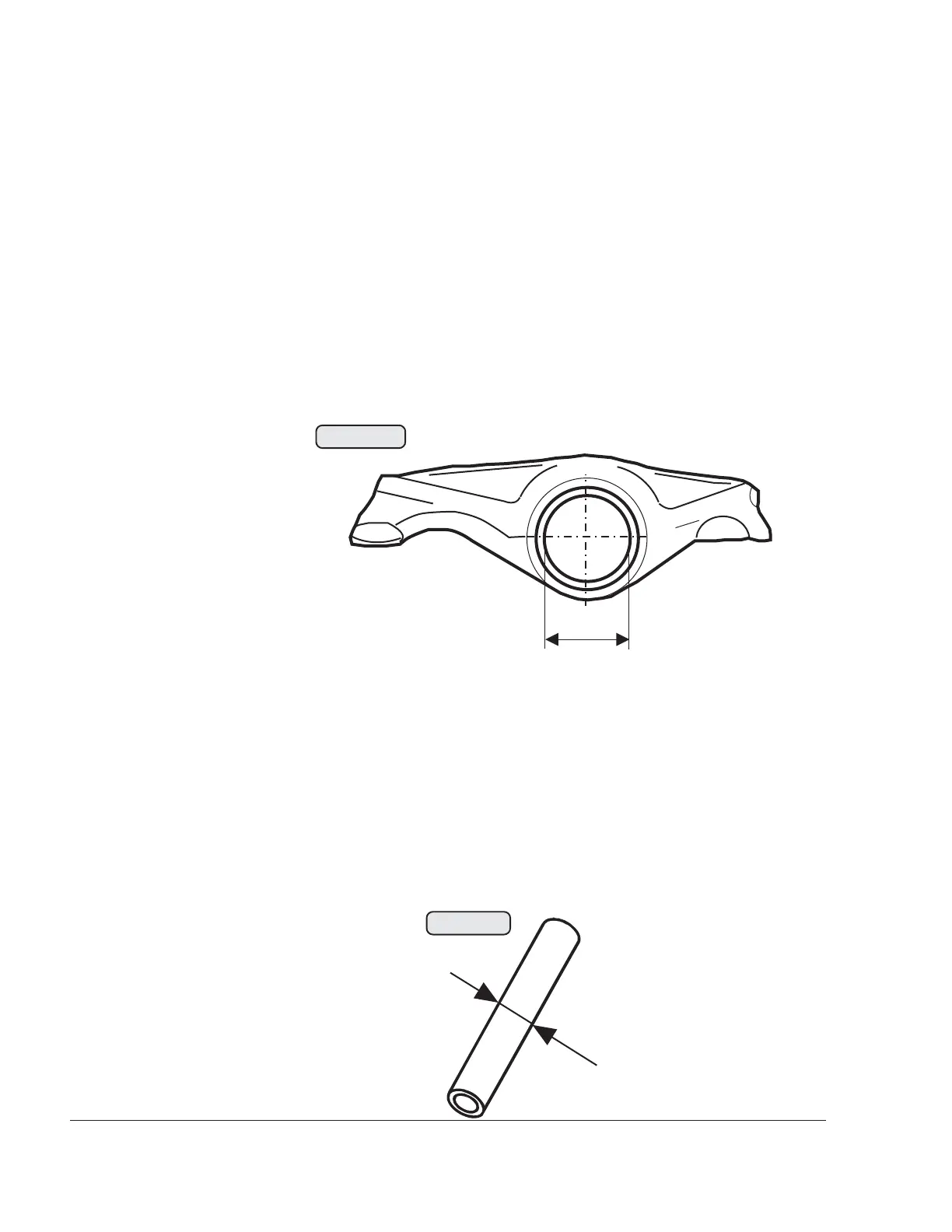

Fig. 72-82
VT07
07497
3.11.8.3) Rocker arm shaft
See Fig. 72-82.
See 72-00-00 sec. 4.
Check the surface of the rocker arm for signs of friction.
â—† NOTE: Oversize rocker arm shafts and rocker arm
bushings are available for repairing the
rocker arm bearing in the cylinder head.
