Connect

the

Power

Cord

to

your

wall

socket

for

AC

power.

When

you

wish

to

disconnect

the

power

cord

from

the

wall,

always

hold

the

plug

firmly

and

then

pull

it

out

of

the

wall

socket.

Do

not

unplug

the

power

cord

from

the

wall

by

pulling

the

cord

only.

This

may

damage

the

power

cord

and

create

a

hazardous

condition.

We

recommend

that

the

RD

960BX

be

connected

to

the

mains'

wall

socket

or

a

power

line

filter.

If

you

wish

to

clean

the

cabinet

on

the

RD

960BX

we

suggest

that

you

clean

it

with

a

soft,

DRY

cloth.

Never

use

cleaning

compounds

or

solvents

to

clean

the

cabinet

as

they

may

damage

the

finish

or

remove

the

labels.

They

could

also

damage

the

circuitry,

tape

heads

or

drive

mechanisms

if

any

residue

falls

inside

the

cassette

deck.

There

are

NO

user

serviceable

parts

inside

the

RD

960BX.

Please

do

not

open

the

cabinet

as

this

will

expose

you

to

the

risk

of

potentially

dangerous

high

voltage

and

the

risk

of

shock.

This

could

also

damage

the

circuits

and

possibly

void

your

warranty.

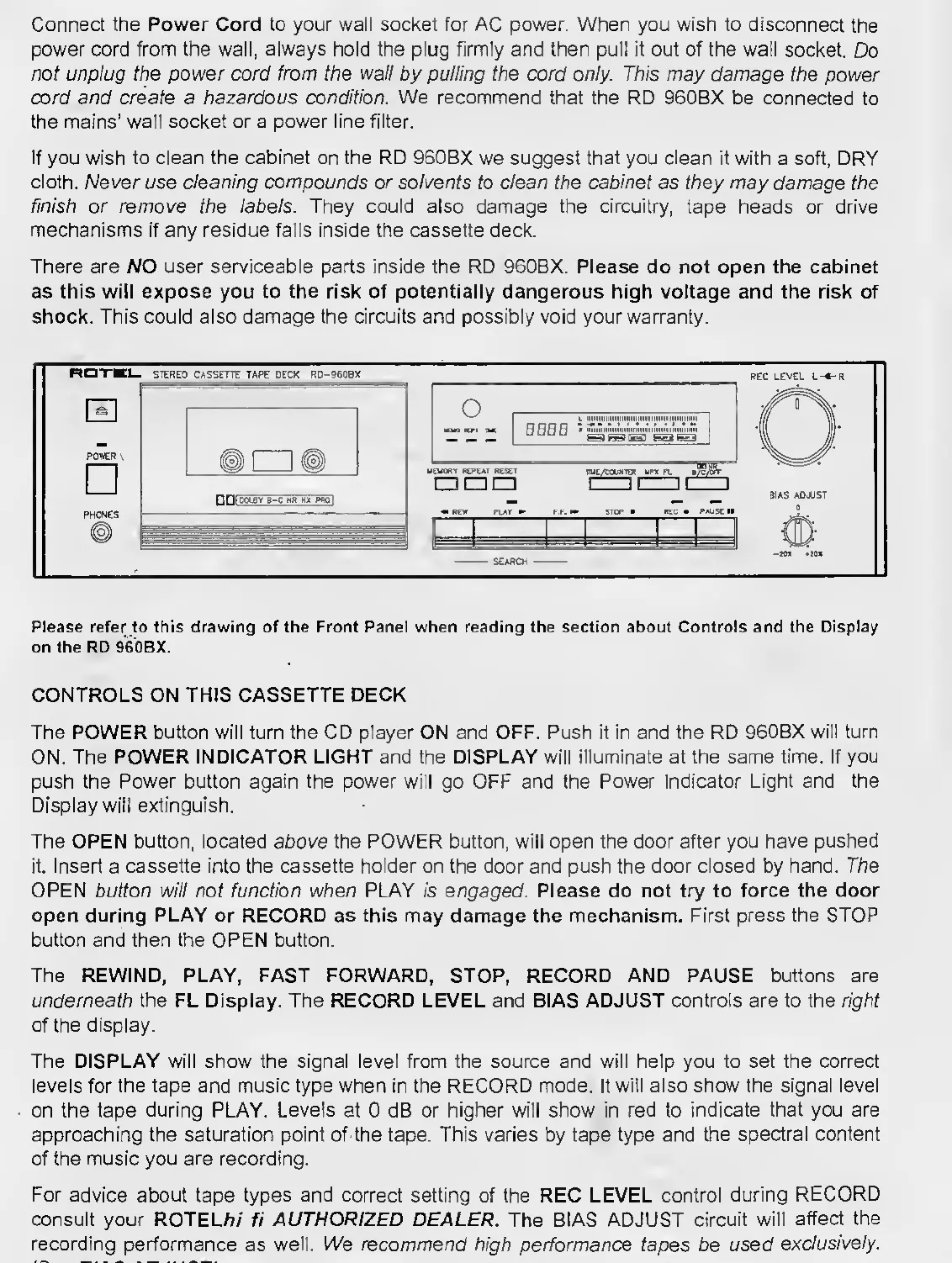

Please

refer

to

this

drawing

of

the

Front

Panel

when

reading

the

section

about

Controls

and

the

Display

on

the

RD

960BX.

CONTROLS

ON

THIS

CASSETTE

DECK

The

POWER

button

will

turn

the

CD

player

ON

and

OFF.

Push

it

in

and

the

RD

960BX

will

turn

ON.

The

POWER

INDICATOR

LIGHT

and

the

DISPLAY

will

illuminate

at

the

same

time.

If

you

push

the

Power

button

again

the

power

will

go

OFF

and

the

Power

Indicator

Light

and

the

Display

will

extinguish.

The

OPEN

button,

located

above

the

POWER

button,

will

open

the

door

after

you

have

pushed

it.

Insert

a

cassette

into

the

cassette

holder

on

the

door

and

push

the

door

closed

by

hand.

The

OPEN

button

will

not

function

when

PLAY

is

engaged.

Please

do

not

try

to

force

the

door

open

during

PLAY

or

RECORD

as

this

may

damage

the

mechanism.

First

press

the

STOP

button

and

then

the

OPEN

button.

The

REWIND,

PLAY,

FAST

FORWARD,

STOP,

RECORD

AND

PAUSE

buttons

are

underneath

the

FL

Display.

The

RECORD

LEVEL

and

BIAS

ADJUST

controls

are

to

the

right

of

the

display.

The

DISPLAY

will

show

the

signal

level

from

the

source

and

will

help

you

to

set

the

correct

levels

for

the

tape

and

music

type

when

in

the

RECORD

mode.

It

will

also

show

the

signal

level

on

the

tape

during

PLAY.

Levels

at

0

dB

or

higher

will

show

in

red

to

indicate

that

you

are

approaching

the

saturation

point

of

the

tape.

This

varies

by

tape

type

and

the

spectral

content

of

the

music

you

are

recording.

For

advice

about

tape

types

and

correct

setting

of

the

REC

LEVEL

control

during

RECORD

consult

your

ROTEL

hi

fi

AUTHORIZED

DEALER.

The

BIAS

ADJUST

circuit

will

affect

the

recording

performance

as

well.

We

recommend

high

performance

tapes

be

used

exclusively.
