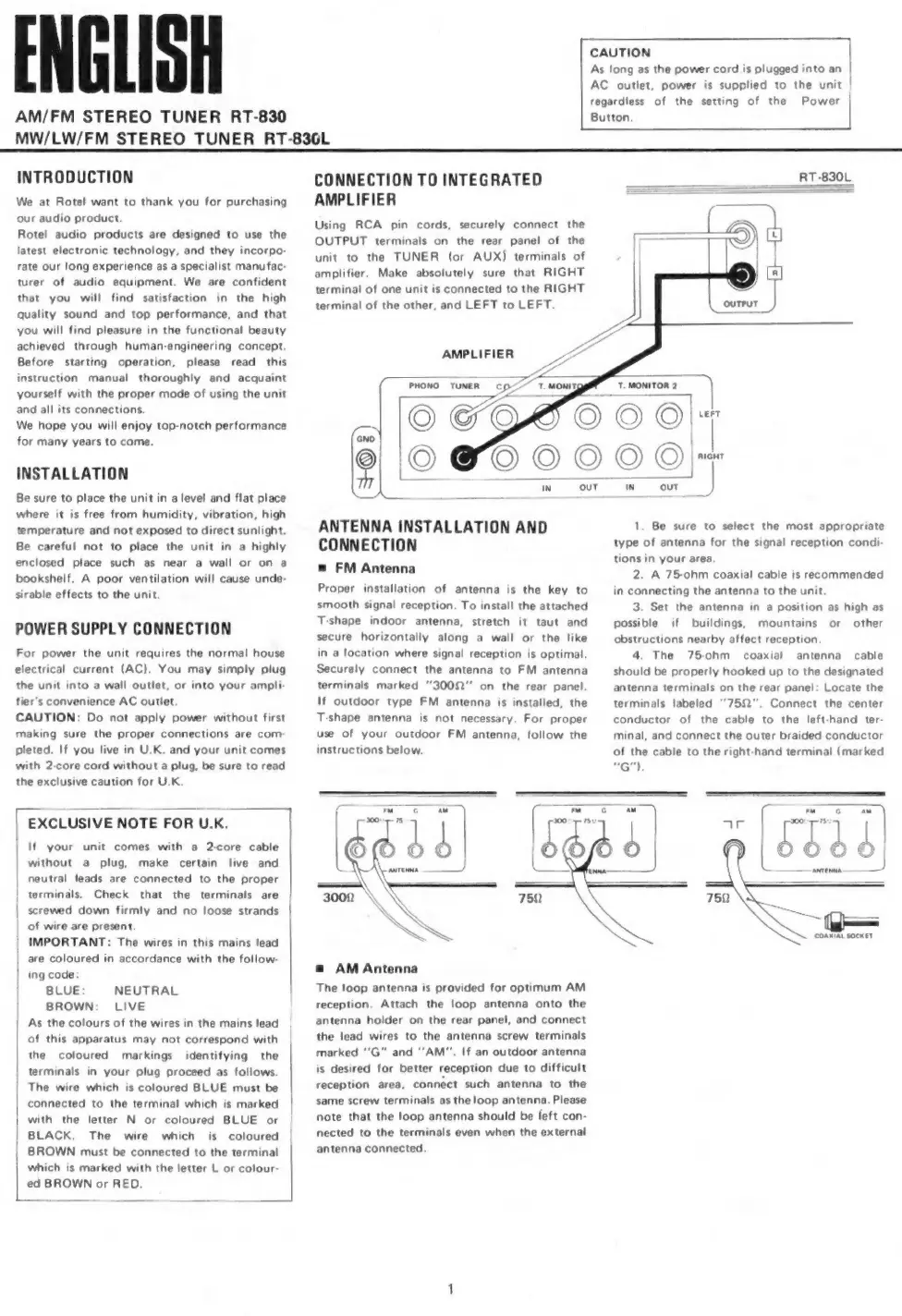

ENGLISH
AM/FM
STEREO
TUNER
RT-830
CAUTION
As
long
as
the
power
cord
is
plugged
into
an
AC
outlet,
power
is
supplied
to
the
unit
|
regardless
of
the
setting
of
the
Power
Button.
MW/LW/FM
STEREO
TUNER
RT-836L
INTRODUCTION
We
at
Rotel
want
to
thank
you
for
purchasing
our
audio
product.
Rotel
audio
products
are
designed
to
use
the
latest
electronic
technology,
and
they
incorpo-
rate
our
long
experience
as
a
specialist
manufac-
turer
of
audio
equipment.
We
are
confident
that
you
will
find
satisfaction
in
the
high
quality
sound
and
top
performance,
and
that
you
will
find
pleasure
in
the
functional
beauty
achieved
through
human-engineering
concept.
Before
starting
operation,
please
read
this
instruction
manual
thoroughly
and
acquaint
yourself
with
the
proper
mode
of
using
the
unit
and
all
its
connections.
We
hope
you
will
enjoy
top-notch
performance
for
many
years
to
come.
INSTALLATION
Be
sure
to
place
the
unit
in
a
level
and
flat
place
where
it
is
free
from
humidity,
vibration,
high
temperature
and
not
exposed
to
direct
sunlight.
Be
careful
not
to
place
the
unit
in
a
highly
enclosed
place
such
as
near
a
wall
or
on
à
bookshelf.
A
poor
ventilation
will
cause
unde-
sirable
effects
to
the
unit.
POWER
SUPPLY
CONNECTION
For
power
the
unit
requires
the
normal
house
electrical
current
(AC),
You
may
simply
plug
the
unit
into
a
wall
outlet,
or
into
your
ampli-
fier's
convenience
AC
outlet.
CAUTION:
Do
not
apply
power
without
first
making
sure
the
proper
connections
are
com
pleted.
If
you
live
in
U.K.
and
your
unit
comes
with
2-core
cord
without
a
plug,
be
sure
to
read
the
exclusive
caution
for
U.K.
|
EXCLUSIVE
NOTE
FOR
U.K.
1
|
If
your
unit
comes
with
a
2-core
cable
without
a
plug,
make
certain
live
and
|
neutral
leads
are
connected
to
the
proper
|
terminals.
Check
that
the
terminals
are
screwed
down
firmly
and
no
loose
strands
of
wire
are
present.
IMPORTANT:
The
wires
in
this
mains
lead
are
coloured
in
accordance
with
the
follow-
ing
code:
BLUE:
NEUTRAL
BROWN:
LIVE
|
As
the
colours
of
the
wires
in
the
mains
lead
of
this
apparatus
may
not
correspond
with
the
coloured
markings
identifying
the
terminals
in
your
plug
proceed
as
follows.
|
The
wire
which
is
coloured
BLUE
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
N
or
coloured
BLUE
or
BLACK.
The
wire
which
is
coloured
BROWN
must
be
connected
to
the
terminal
which
is
marked
with
the
letter
L
or
colour-
ed
BROWN
or
RED.
CONNECTION
TO
INTEGRATED
AMPLIFIER
Using
RCA
pin
cords,
securely
connect
the
OUTPUT
terminals
on
the
rear
panel
of
the
unit
to
the
TUNER
(or
AUX)
terminals
of
amplifier,
Make
absolutely
sure
that
RIGHT
terminal
of
one
unit
is
connected
to
the
RIGHT
terminal
of
the
other,
and
LEFT
to
LEFT.
AMPLIFIER
RT-830L
ANTENNA
INSTALLATION
AND
CONNECTION
=
FM
Antenna
Proper
installation
of
antenna
is
the
key
to
smooth
signal
reception.
To
install
the
attached
T-shape
indoor
antenna,
stretch
it
taut
and
secure
horizontally
along
a
wall
or
the
like
in
a
location
where
signal
reception
is
optimal.
Securely
connect
the
antenna
to
FM
antenna
terminals
marked
"3002"
on
the
rear
panel.
If
outdoor
type
FM
antenna
is
installed,
the
T-shape
antenna
is
not
necessary,
For
proper
use
of
your
outdoor
FM
antenna,
follow
the
instructions
below.
1.
Be
sure
to
select
the
most
appropriate
type
of
antenna
for
the
signal
reception
condi-
tions
in
your
area.
2.
A
75-ohm
coaxial
cable
is
recommended
in
connecting
the
antenna
to
the
unit.
3.
Set
the
antenna
in
a
position
as
high
as
possible
if
buildings,
mountains
or
other
obstructions
nearby
affect
reception.
4.
The
75ohm
coaxial
antenna
cable
should
be
properly
hooked
up
to
the
designated
antenna
terminals
on
the
rear
panel:
Locate
the
terminals
labeled
''7512".
Connect
the
center
conductor
of
the
cable
to
the
left-hand
ter-
minal,
and
connect
the
outer
braided
conductor
of
the
cable
to
the
right-hand
terminal
(marked
"G").
evel
2^
[i
ANTENNA.
@
AM
Antenna
The
loop
antenna
is
provided
for
optimum
AM
reception.
Attach
the
loop
antenna
onto
the
antenna
holder
on
the
rear
panel,
and
connect
the
lead
wires
to
the
antenna
screw
terminals
marked
''G"
and
“AM”.
If
an
outdoor
antenna
is
desired
for
better
reception
due
to
difficult
reception
area,
connect
such
antenna
to
the
same
screw
terminals
as
theloop
antenna.
Please
note
that
the
loop
antenna
should
be
feft
con-
nected
to
the
terminals
even
when
the
external
antenna
connected.
COAXIAL
SOCKET
