17 RLD | 3.0/4.01
6.1.2 RLD 14 Wiring

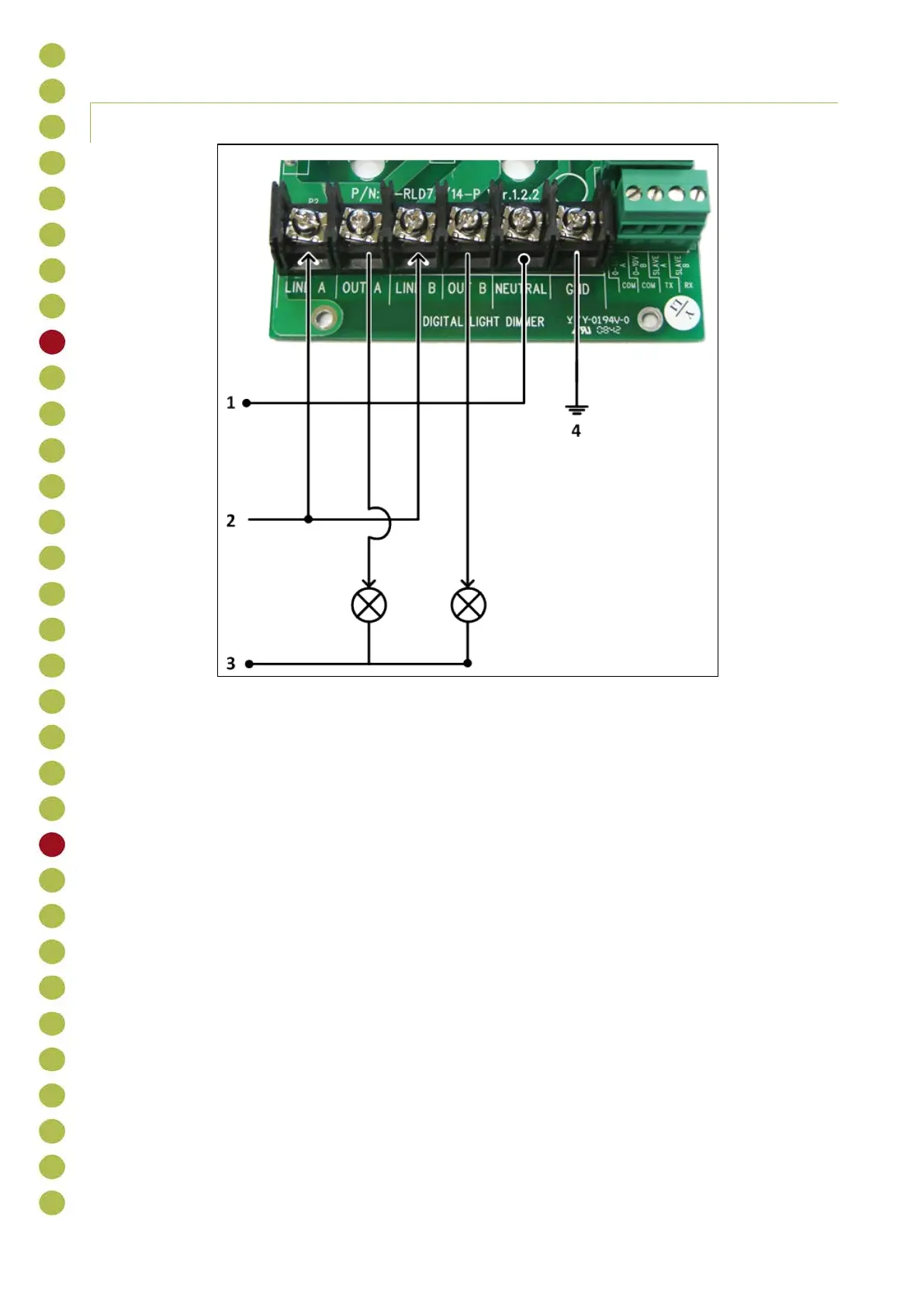

Figure 4: RLD 230V Single Phase Wiring
Key:
1: Neutral
2: 230 VAC
3: Neutral
4: Safety ground
