Rotex 30308 - Solenoid Valve Identification; Valve Marking

IM No.: IM/V/0015, Rev. 7
Date: 14.10.2019
Page 2 of 6

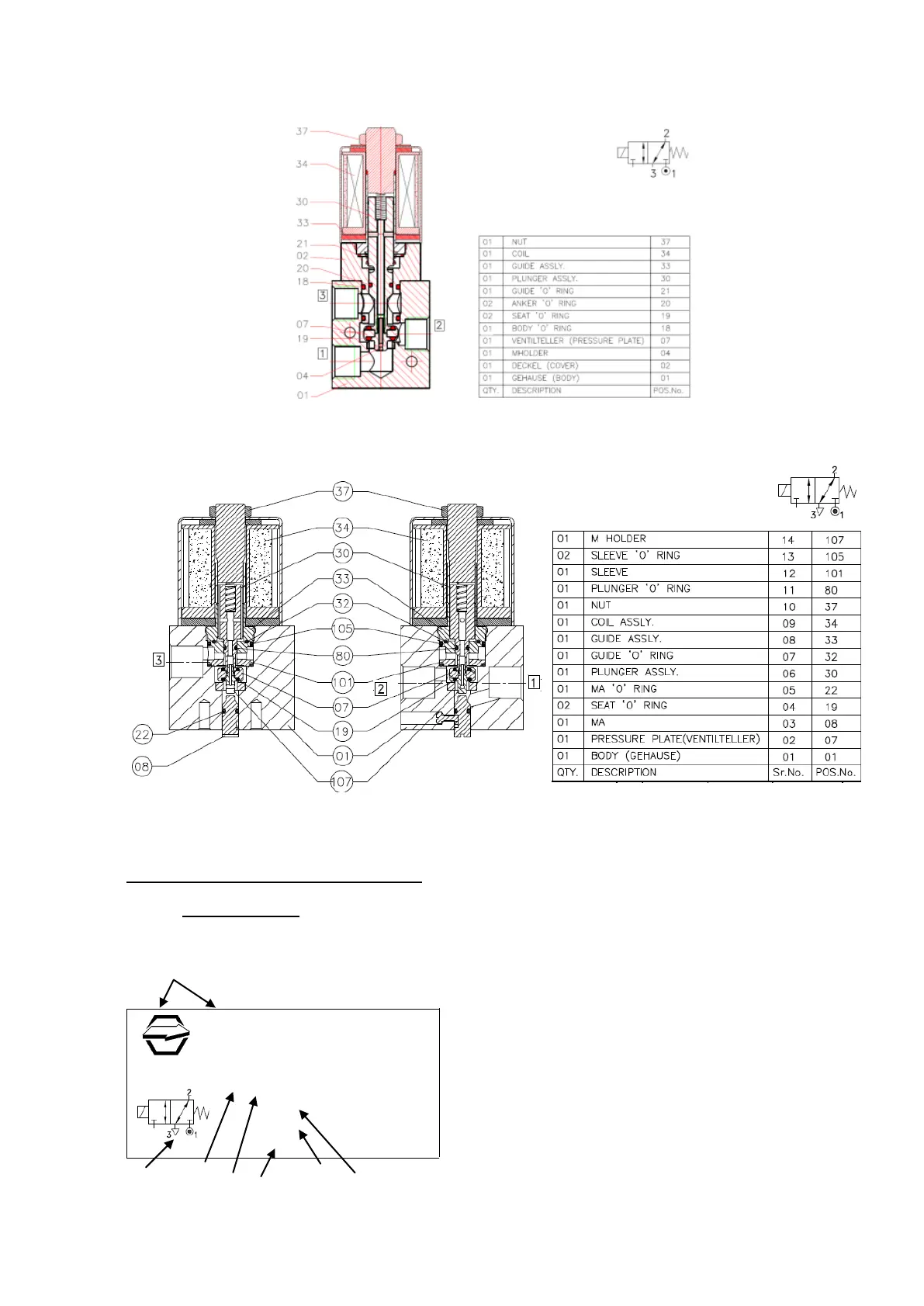

VALVE MODEL 30309, 30329
VALVE MODEL 30333
IDENTIFICATION ON THE SOLENOID VALVE
a) VALVE MARKING
Marking on the ROTEX Solenoid Valve shows the following details:
(1)
Logo + Name & address of the Manufacturer
(2)
Valve Type / Code
30308
=
Valve Model
Suffix
=
Nil
5
=
Orifice  (mm)
2R
=
Port Connection ¼” NPT(F)
B5
=
Body Material : SS316
M8
=
Manual Override: Push type
S2
=
Seal Material : Viton
Sp. Version
=
Nil
(3)
Work Order reference / Sr. No. of the Valve
(4)
Operating Pressure
(5)
Month & Year of manufacture
(6)
Valve Symbol
(7)
Media
(1)
ROTEX AUTOMATION LIMITED
VADODARA-390010, INDIA
FLUID CONTROL SYSTEM
CODE : 30308-5-2R-B5-M8-S2
ATM
0-10
MEDIA
AIR
DATE
9/2016
Wo. No.
16100650/10
(6) (2) (4) (3) (5) (7)
