-5--4-

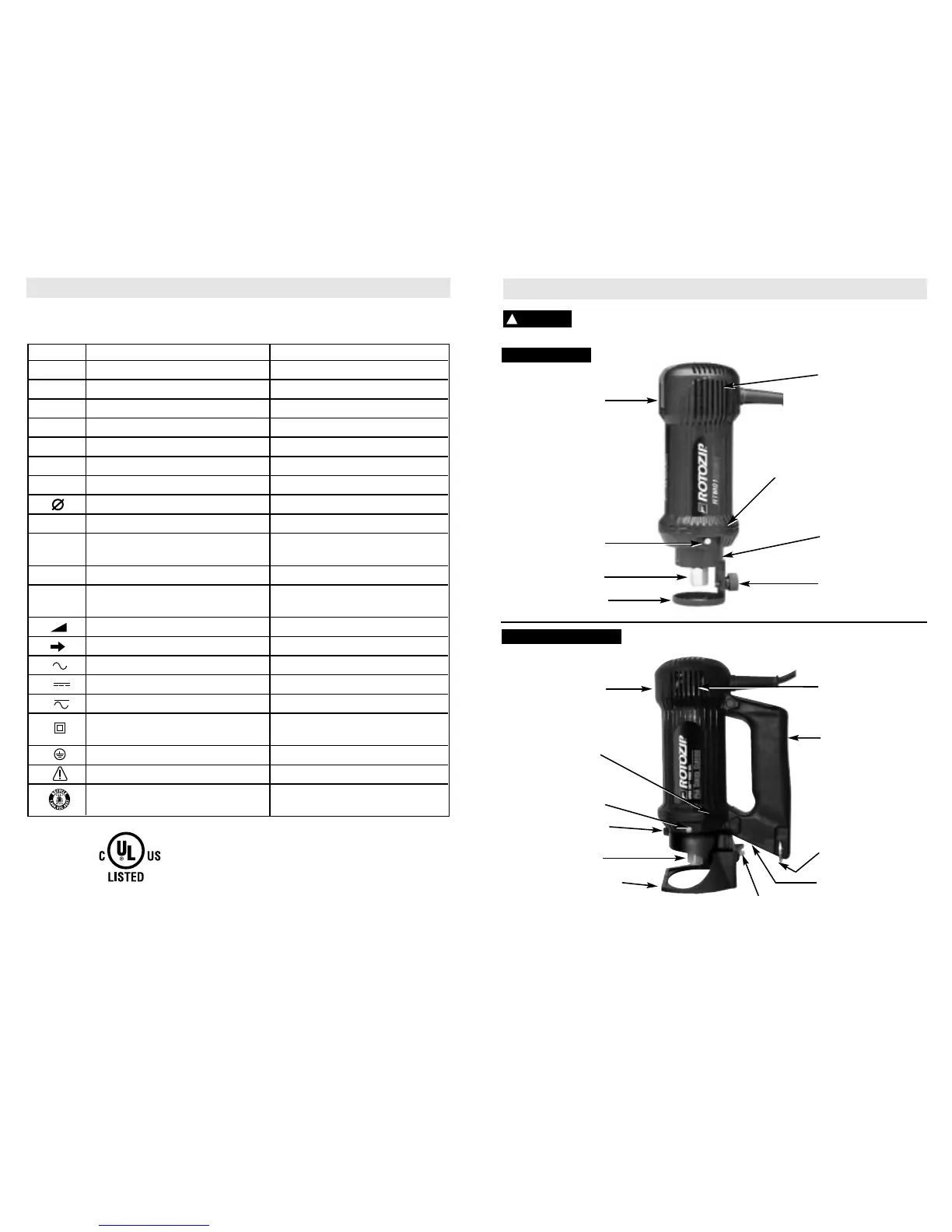

Functional Description and Specifications
SHAFT LOCK
SHAFT LOCK
BASE GUIDE
RELEASE LEVER
REMOVABLE
AUXILIARY
HANDLE
WRENCH
STORAGE AREA
INTAKE
AIR VENTS
INTAKE
AIR VENTS
BASE PLATE /
DEPTH GUIDE
STRAIGHT EDGE
BASE PLATE /
DEPTH GUIDE
DEPTH GUIDE
LOCKING KNOB
DEPTH GUIDE
BRACKET
EXHAUST
AIR VENTS
COLLET NUT
COLLET NUT
Disconnect the plug from the power source before making any assembly,
adjustments or changing accessories. Such preventive safety measures
reduce the risk of starting the tool accidentally.
!
WARNING
NOTE: For tool specifications refer to nameplate on your tool.
ON/OFF SLIDE
SWITCH
ON/OFF SLIDE
SWITCH
DEPTH GUIDE
LOCKING KNOB
COLLET & ZIP BIT
STORAGE AREA
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Diameter Size of drill bits, grinding wheels, etc.
n
0
No load speed Rotational speed, at no load
.../min Revolutions or reciprocation per minute Revolutions, strokes, surface speed,
orbits etc. per minute
0 Off position Zero speed, zero torque...
1, 2, 3, ... Selector settings Speed, torque or position settings.
I, II, III, Higher number means greater speed
Infinitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II construction Designates Double Insulated
Construction tools.
Earthing terminal Grounding terminal
Warning symbol Alerts user to warning messages
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program
Symbols
RTMØ1/SCS01
Pro Series Classic
EXHAUST
AIR VENTS
This product is Listed by Underwriters
Laboratories Inc. Representative samples
of this product have been evaluated by UL
and meet the applicable U.S. and Canadian
safety standards.
(SCS01 model has a handle)
