8
Transmitter Manual
Operating Example
Adjustment Before Starting
please open transmitter firstly,then open
power source of receiver;
make sure no interference from same
frequency around;baja can be worked on if
you think everything is ok;
stop operating it if frequency has problem.
E POINT
：
adjusting max range of left or right of
servo
REV
：
adjustment of reverse or forward
TRIM
：
micro
-
adjustment of servo center to make
balance.
ABS
：
brake type:quick-frying stop,quick anti-
explosion,slow anti-explosion.
if we need to adjust "E point".please follow
below steps
：
1. turn knob "ENTER",when light move to
"E POINT";
2. pressing"Enter",you can see no."1"in
a flicker situation,then turn"Enter"to
change between steering servo and
throttle servo;pressing "end" to change
to 100% to reach adjustment of swing
range;pressing"ENTER"again to quit
operation.

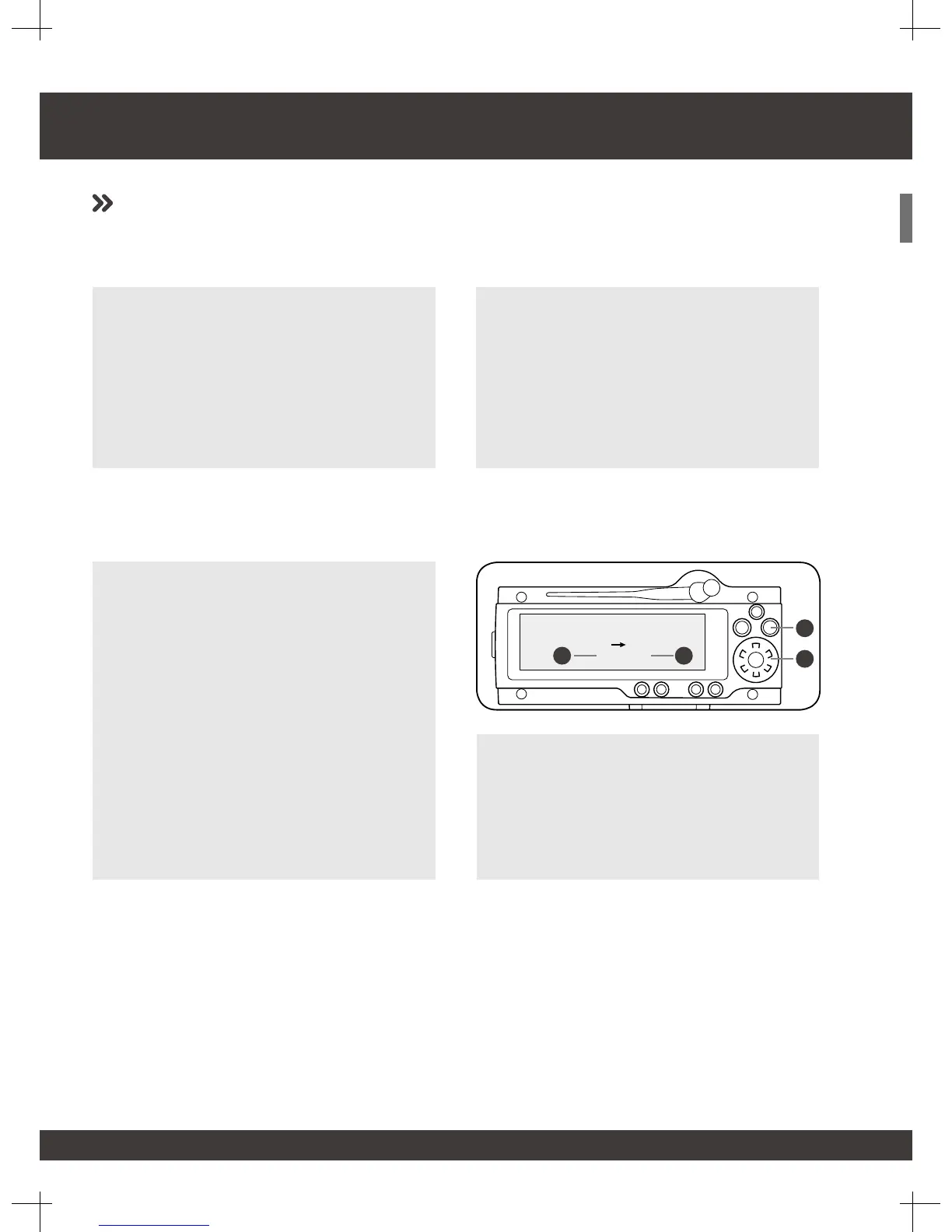

1. END
2. ENTER
3. “1”means steering servo and“2”means throttle servo.
4. Range and direction of servo are controlled by arrow
on the number.
1
3 4
2
1 100%
