ENGINE K SERIES 1.8 VVC
Technical Academy
01-34-RG-W-Ver:1 Page 21 of 28

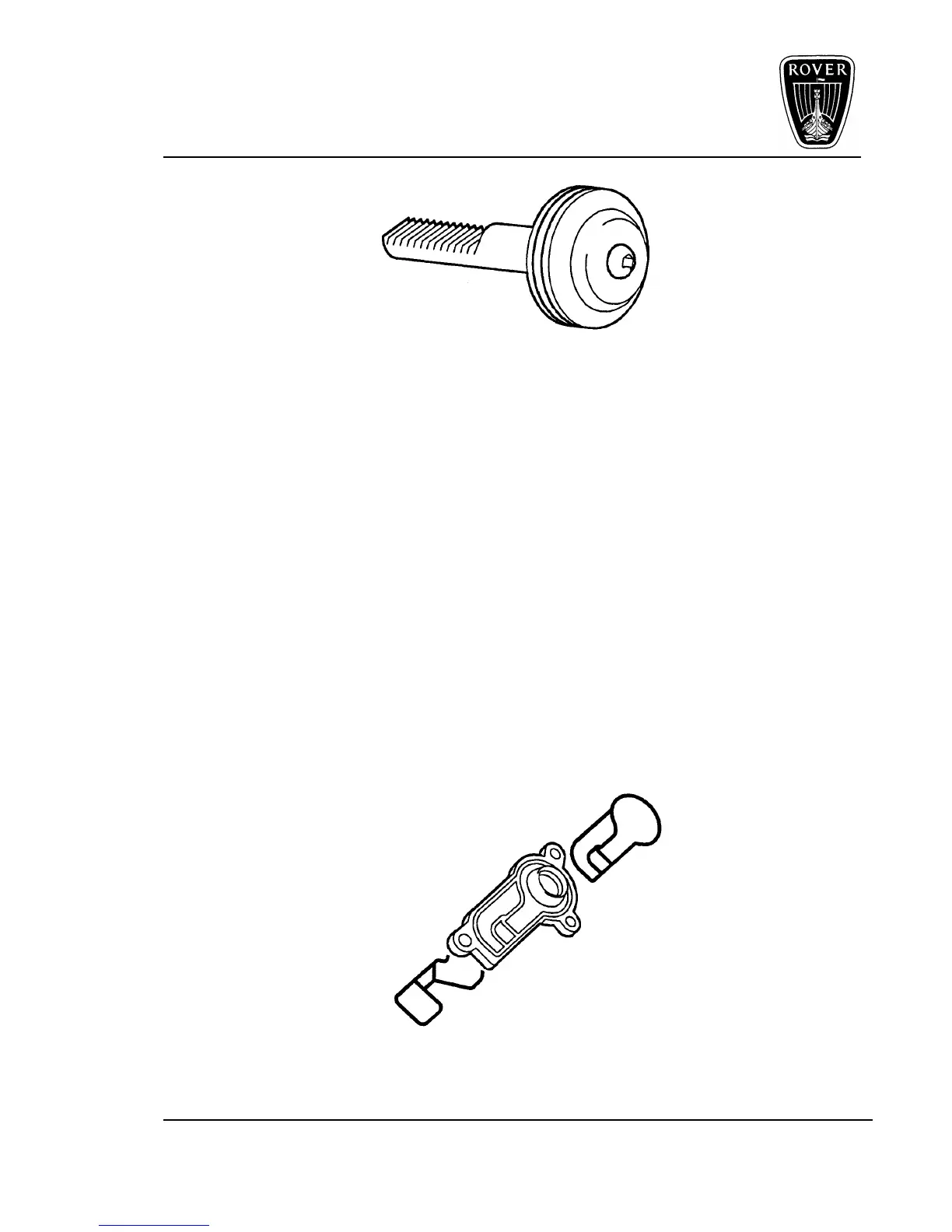

Figure 22
Thoroughly inspect all components:
• Piston bore and spool valve bore for scoring or corrosion. If heavy scoring or corrosion
is apparent, the HCU will have to be replaced.
NOTE: Light scoring and corrosion may be removed using 600 grade wet or dry paper,
soaking the paper in engine oil for at least 30 minutes.
• Check the piston for scores and rack teeth for wear, replacing the HCU if either are
evident.
• Check the control shaft gear teeth for wear or chipped teeth and renew if either are
evident
• Make sure the oil drillings in the spool valve are clear of restrictions.
Prior to reassembly of the HCU, thoroughly clean all components and dry with compressed
air.
• Lubricate new labrynth seals with engine oil, then using fingers only, fit seals to each
side of the seal plate, making sure the seals are located beneath the retaining lugs.
Figure 23
