INFORMATION
LIFTING AND TOWING 1
JACKING, SUPPORTING AND TOWING

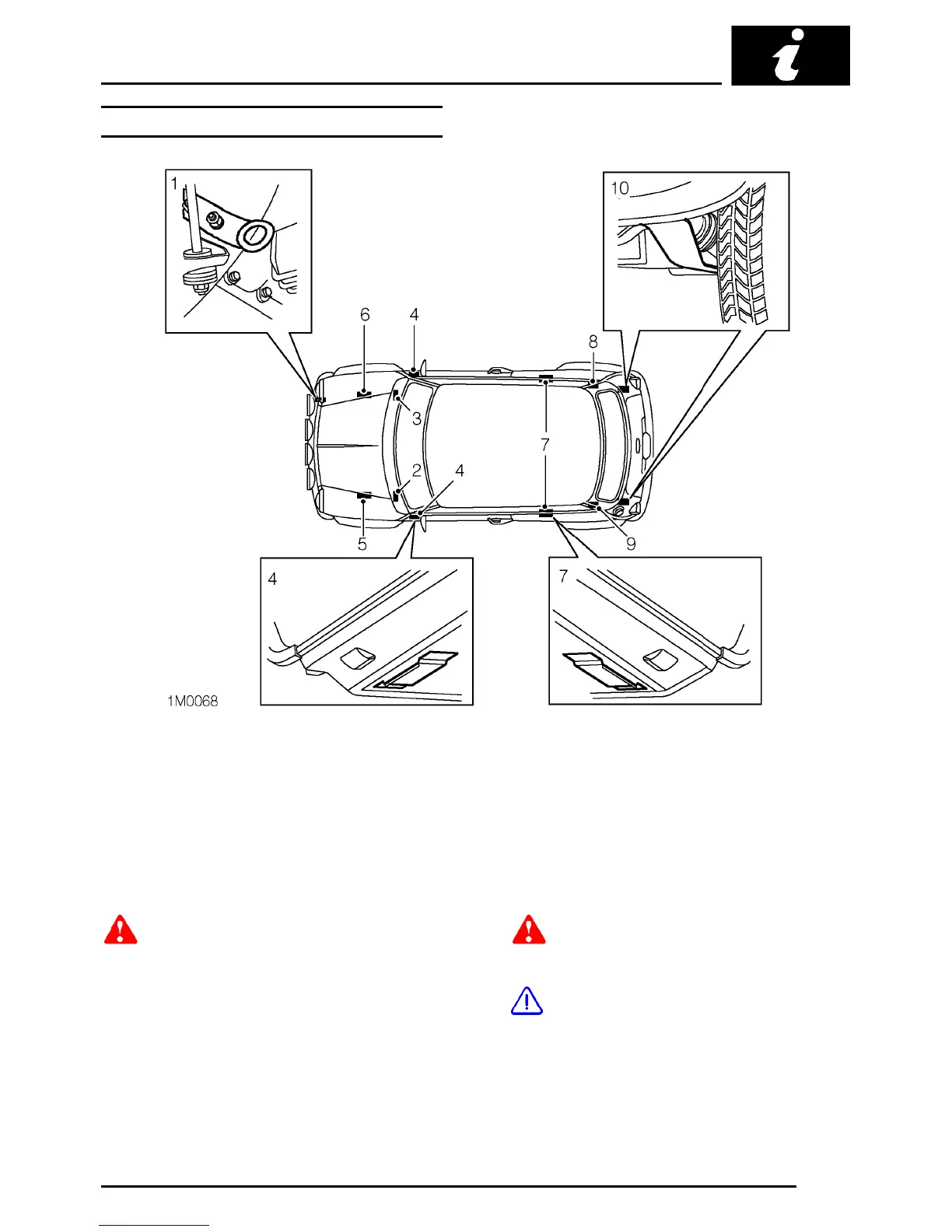

Jacking and support points
1. Lashing/towing eye - front
2. LH floor front reinforcement
3. RH floor front reinforcement
4. Sill reinforced brackets - front
5. LH subframe longitudinal - front
6. RH subframe longitudinal - front
7. Sill reinforced brackets - rear
8. RH subframe longitudinal - rear
9. LH subframe longitudinal - rear
10. Lashing eye - rear
WARNING: In accordance with normal
workshop practice and to avoid the
possibility of damage or personal injury,
work must not be carried out on or under a
vehicle when it is supported solely on a jack.
Place safety supports under the sill reinforced
brackets (4 and 7).
WARNING: Do not position a jack, jack
stand or wheel free support under the
subframe transverse members.
CAUTION: Use suitable hardwood or
rubber pads when jacking and supporting
the vehicle.
