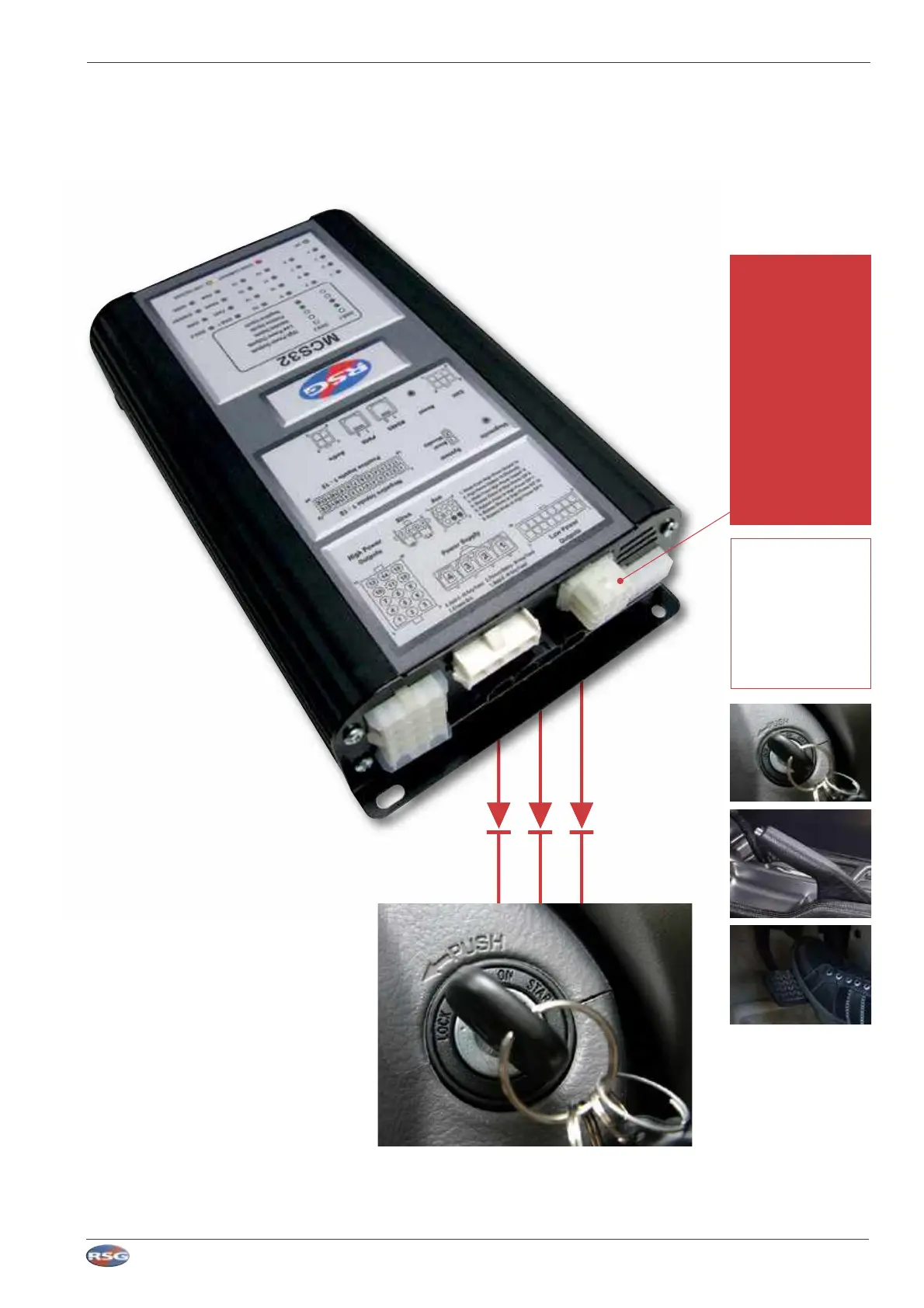

3 Circuit
Run Lock
• Outputs - 3 Dedicated
run lock outputs (2 with
diodes), additional outputs
assigned from software
• Enable inputs - Inputs
assigned in software
from handset, handbrake,
remote buttons etc, high
or low inputs
• Reset inputs - Inputs
assigned in software
from brake light, remote
buttons etc, high or low
inputs
Run Lock operating
parameters can be
set-up and defined in the
‘Run Lock User Interface
Module’ that is within
the Installer Program
- see Section K.
