RSG Engineering Limited Telephone : 01543 438800 Fax : 01543 438801 Email : sales@rsg-ontop.com Web : www.rsg-ontop.com
1:3
UNIVERSAL CONTROLLER PLUS (MCS-32) USER GUIDE V3 C : COMPATIBLE SWITCH UNITS

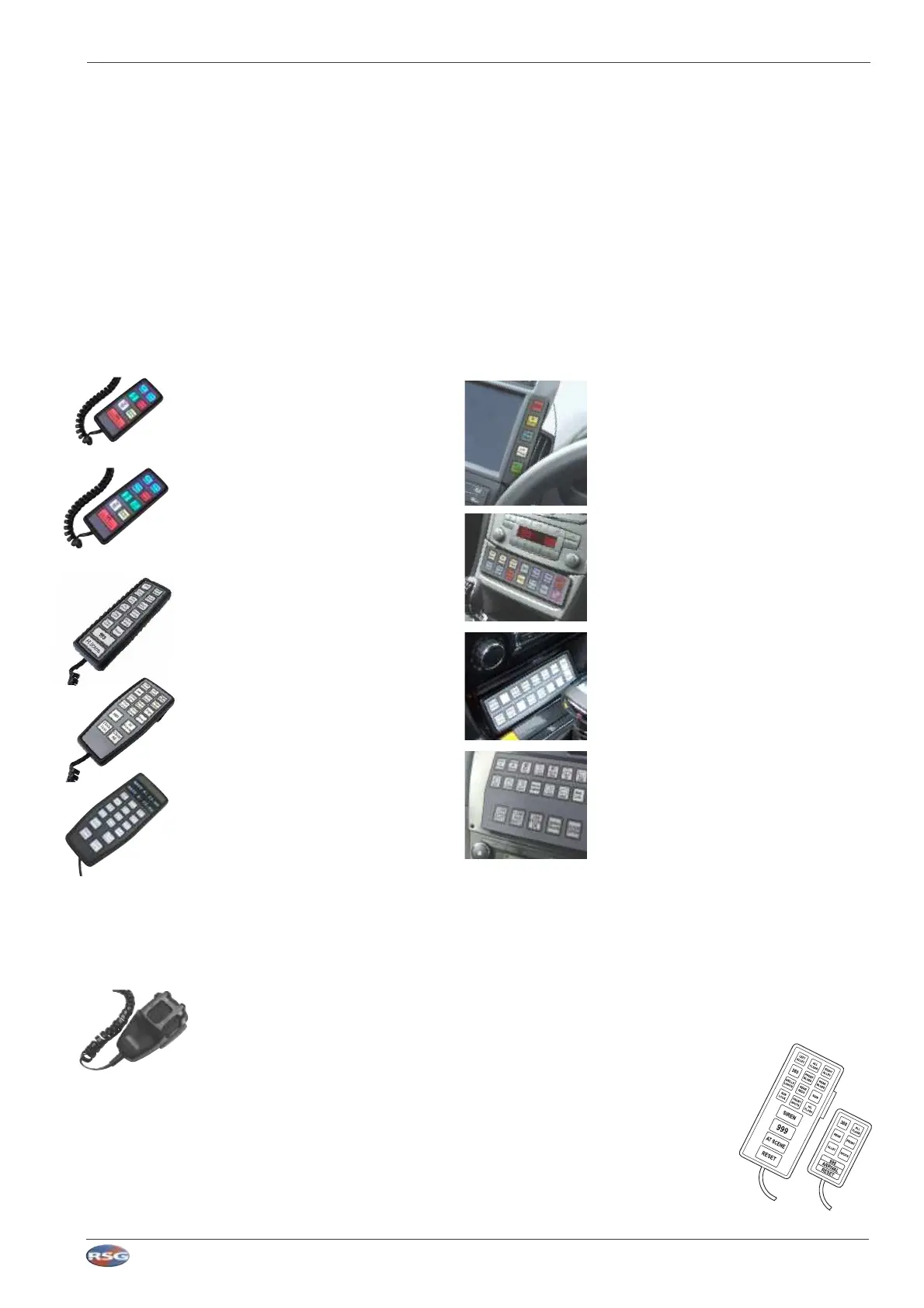

C : Compatible Switch Units
Universal Multi-Way Switch Units
A range of Universal Multi-Way handsets and switch units have been developed for use with the Universal Controller Plus (MCS-32). An extension
lead is plugged in to the RS485 port an approriate adaptor is added and the handsets simply plugs in.
Each button can operate independently or in conjunction with other buttons, as well as having unique legends and back light colour, therefore each
device would need to be uniquely configured. A configuration specification sheet is available which allows you to initially define the solution required
along with the associated handset which will depend upon the level of control necessary.
Details of the operation and customisation of the Universal Multi-Way handsets are explained later in this manual or alternatively contact our sales
team to verify that the handset you wish to use can be accommodated.
Universal Hand Held Microphones
Dynamic, hand-held communications devices that offer extremely low sensitivity to hum pick-up and low susceptibility to radio frequency interference
and is supplied complete with a 1m curly cord which extends up to 3 metres.
The microphone can be used as a stand-alone unit or in conjunction with a Universal Multi-Way handset
Alternative PWM Handsets
The ‘Standard Factory Set-up’ software with the Universal Controller PLus (MCS-32) allows compatibility with certain alternative
PWM handsets.
As there are many types of handsets/keypads available due to variations in legends and switch actions it is likely that
some configuration of the Universal Controller Plus (MCS-32) would be required. In most cases this would be achieved via
the built-in programming interface.
Description: Dynamic, hand-held communications devices designed for use as a stand-alone device or in conjunction with a
Universal Multi-Way handset.
Part Numbers: UNI-MIC-005
Mini Handset (MCS-T8)
Description: Universal Multi-Way Handset with 7
or 8 buttons as standard. Optional built-in PTT.
Part Number: UNI-MIN-XXX
Midi Handset (MCS-T10)
Description: Universal Multi-Way Handset with 8,
9 or 10 buttons as standard. Optional built-in PTT.
Also available with quick fit rubber shroud.
Part Number: UNI-MID-XXX
Slimline Flush Fit Switch Unit (MCS-F5)
Description: Universal Multi-Way Switch Unit
with 5 small or 5 small and one large button
as standard.
Also available with optional quick fit rubber shroud.
Part Number: UNI-SLM-XXX
Maxi DIN/Flush Fit Switch Unit (MCS-F14)
Description: Universal Multi-Way Switch Unit with
13 or 14 buttons as standard.
Part Number: UNI-MAX-XXX
MaxiPlus DIN/Flush Fit Switch Unit
(MCS-F16)
Description: Universal Multi-Way Switch Unit with
13 or 14 buttons as standard.
Part Number: UNI-MXF-XXX
Mega20 Flush Fit Switch Panel (MCS-F21)
Description: Universal Multi-Way Switch Panel
with 20 buttons.
This unit was custom designed specifically for
use in a Skoda Scout.
Part Number: UNI-MUL-XXX
MaxiPlus Handset (MCS-T16)
Description: Universal Multi-Way Handset with 14,
15 or 16 buttons as standard. Optional built-in PTT.
Part Number: UNI-MXH-XXX
Universal Handset Plus (MCS-T17)
Description: Universal Multi-Way Handset with 16
buttons in total. Optional PTT side grab switch.
Part Number: UNI-HAP-XXX
Universal Display Handset (MCS-G17)
Description: Universal Multi-Way Handset with 16
buttons in incorporatin real-time primary and
secondary battery voltage levels.
Part Number: UNI-DIS-XXX
