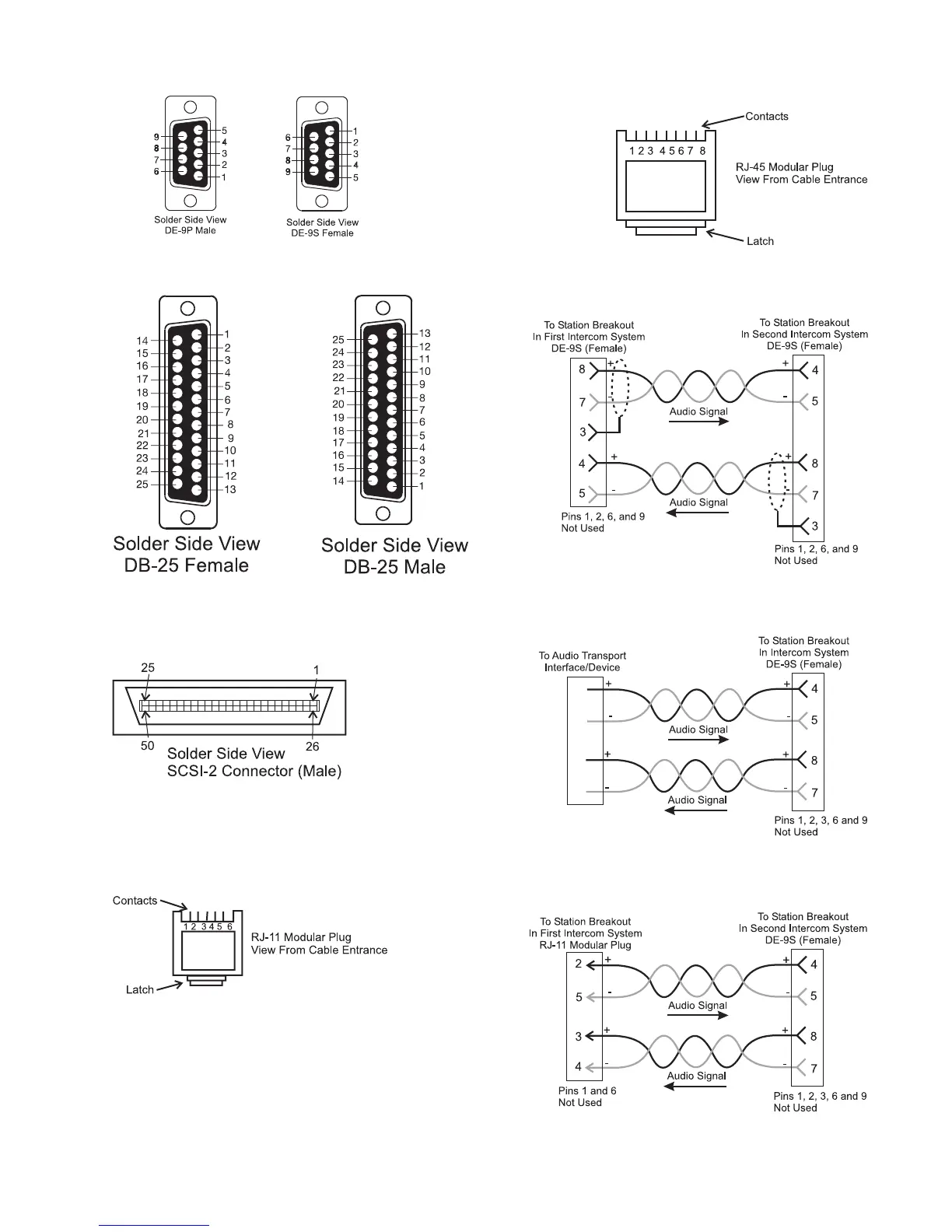

Figure 12. 9-pin D-sub connector pintouts.
Figure 13. 25-pin D-sub connector pinout
Figure 14. 50-pin SCSI type II connector pinout
Figure 15. RJ-11 connector pinout.
Figure 16. RJ-45 Connector pinout.
Figure 17. DE-9S to DE-9S audio cable
Figure 18. DE-9s to unspecified device audio cable.
Figure 19. RJ-11 to DE-9S audio cable.
