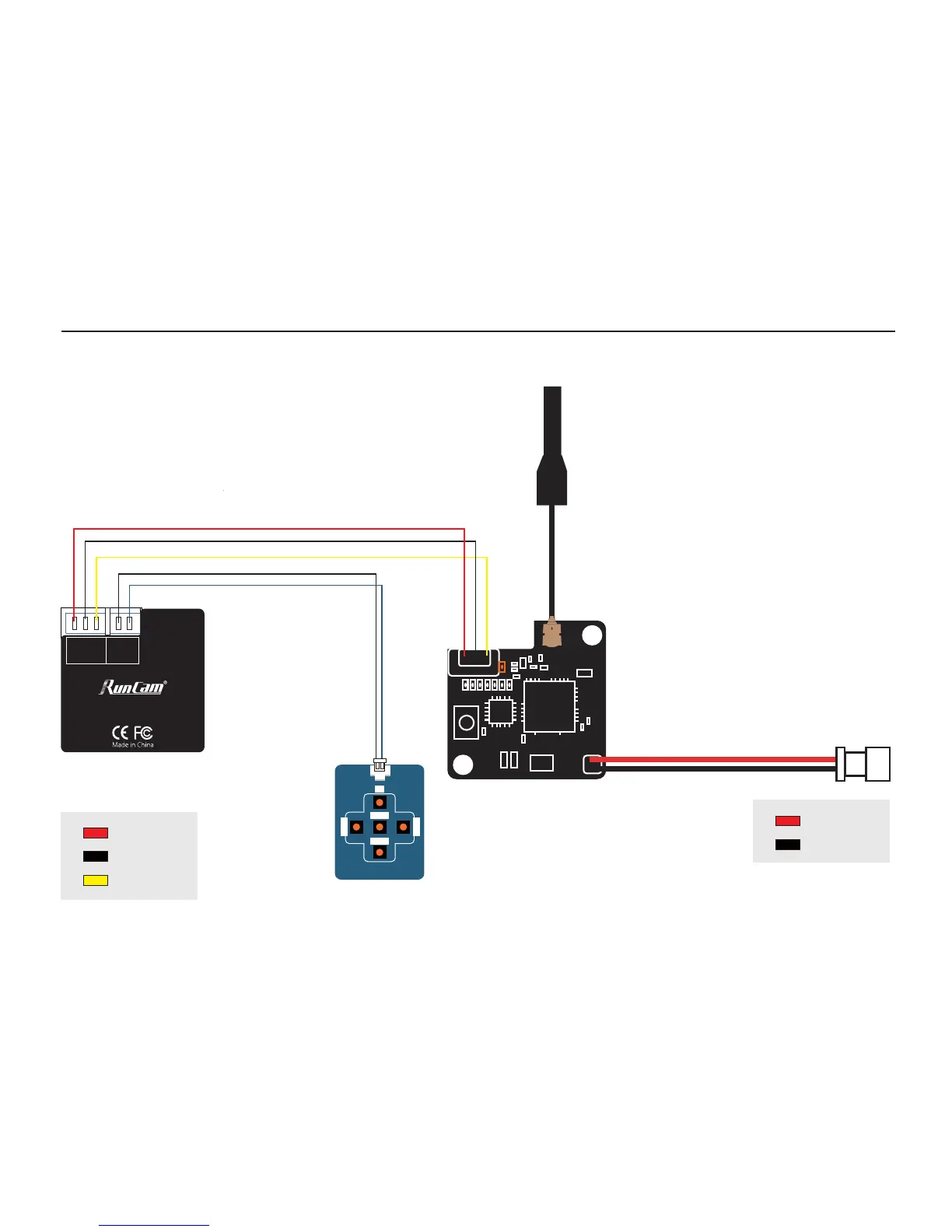

Connection
* Unplug the 5D-OSD menu cable after OSD setting.
5-36v in
GND
Video out
3.5-5.5v in
GND
RunCam TX200
Model: Micro Eagle
GND
Menu
5-36V
GND
Video
1x OSD Key-press Board
RIGHT
LEFT
UP
ENTER
DOWN
