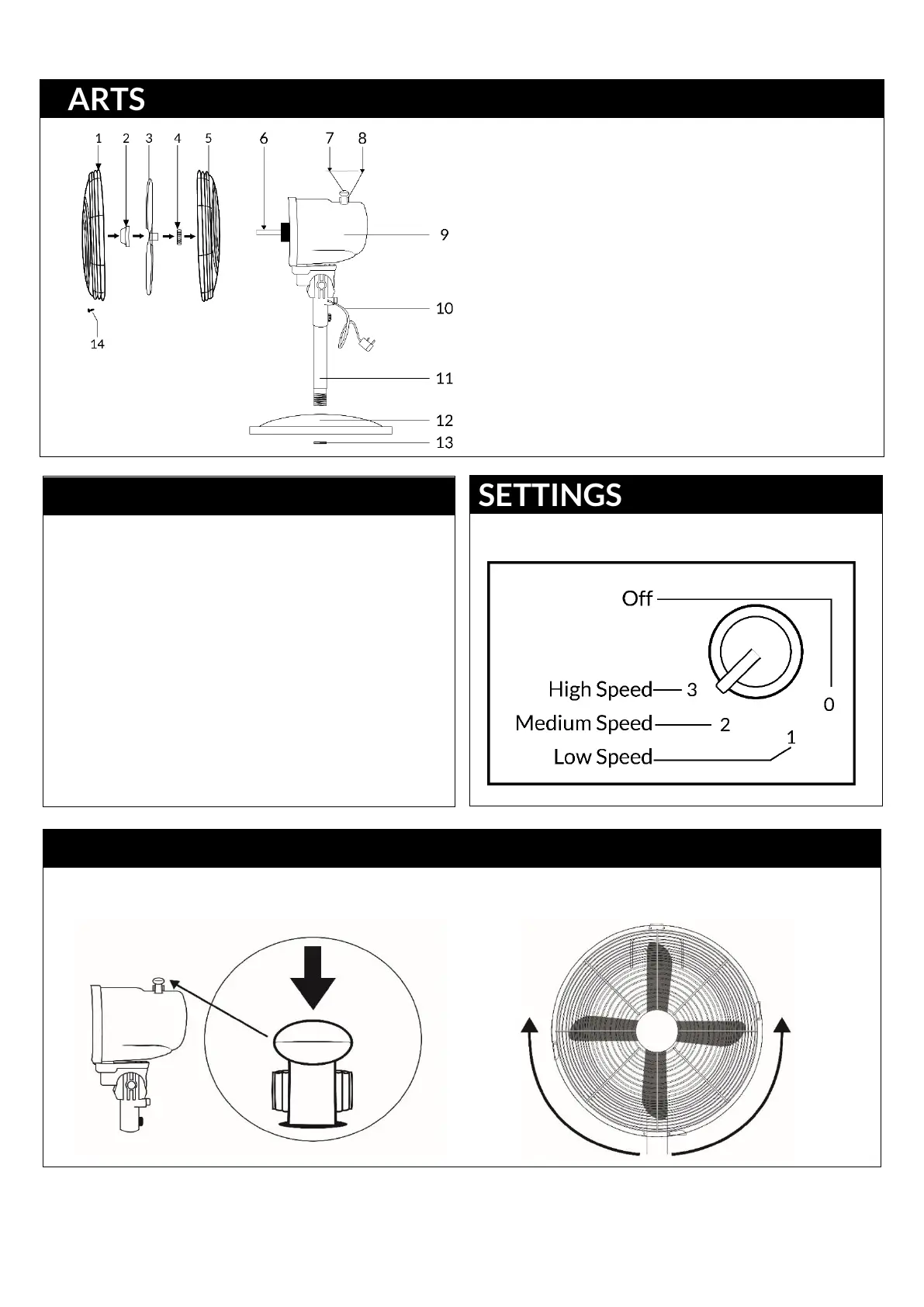

1. Front Grille
2. Fan Blade Securing Cap
3. Fan Blade
4. Rear Grille Securing Nut
5. Rear Grille
6. Fan Blade Fixing Point
7. Oscillation Switch
8. Speed Adjustment Dial
9. Motor Housing
10. Power Cord & Plug
11. Stand Pole
12. Fan Base Plate
13. Base Plate Securing Nut
14. Grille Securing Screw
1. Thread the Stand Pole [11] through the Base
Plate [12] and secure with the Nut [13]
2. Place Rear Grille [5] on Motor Housing [9]
aligning with rear posts, and secure with Nut
[4]
3. Attach Fan Blade [3] onto Fixing Point [6]
and secure with Cap [2]
4. Clip Front Grille [1] onto Rear Grille [5] using
attached clips, and screw in Securing Screw
[14]. Screw Hole on the Front Grille should
be on the bottom.
