Ryobi CSB133L - TO BEVEL CUT

18
OPERATION
WARNING:
Attempting a bevel cut without having the bevel ad-
justment knob securely tightened can result in serious
injury.
TO BEVEL CUT

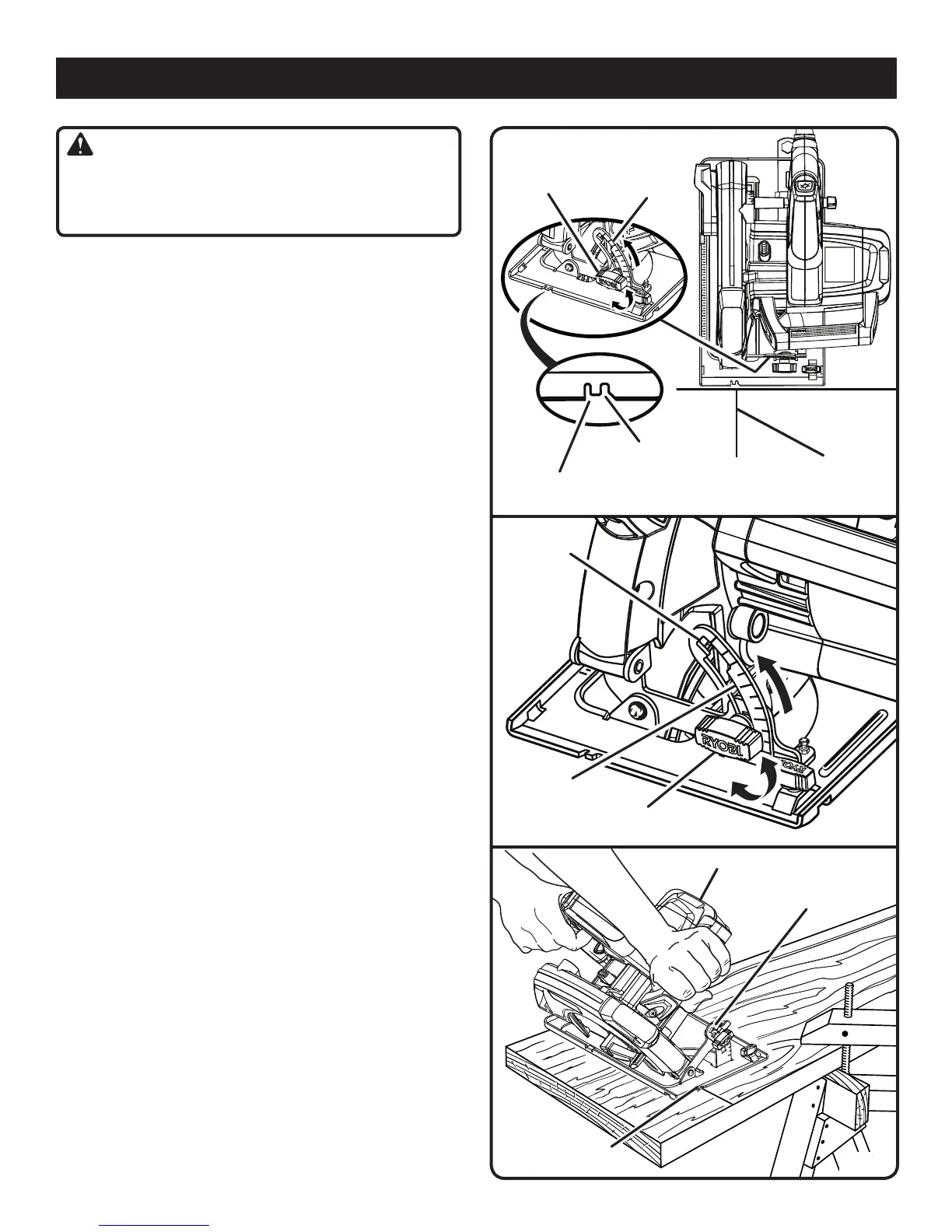

See Figure 21.
Hold the saw firmly with both hands as shown.
Rest the front edge of the base on the workpiece.
Start the saw and let the blade reach full speed.
Guide the saw into the workpiece and make the cut.
Release the switch trigger and allow the blade to come
to a complete stop.
Lift the saw from the workpiece.
Fig. 19
Fig. 20
15
30
51.5
45
BeVeL
aDJUSTMeNT KNOB
51.5° BeVeL
NOTCH
BeVeL
SCaLe
0
1
2
3
BeVeL
SCaLe
BeVeL
aDJUSTMeNT
KNOB
GUIDeLINe
51.5
15
30
45
90° BLaDe
GUIDe NOTCH
45° BLaDe
GUIDe NOTCH
Fig. 21
BLaDe GUIDe
NOTCH
MOTOr HOUSING
BeVeL SCaLe
