Ryobi CSB133L - 0° BEVEL STOP

20

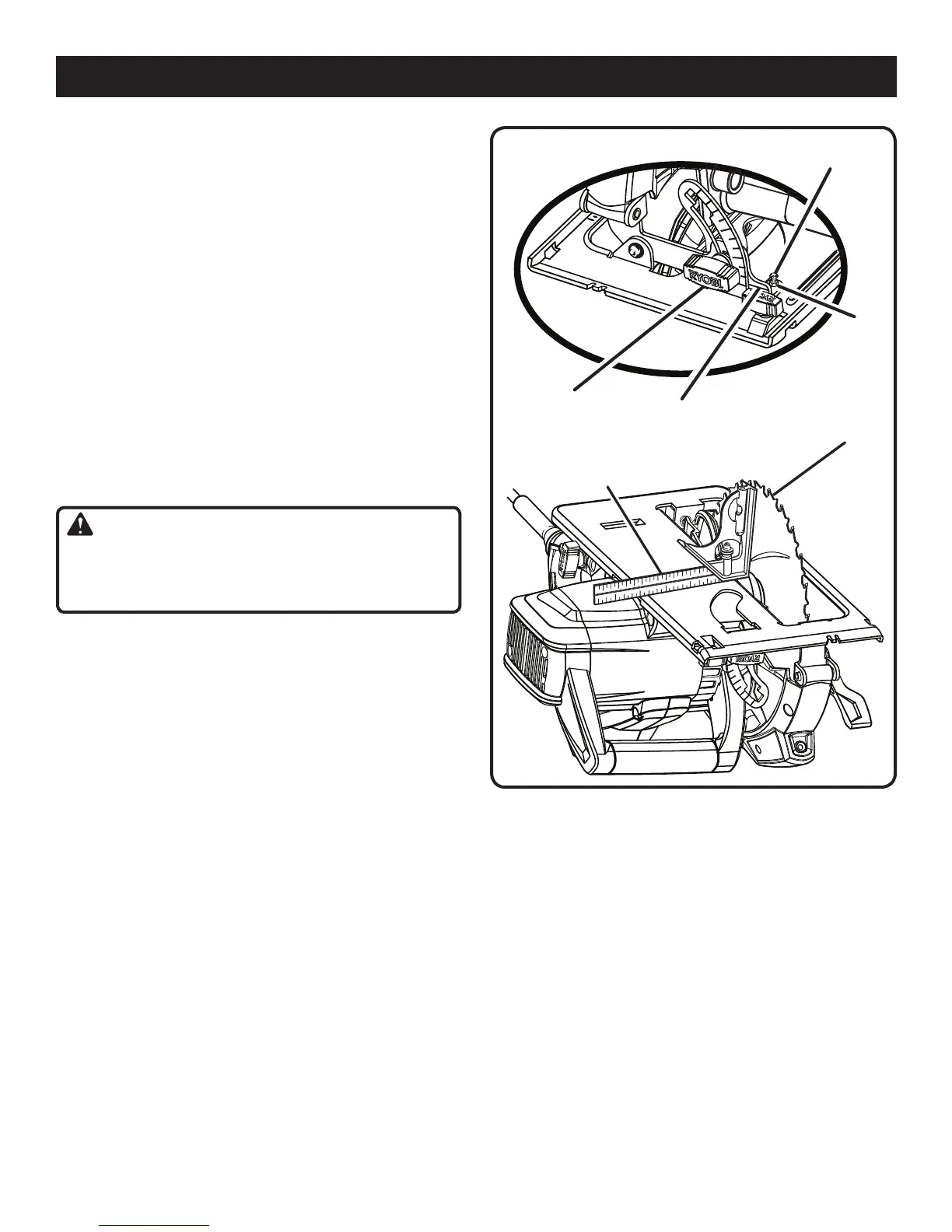

Fig. 23
BeVeL
aDJUSTMeNT
KNOB
BLaDe
COMBINaTION
SQUare
aDJUSTING
SCrew
Hex NUT
0° BeVeL STOP
51.5
15
30
45
OPERATION
0° BEVEL STOP
See Figure 23.
The saw has a 0° bevel stop that has been factory adjusted to
assure 0° angle of the saw blade when making 90° cuts.
To check 0° bevel stop:
Unplug the saw.
Place the saw in an upside down position on a work-
bench.
Check the squareness of the saw blade plate to the base
of the saw using a combination square.
To adjust 0° bevel stop:
Unplug the saw.
Loosen bevel adjustment knob.
Loosen hex nut securing adjusting screw.
Turn screw and adjust base until square with saw
blade.
Tighten hex nut and bevel adjustment knob securely.
WARNING:
Attempting a bevel cut without having the bevel
adjustment knob securely tightened can result in seri-
ous injury.
