Outside routing
See Figure 31
1. Place your workpiece on the tabletop relative to the
router bit.
2. Feed your workpiece through the bit in the direction of
the arrow. Always feed against the router bit’s direction
of rotation.

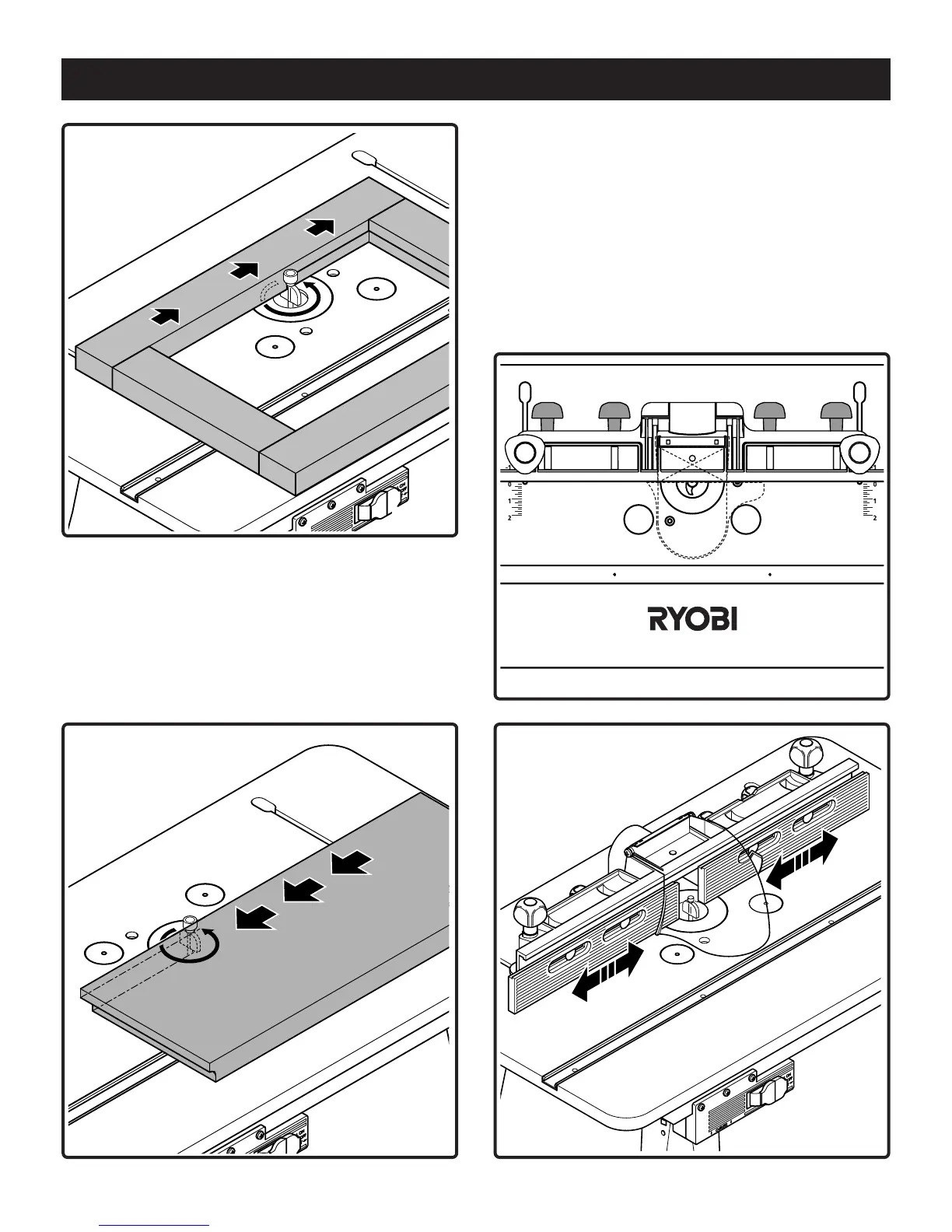

Fig. 30
Fig. 31
Using adjustable fences
See Figure 32 and 33
The fence slides can be positioned closer to the router bit
to provide better support of the workpiece.
To reposition the fence slides:
1. Loosen the 4 knobs (see Figure 32).
2. Reposition fence slides closer to the router bit. Leave a
3/16" gap (see Figure 33).
3. Tighten the 4 knobs securely (see Figure 32).
NOTE: DO NOT let the fence slides touch the router bit.
Fig. 32
Fig. 33
