FEATURES
See fig. 10.
For safety, read and understand the
information on the product and in this manual.
Familiarise all operating features and safety
rules before using the product.
BATTERY LEVEL INDICATOR / HOUR METER
The battery level indicator shows the amount
of battery charge remaining. The hour meter
tracks the total number of hours the product
has been used (key in on position) for
maintenance purposes.
BLADE ENGAGE KNOB
The blade engage knob activates or stops the
cutting blades.
Pull up the blade engage knob to activate the
cutting blades.
Push down the knob to stop the cutting blades.
The blades should stop within 5 seconds. If
the blades do not stop, contact an authorised
service centre.

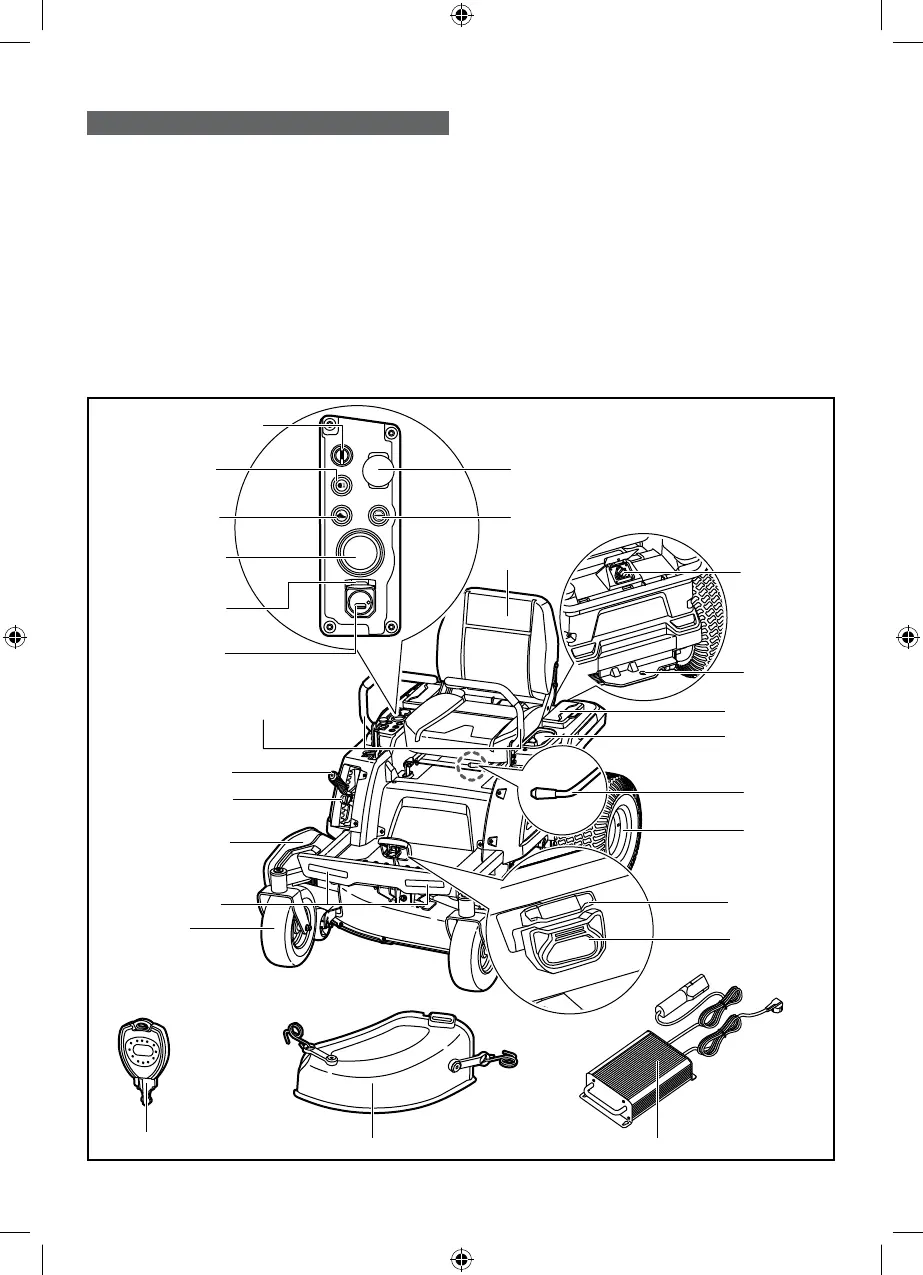

Fig 10
Blade engage knob
Seat
Cup holder
Rear Tyres
Low-Speed drive
button
Drive levers
Auto-Stop plug
+HDGOLJKWEXWWRQ
USB port cover
Battery level indicator
KRXUPHWHU
Deck height
DGMXVWPHQWOHYHU
Brake pedal
Charger
6HDWDGMXVWPHQWOHYHU
Mulch cover
Charging port
+LWFKSODWH
Parking brake
+HDGOLJKWV
Media holder
Start key
Power switch with start key
USB port
Side discharge chute
Front tyres
Low-speed cut button
