30 Safety

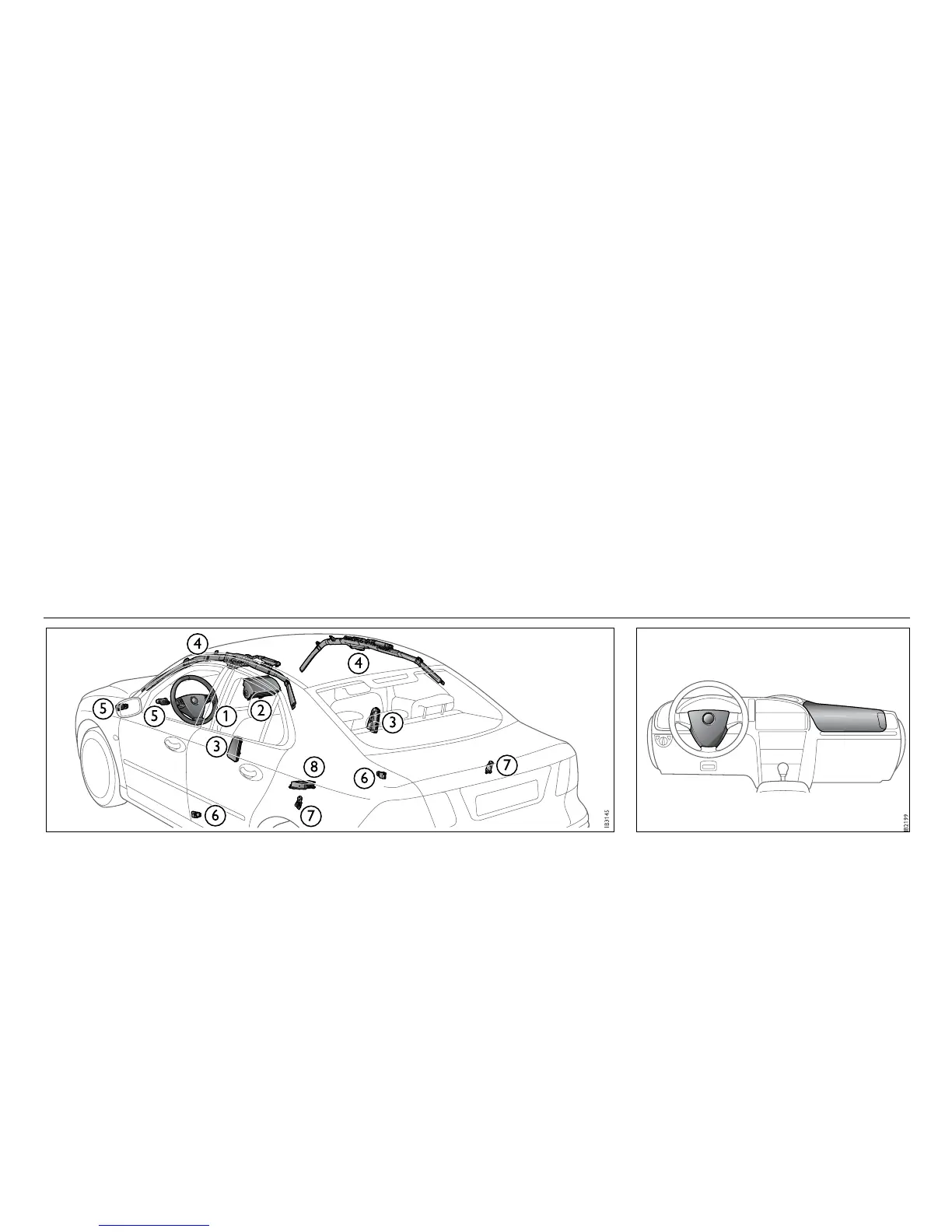

Airbag system
1 Steering wheel with integral airbag
2 Passenger airbag
3 Side airbag
4 Inflatable curtain (Sport Sedan only)
5 Sensors in front bumper
6 Sensor, side-impact protection
7 Sensor, side-impact protection (Sport Sedan only)
8 Electronic control module and central sensor (SDM)
Accessories and other equipment must
not be fitted to the surfaces marked as
these are where the airbags inflate in the
event of a crash.
