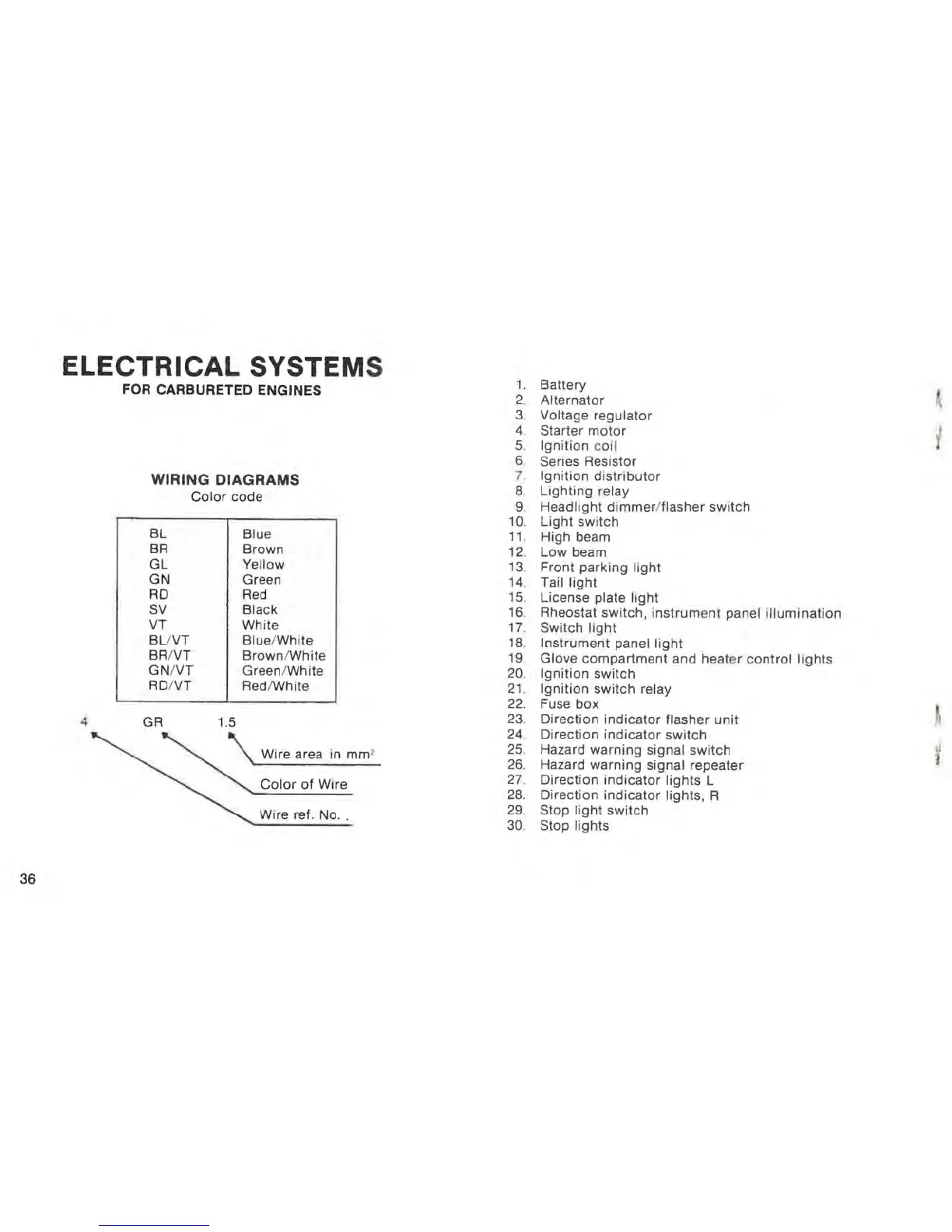

ELECTRICAL SYSTEMS
4
FOR CARBURETED ENGINES
WIRING DIAGRAMS
Color code
BL
BR
GL
GN
RD
SV
VT
BUVT
BRIVT
GNIVT
RDIVT
GR 1.5
Blue
Brown
Yellow
Green
Red
Black
White
Blue/White
Brown/White
Green/White
RedlWhite
\ Wire area in mm
2
Color of Wire
Wire ref. No . .
1. Battery
2. Alternator
3.
Voltage regulator
4 Starter motor
5. Ignition coil
6 Series Resistor
7
Ignition distributor
8. Lighting relay
9. Headlight dimmer/flasher switch
10 . Light switch
11 . High beam
12. Low beam
13 Front parking light
14. Taillight
15. License plate light
16. Rheostat switch, instrument panel i llumination
17. Switch light
18. Instrument panel light
19. Glove compartment and heater control lights
20 . Ignition switch
21 . Ignition switch relay
22. Fuse box
23 . Direction indicator flasher unit
24. Direction indicator switch
25 . Hazard warning signal switch
26 . Hazard warning signal repeater
27 . Direction indicator lights L
28. Direction indicator lights, R
29 . Stop light switch
30 . Stop lights
