Sachs SA 280A Repair Instructions

Fi!J. 55

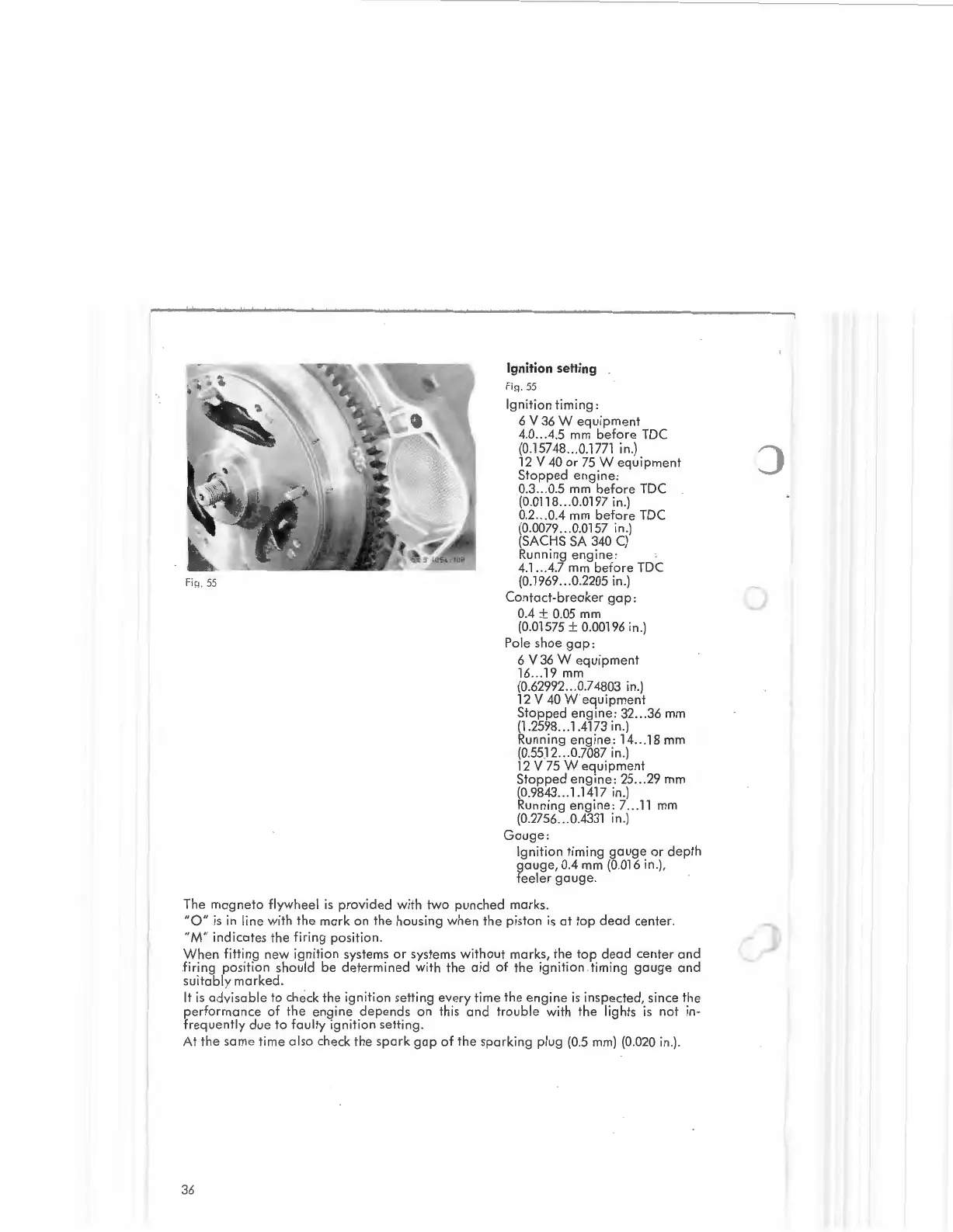

Ignition setting
Fig. 55
Igni tion timing:
6 V 36 W equipment
4.0 .. .4.5 mm before TDC
(0.15748 ... 0.1771 in.)
12 V 40 or 75 W equipment
Stopp ed engine:
0.3 ... 0.5 mm before TDC
(0.0118 ... 0.0197 in.)
0.2 ... 0.4 mm before TDC
(0.0079 ... 0.0157 in.)
(SACHS SA
340 C)
Running engi ne:
4.1 ... 4.7 mm before TDC
(0.1969 ... 0.2205 in.)
Contact-breaker gap:
0.4 ± 0.05 mm
(0.01575 ± 0.00196 in .)
Pole shoe
gap :
6 V 36 W equipment
16 ... 19 mm
(0.62992 ... 0.74803 in.)
12 V 40 W eq uipm ent
Stopped engine: 32 ... 36 mm
(1.2598 ... 1.4173 in.)
Running en
gine: 14 ... 18 mm
(0.55.12 ... 0.7087 in .)
12 V 75 W equipment
Stopped engine: 25 . .. 29 mm
(0 .9843 ... 1.1417 in .)
Running
engine: 7 ... 11 mm
(0 .2756 .. . 0.4331 in.)
Gauge:
Ignition timing gauge or depth
gauge, 0.4 mm (0.016 in. ),
feeler gauge.
The magneto flywheel is provided with two punched mark s.
"0" is in lin e with the mark on th e housing when the piston is at top dead center.
"M" indicat es the firing position. ~
When fitting new ignition systems or systems without marks, the t op dead cent er and \.J
firing position should be determined with the aid of the ignition . timing ga u ge and
suitably marked.
It is advisable to ch eck the i gnit i on setting every time the engine is inspected, since the
performance of the e ngine depends on this and trouble with the li ghts is not in-
frequently du e to f au l ty ignition setting.
At the sa me tim e also check th e spark gap of th e s parkin g plug (0.5 mm) (0 .020 in. ).
