5.3 – CYLINDER CM.11 (sold separately – code SG FLBATPLUSCY1)
The cylinder cm.11 is equipped with an 80 degree frost filter included, which can be optionally
used in addition to it, to make its lighting more uniform. This filter must be inserted before
inserting the cylinder
1. Place the 80 degree frost filter on the front glass and block it with the metal ring specific for
frost filters. This ring will remain stuck on the upper part of the projector thanks to 3 magnets
housed in the internal front part of the projector itself
2. Insert the cylinder by aligning the 3 grooves present on the connecting ring of the same,
with the relative teeth on the projector
3. As soon as the cylinder is inserted, rotate it clockwise about 5 degrees, so as to block the
grooves in the teeth. The rotation is considered completed when the connecting ring, and
therefore the cylinder, they block.
4. Insert the M4x8 locking knob to prevent accidental unlocking of the cylinder.
WARNING: the insertion of the M4x8 locking knob is mandatory, in order to prevent accidental
unlocking of the cylinder.

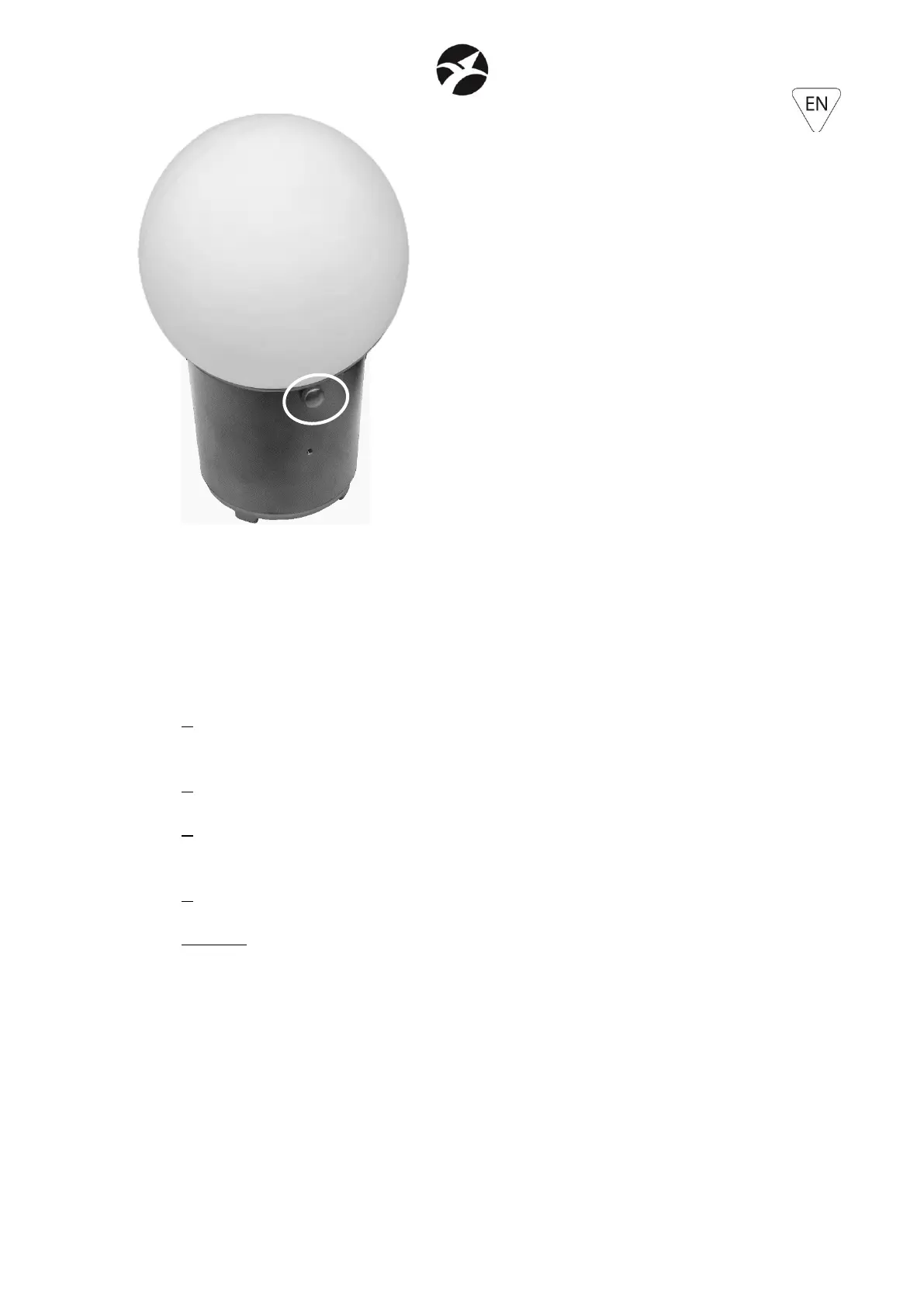

Sphere correctly installed, with M4x8
locking knob correctly fixed.
