ENGINE SPECIFICATIONS
ENGINE SPECIFICATIONS
FUEL CONSUMPTION
FA-90R3 25cc per minute (15% Nitro, 13x6 propeller, full throttle)
FA-170R3 45cc per minute (15% Nitro, 15x8 propeller, full throttle)
FA-200R3 46cc per minute (15% Nitro, 16x8 propeller, full throttle)
FA-325R5D 75cc per minute (10% Nitro, 20x8 propeller, full throttle)
FA-450R3D 60cc per minute (15% Nitro, 22x10 propeller, full throttle)

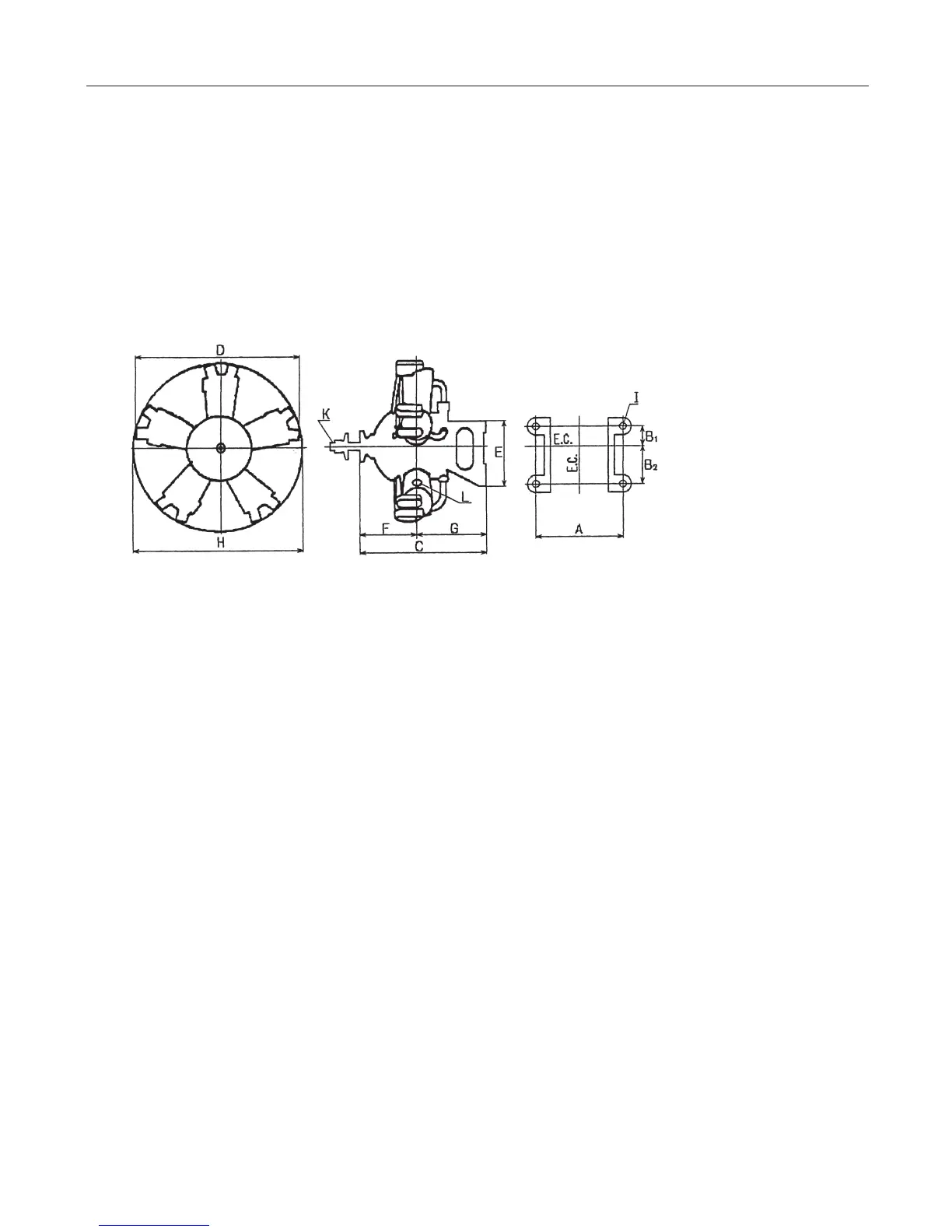

OUTSIDE DIMENSIONS (MM)
Items A B1 B2 C D E F G H I
FA90R3
50 20 38 129 156 58 60 69 168
ф
4.2
ф
FA170R3 94 25 49.5 155 186 74.5 77.5 79.5 198
ф
4.5
ф
FA200R3 94 25 49.5 155 186 74.5 77.5 79.5 198
ф
4.5
ф
FA325R5D 100 30 49 170 220 79 77 93 225
ф
5.2
ф
FA450R3D 110 30 49 200 237 79 100 100 250
ф
5.2
ф
SPECIFICATIONS
Items Displacement Bore Stroke Weight K Cyl HP EX.
cu. in. (mm) (mm) (oz) (ISO) Dia
FA90R3 0.9/15.9cc 20 16 29.8 M7x1 AAC 0.95 M9xP0.75
FA170R3 1.7/27.8cc 24.8 19.2 46 M8x1.25 AAC 2.5 M10xP1
FA200R3 2.0/33cc 27 19.2 48.5 M8x1.25 AAC 2.7 M10xP1
FA325R5D 3.25 24.8 22.0 84 M8x1.25 ABC 3.8 M12xP1
FA450R3D 4.5/75cc 34 27.6 99 M10x1.25 AAC 5.5 M14xP1
NOTE: The FA170R3 and FA450R3D have muffler inserts that allow use of short pipes (standard issue)
that are 14mm. For use of flexible mufflers,remove the adapter nut installed in the cylinder.
Note: Measure ments correlate with chart.
L=Dia. of Thread of Ex. Pipes.
I=Dia. of Fitting Holes.
PART TT KK Y HH
FA-90R3 FA-170R3 FA-200R3 FA-325R5D FA-450R3D
01 Cylinder, Left 90R301 56GK01B 200R301 325R5D01C 450R3D01
02 Cylinder, Right * * * * *
06 Piston 30S06 5606 200R306 6506A 150S06
07 Piston Pin 30S07 6507 91807 6507 150S07
08 Piston Pin Retainer 30S08 6508 8008 6508 300T08
09 Piston Ring 60T09 6509 8009 6509 300T09
10 Connecting Rod 90R310 170R310 170R310 325R510 450R3D10A
11 Linked Conrod 90R311 170R311 170R311 325R511 450R3D11
12 Conrod Link pin & "E" clips * 170R312A 170R312A 325R512 450R3D12B
12-1 Link rod Pin & washer 90R312-1 * * * *
12-2 "E" Ring 90R312-2 * * * *
12-2B Link Rod pin & washer * * * * 450R3D12-2B
12-3B "E" Ring * * * * 450R3D12-3B
13 Connecting Rod Screw * * * * *
14 Cylinder Screw Set 90R314 5014 5014 5514 120S14
15 Crankcase 90R315 170R315 200R315 325R515A 450R3D15
16 Front Shield * * * 325R516 *
17 Rear Cover (a) 90R317 170R317 200R317 325R517 450R3D17
18 Rear Cover (b) 90R318 170R318 170R318 * 450R3D18
19 Breather Nipple 6519 6519 6519 5019 6519
20 Front Ball Bearing 6520A 120S20A 120S20A 300T20A 450R3D20
21 Main Ball Bearing * 300T21 300T21 * *
22 Rear Ball Bearing 6522A * * 300T22 450R3D22
23 Crankshaft 90R323A 170R323A 170R323A 325R523A 450R3D23A
24 Pinion-crankshaft * * * * *
25 Pinion gear pin * * * * *
26 Collar, Crankshaft * * * 325R526 *
27 Taper Collet & drv flange 6527 120S27 120S27 300T27B 450R3D27
28 Prop washer & nut 5628 170R328A 170R328A 170R328A 450R3D28
29 Prop Nut, spinner * 120S29 120S29 120S29 *
30 Prop Nut, Electric starter 5030 120S30 120S30 120S30 *
31 Crankcase screw set 90R331 170R331 170R331 325R531 450R3D31
32 Engine Gasket Set 40a321 170R332 170R332 325R532 450R3D32A
33 Cam Gear Housing 40a33 170R333 170R333 * 300T33
34 Cam Gear, Left * * * 325R534 *
35 Cam Gear, Right 30S35 6535A 6535A * 120S35
36 Cam Gear Shaft 90R336A 170R336A 170R336A 325R536 5036A
37 Teflon & Steel washer set 30S37 120S37 120S37 325R537 120S37
38 Tappet 30S38 5038 5038 5038 120S38
39 Pushrod 90R339 170R339 170R339 325R539 450R3D39
40 Pushrod cvt & rubber seal 90R340 60T40 200R340 325R540 450R3D40
41 Rocker Arm 60T41 5041 5041 5041 120S41
42 Rocker Arm screw & nut 5042 60T42 5042 5042 120S42
43 Rocker Arm pin 30S43 5043 5043 5043 120S43
44 Rocker Arm Bracket, left * * * * 150S44
45 Rocker Arm Bracket, Rt * * * * 150S45
46 Valve (in&out) pair 30S46 5646 5646 325R546 120S46
47 Viv sprg, kpr & retainer 30S47 5047 5047 325R547 120S47
48 Valve Retainer 5048 5048 5048 5048 120S48
49 Rocker Arm Cover 30GK49 50GK49 50GK49 120S49
50 Cam Gear Base(a) * * * 325R550A *
51 Cam Gear Base(b) * * * 325R551 *
52 Counter Gear * * * 325R552 *
53 Counter Gear Shaft * * * 325R553 *
54 Cam Gear Base Strut * * * 325R554A *
55 Impeller Fan * * * * *
56 Crank, Impeller * * * * *
57 Ball Bearing, Impeller Axle * * * * *
58 E-clip, Impller Ball Bearing * * * * *
64 Pump Assembly * * * * *
65 Air Pump Housing * * * * *
66 Diaphragm & Check Viv st * * * * *
67 Diaphragm, pushrod Rtn Sp * * * * *
68 Check valve in/out (pair) * * * * *
69 Intake Manifold, Left 90R369 170R369 200R369 325R569 *
70 Intake Manifold, Right
* * * * *
71 Intake Manifold Nut * * * 325R571 *
72 Intake Manifold w/Primer * * * * *
721 Intake Manifold w/Primer (Left) 325R5721 *
722 Intake Manifold w/Primer (Right) 325R5722 *
73 Muffler, Left 90R373 170R373 182TD73 450R3D73
74 Mufller, Right w/press 90R374 170R374 182TD74A 450R3D74
16
