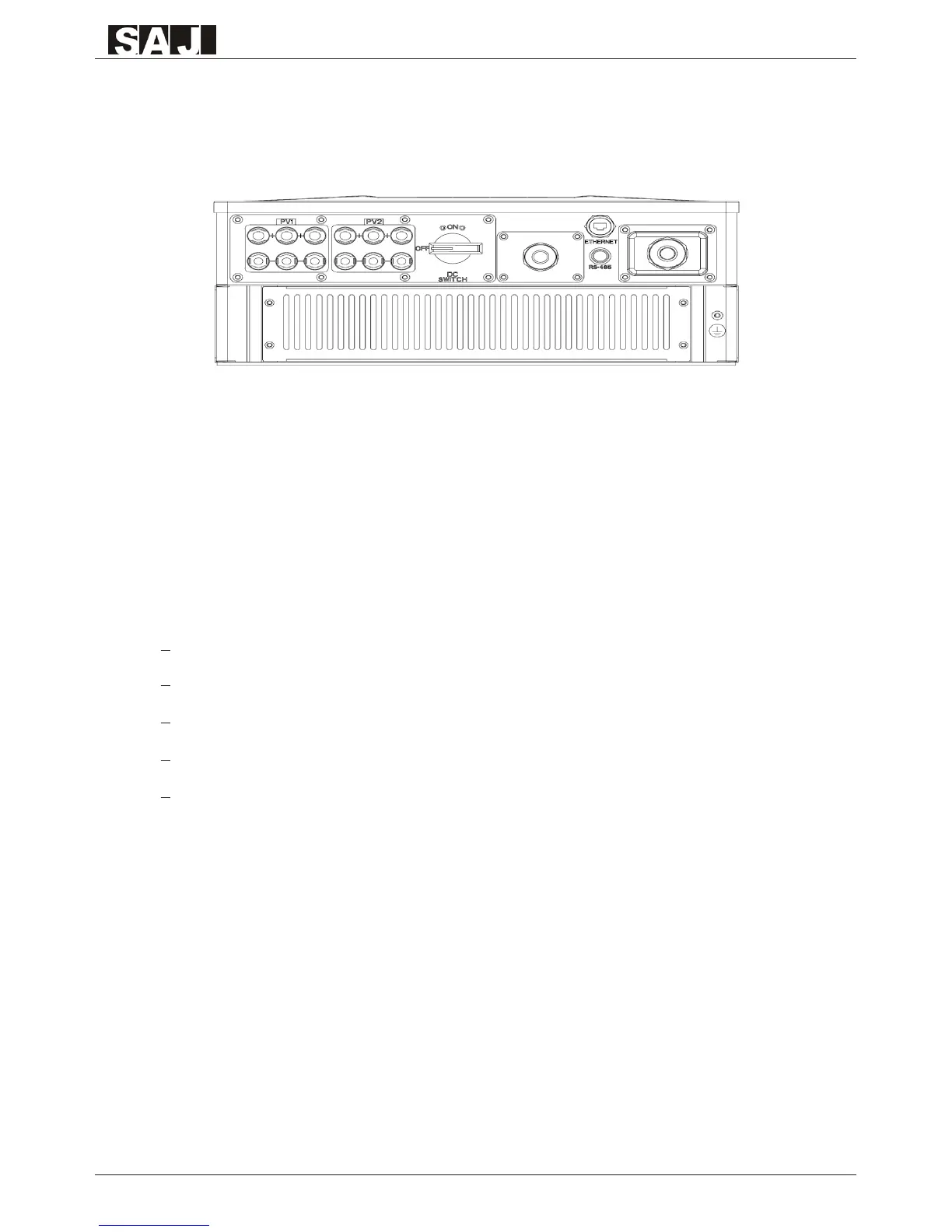

5.6 Connecting the PV Array (DC)
5.6.1 Conditions for DC Connection
NOTE:
Suntrio-TL6K/8K/10K/12K: Dual MPPT(PV1 and PV2), two DC input connection sets per
MPPT.
Suntrio-TL15K/17K/20K: Dual MPPT(PV1 and PV2), three DC input connection sets per
MPPT.
● For input area PV1 or PV2, The PV modules must meet the following requirements:
Same type
Same number of in-series-connected PV modules
Identical direction
Identical tilt
The open circuit voltage of each string should never exceed 1000VDC.
