SALICE F70 - F70 Fixing Clip Installation

97
95 min.
6
51 23
111
59 23
7
AFCGXX3B
Right and left clip with
integrated adjustments
PACKING
2 BOXES = 100 right pcs. and 100 left pcs.

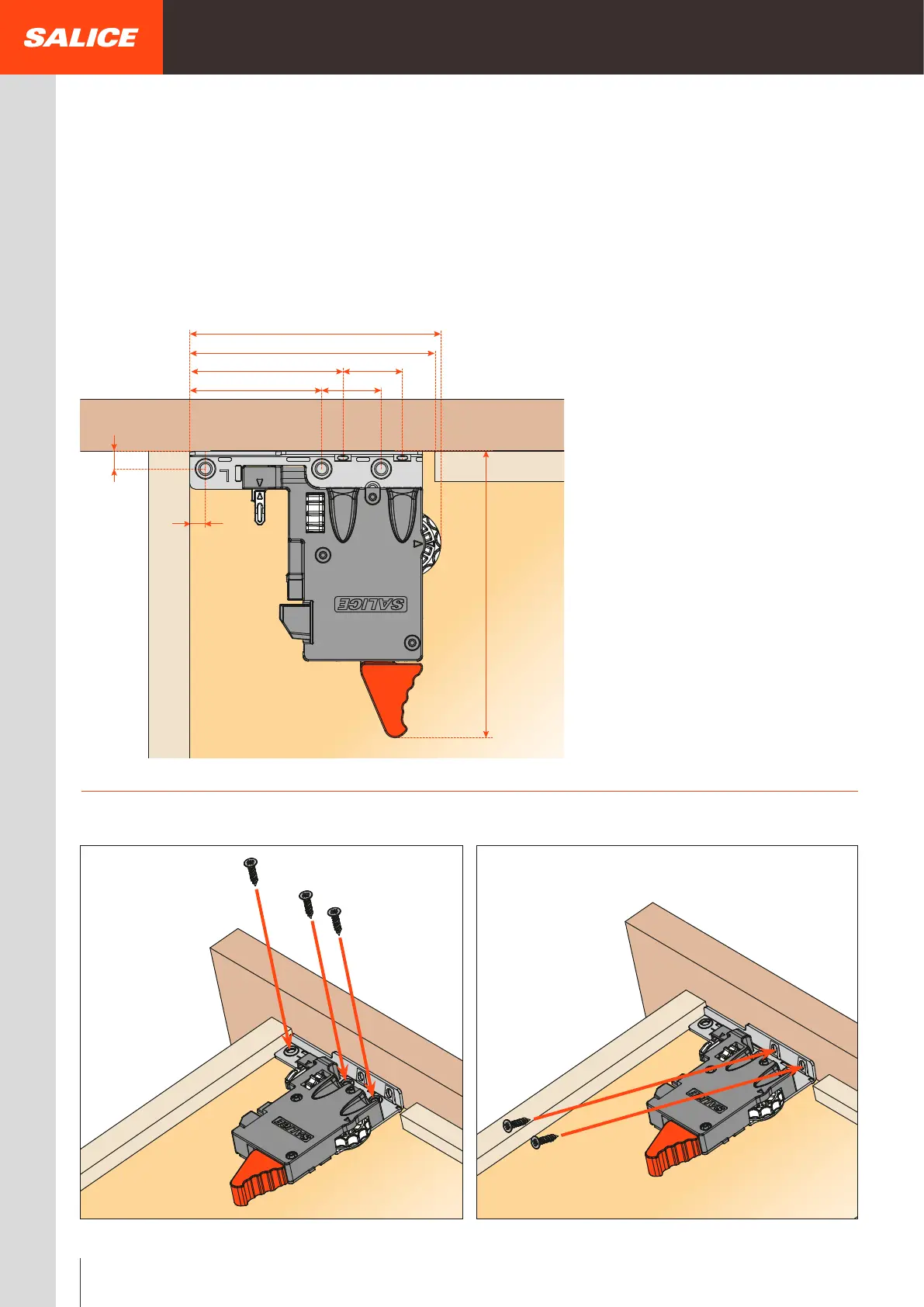

Dimension of the clip and drilling position
F70 - Fixing clip
- For all F70 runner versions
- Material: plastic and steel
- Integrated tool-free side and depth adjustments
- Recommended pre-drilling ø 2,5 mm
- Fixing to the bottom or to the frontal of the drawer
Fixing to the bottom of the drawer Fixing to the drawer frontal
It is recommended to pre-drill the bottom or the frontal using the SGD704UGXA drilling template, see page 35.
Fix with the screws,
as indicated
(recommended screws
ø 4 x 16 mm)
Fix with the screws,
as indicated
(recommended screws
ø 4 x 16 mm)
14
