SALICE F70 - Tilt Adjustment (+ 3 mm); Optional Tilt Adjustment Lever Assembly

+ 3 mm
2
1
2
1

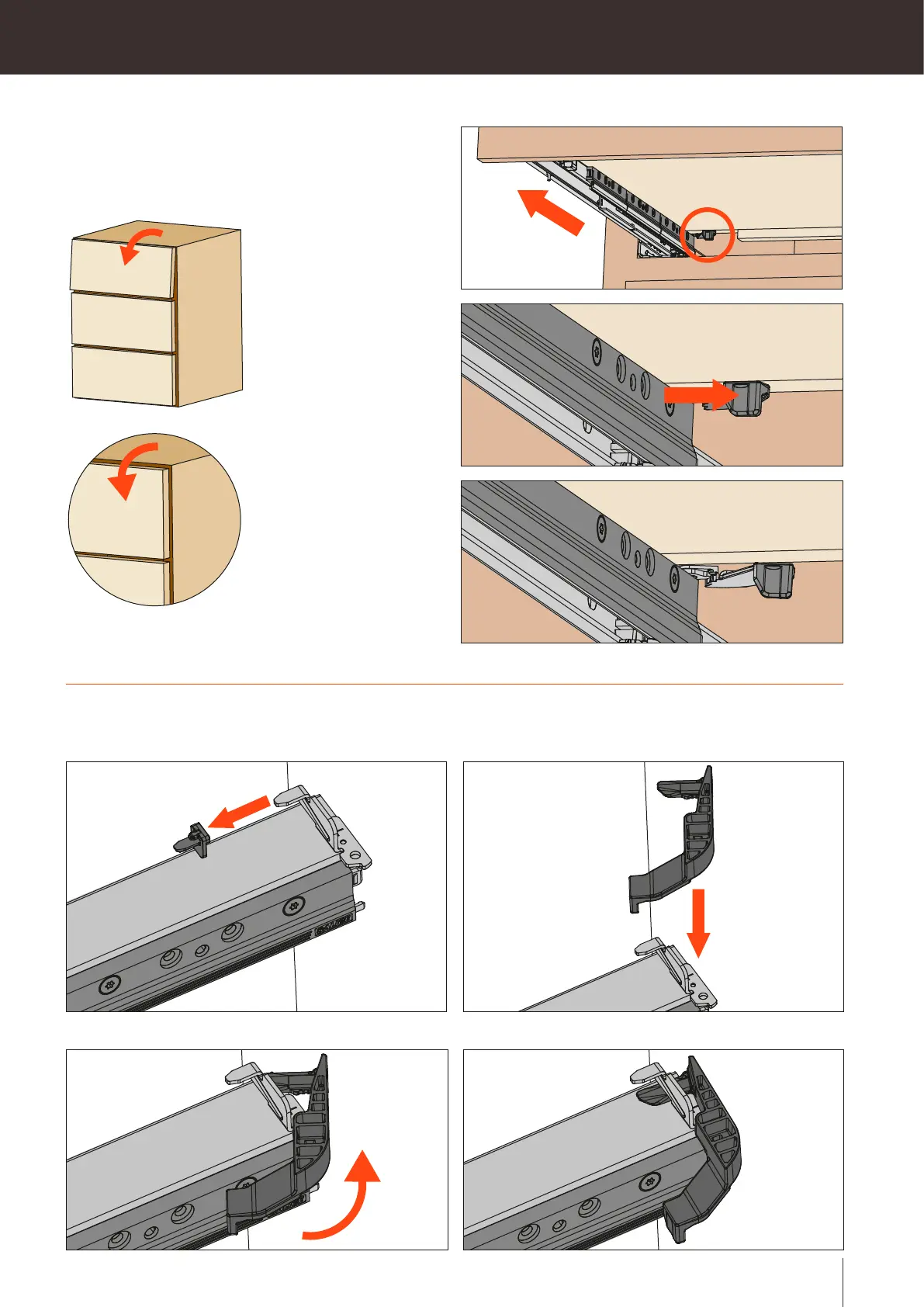

Tilt adjustment + 3 mm
Open the drawer and press the lever to achieve the
adjustment.
This operation is tool free.
Assembly of lever for the tilt adjustment (optional)
Pull out the drawer and remove the plastic insert Insert the lever for the tilt adjustment, both right and left
Rotate the lever to achieve the required adjustment
Drawer back preparation, see page 10. Lever for the tilt adjustment AGLRXX3F, see page 37.
