SALICE F70 - Runner Fixing and Installation

10 9 9
37
9 32
9.5
99
9
14
32
12
2
ø7
ø 6.3
0
-0.2
ø7
+0.5
-0.2
ø 4
ø 6.3
38
+/- 4.5
+/- 6
+/- 4.5
+/- 6
Screws, see page 37.

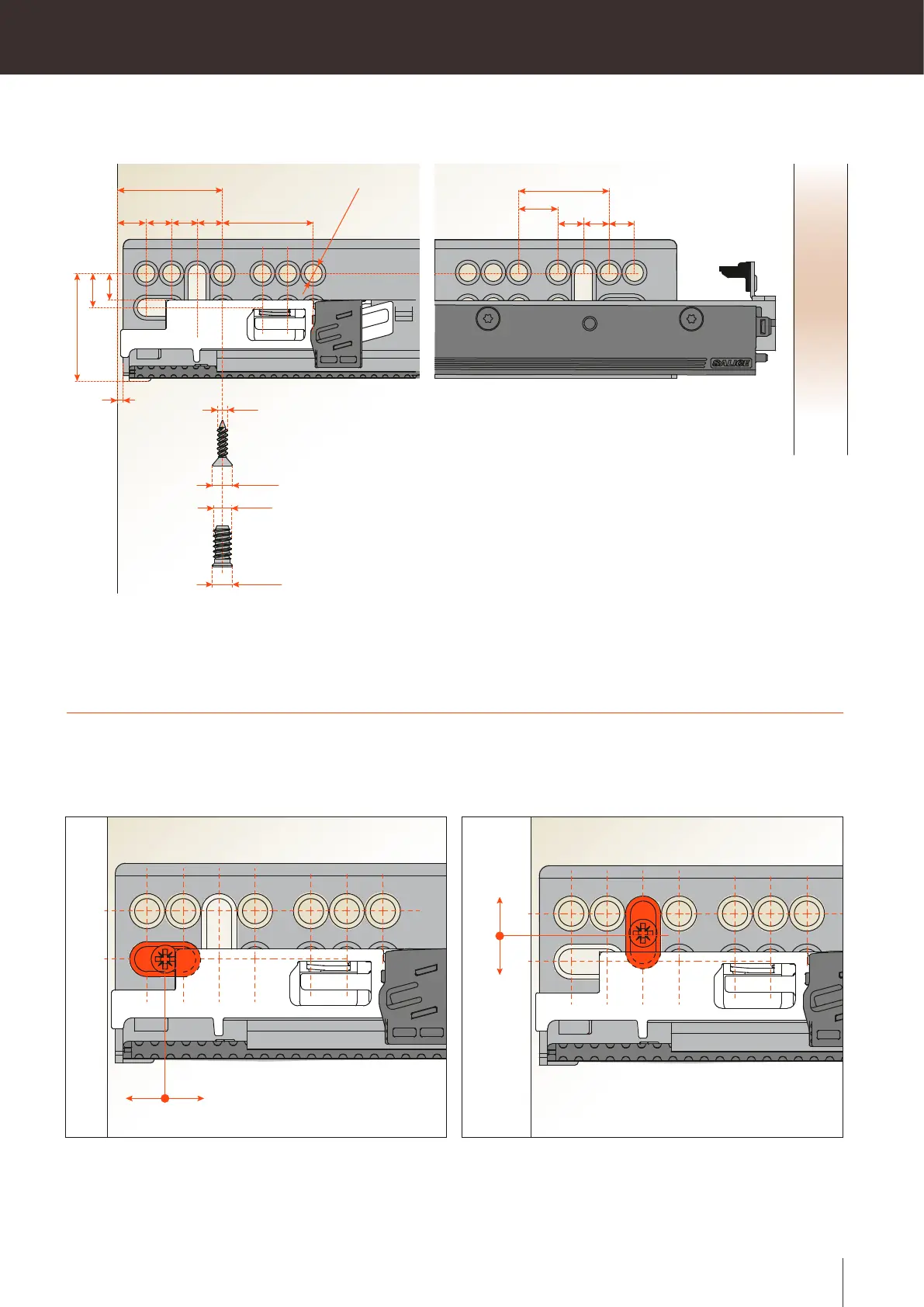

Fixing of the full-extension runner on the cabinet side
Fixing
The oval slots on the runners enable a depth adjustment of +/- 4.5 mm and a height adjustment of +/- 6 mm to be made.
These adjustments are in addition to those incorporated in the xing clips and in the runner (Adjustments, see page 17).
EUROSCREW
Pre-drilling ø 5 mm
If the xing of the runners is carried out before the assembly of the cabinet, we recommend that the inset position of the runner is increased
from 38 to 39 mm to accommodate the manufacturing tolerances in the cabinet and the runner.
7
