1.5 mm
1.5 mm

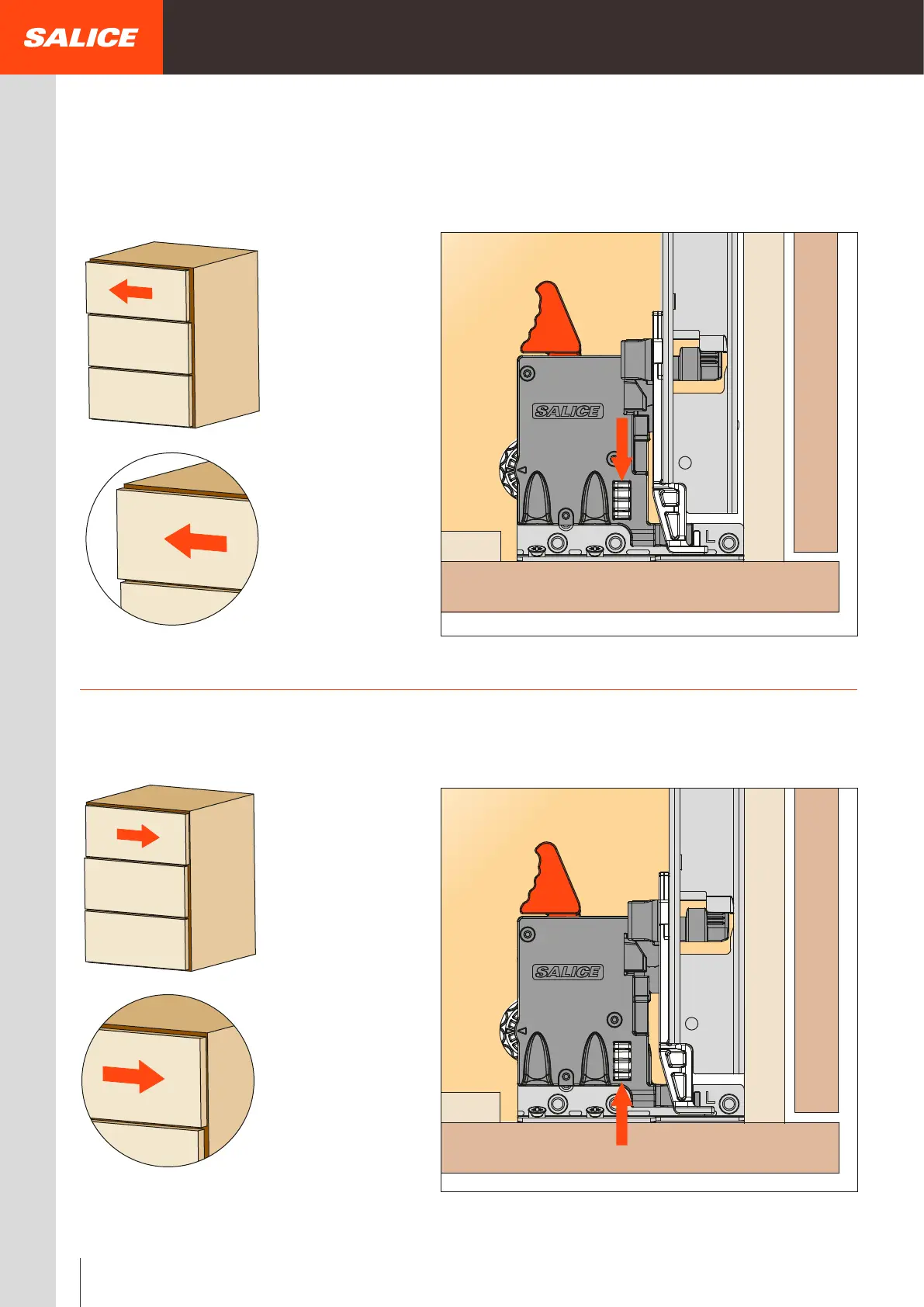

Rotate the white wheel towards the back of the drawer to adjust right.
This operation is tool free.
Rotate the white wheel towards the drawer front to adjust left.
This operation is tool free.
For side adjustment, it is recommended that the wheels on the clips are operated in the same direction, in order to maintain the correct
alignment and movement of the runners.
Side adjustment +/- 1.5 mm
For all Progressa, Progressa
+
and Progressa
+
Shelf runners
24
