SALICE Progressa - Page 7

10 9 9
37
9 32
9.5
99
9
14
32
12
2
ø7
ø 6.3
0
-0.2
ø7
+0.5
-0.2
ø 4
ø 6.3
38
+/- 4.5
+/- 6
+/- 4.5
+/- 6
EUROSCREW
Pre-drilling ø 5 mm

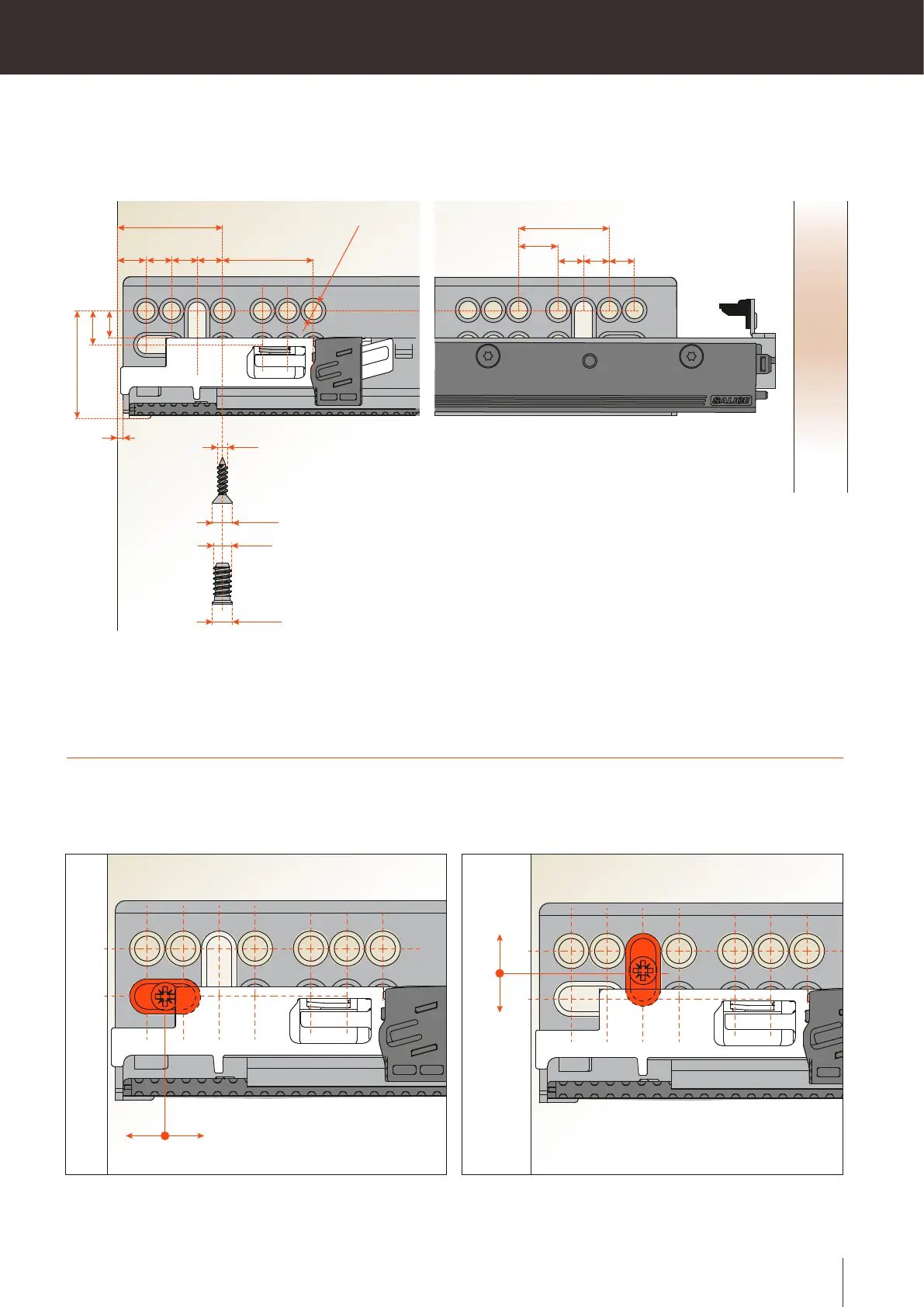

Mounting full-extension runner on the cabinet side
Runner installation
For all Progressa and Progressa
+
runners
Screws, see page 72.
The oval slots on the runners enable a depth adjustment of +/- 4.5 mm and a height adjustment of +/- 6 mm to be made.
These adjustments are in addition to those incorporated in the xing clips and in the runner (Adjustments, see page 23).
If runners are mounted before the assembly of the cabinet, we recommend that the inset position of the runner be increased from 38 to 39 mm
to accommodate the manufacturing tolerances in the cabinet and the runner.
7
