SALICE Progressa - Page 9

(X - 48)
LC
SP
19 mm
Max.
0
-1.5
(X - 42)
LC
SP
SP
16 mm
Max.
0
-1.5
LN
LN
(X - 48)
LC
SP
19 mm
Max.
0
-1.5
(X - 42)
LC
SP
SP
16 mm
Max.
0
-1.5
LN
LN
X
PM
RUNNER LENGTH
(LN)
External
DRAWER DEPTH
(LC)
350 mm 340 mm
400 mm 390 mm
450 mm 440 mm
500 mm 490 mm
550 mm 540 mm
600 mm 590 mm
650 mm 640 mm
700 mm 690 mm
750 mm 740 mm

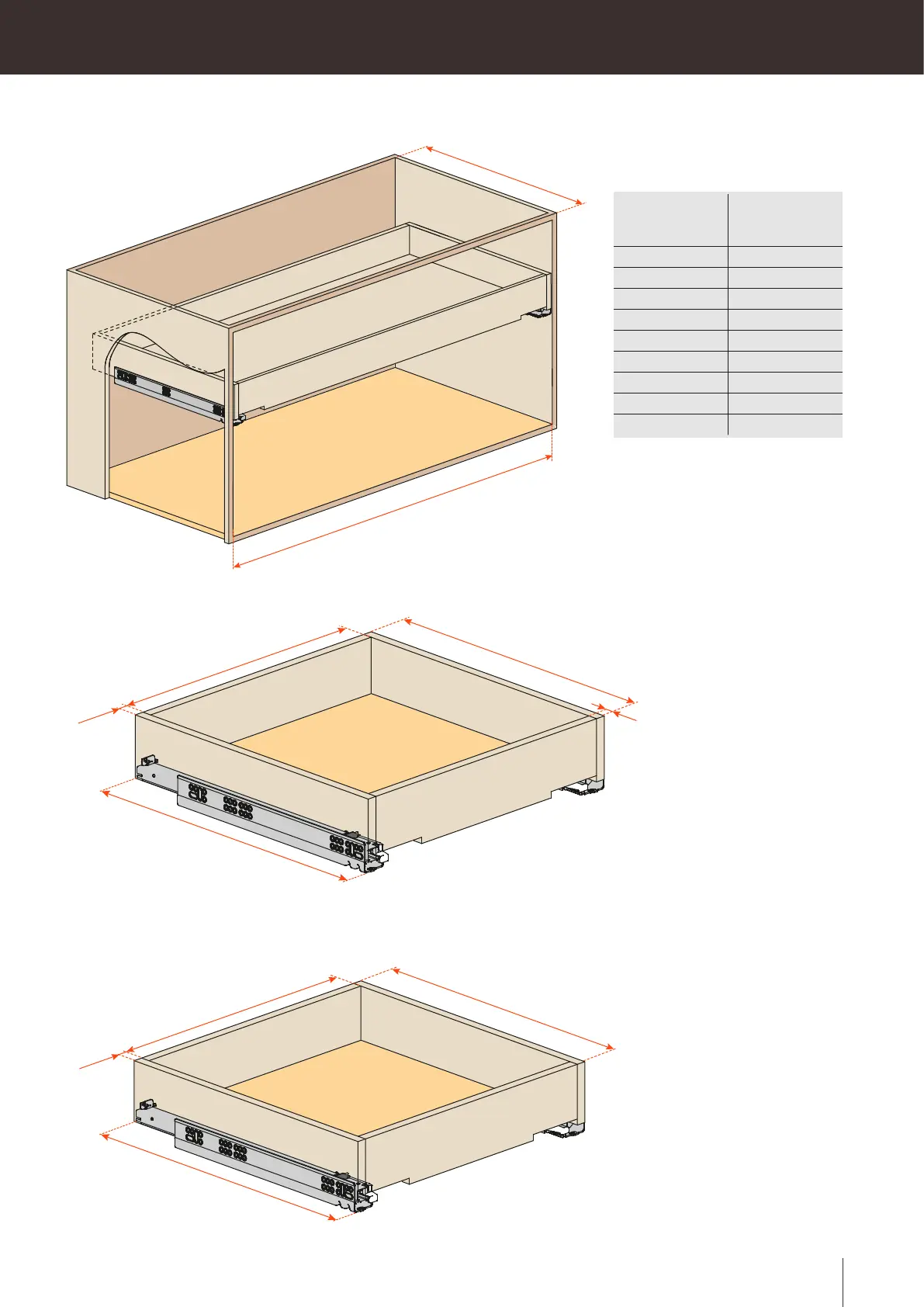

Drawer dimensions and drilling
For all Progressa and Progressa
+
runners
For drawer sides with sub-fronts
between 12 and 13 mm,
we recommend the use of the
build-up spacer AFSFXXB.
See page 70 for specs.
SP = Drawer thickness
The external drawer depth is 10 mm
less than the runner length
The external drawer depth is 10 mm
less than the runner length
The internal width of the drawer is
42 mm to 43.5 mm
less than the internal width of the cabinet
The internal width of the drawer is
48 mm to 49.5 mm
less than the internal width of the cabinet
Full-extension runner for 13 mm to 16 mm drawer material thickness
Abbreviations
SP = Drawer thickness
LC = Drawer depth
PM = Cabinet depth
X = Cabinet internal width
LN = Nominal runner length
Full-extension runner for 18-19 mm drawer material thickness
9
