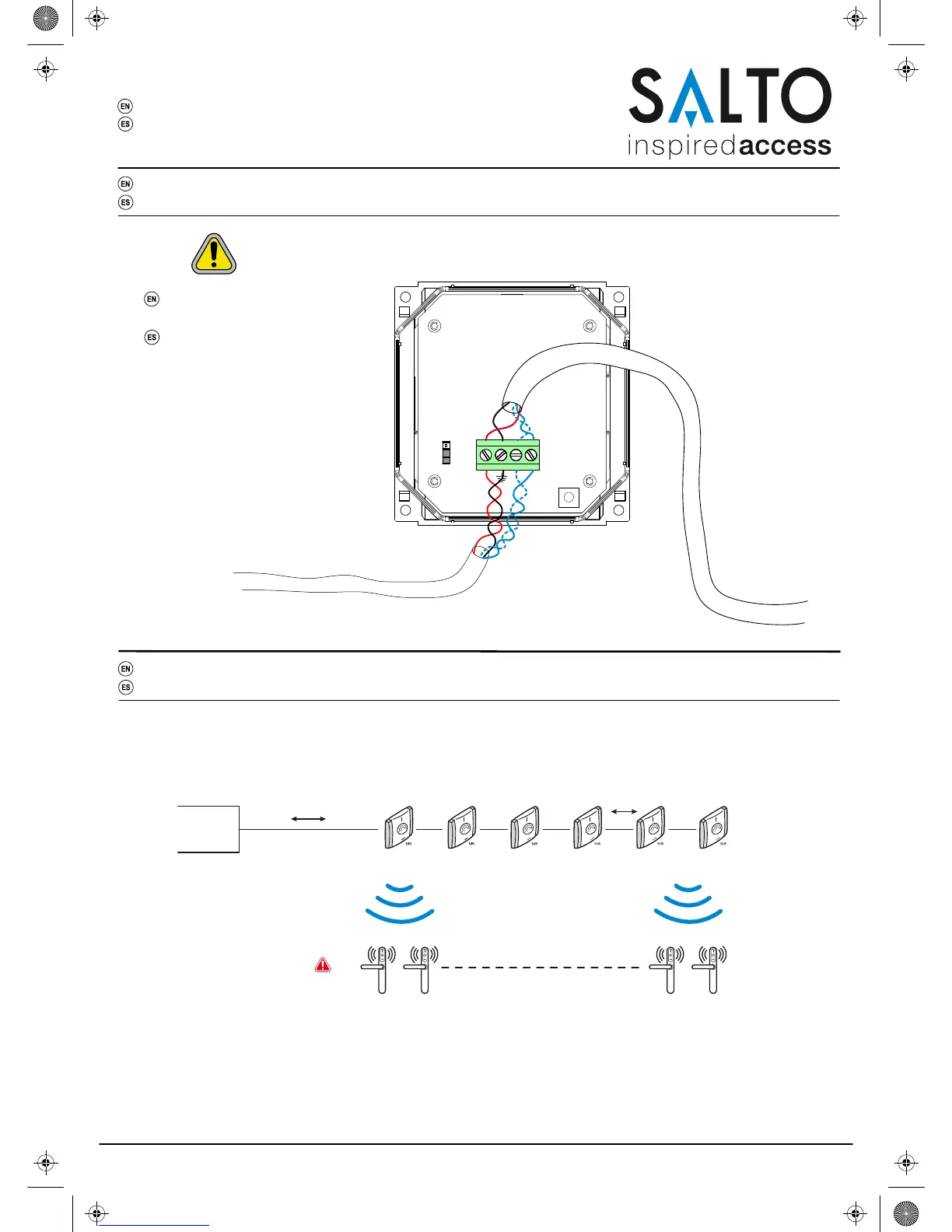

Electrical Installation
Instalación Eléctrica
Installation guide RF Node
Guía de instalación RF Node
Installation Example
Ejemplo de Instalación
RS485 bus termination resistor is
needed (ON position) when the
node is located at the end of the bus.
La resistencia de terminación de l bus
RS485 es necesaria (posición ON)
cuando el equipo esté situado en uno
de los extremos del bus.
Gatewayx2
Up to 10/15m
to Node
RF Link
RF Node RF Node RF Node RF Node RF Node RF Node
UTP CAT5e
1pair RS485
1pair 12v Power
50m
UTP CAT5e
1pair RS485
1pair 12v Power
25m
CLR
V+
A
B
ON
R
OFF
V+ A B
RS485 Bus
Termination
To Next Page
