SALUPO MULTI 1 - Wiring Diagram SA667.xx

3. WIRING DIAGRAM
15
ENGLISH

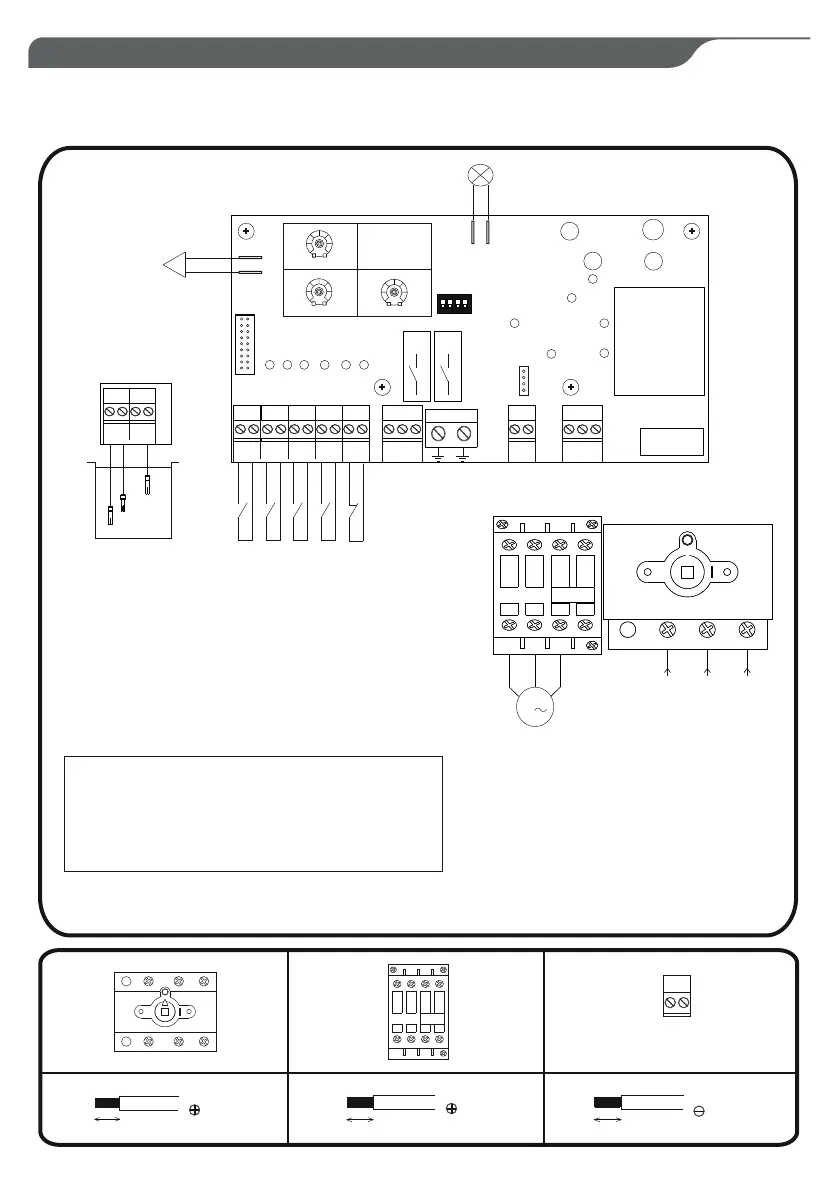

3.2 Wiring diagram SA667.xx
Max 10 mm²
(M4)
0,8Nm
10 mm
Max 6 mm²
(M4)
2,5Nm
10 mm
Max 2.5 mm²
(M3)
0,5Nm
8,3 mm
1 2
G.MIN
COM
MIN
COM
MAX
G.MAX1
3 4
COM
MIN
MAX
1 2
G.MIN
COM
MIN
COM
MAX
G.MAX1
G.MAX2
G.ALAR
PR.STA
PR.EME
KLIX1
COM
N.C.
N.O.
COM
ALARM
SIREN 12V
FLASHING-LAMP 12V
3 4 5 6 7 8
9 10 12 13 14
R
MOT1
S
R S T
SUPPLY
L1 L2 L3
U V W
M
3
MOTOR
POWER SUPPLY
400 Vac 50/60 Hz
CURRENT MOT
OR 1
2
5
1
1
18
8
14
16
PROBE SENSITIVITY
10
25
50
100
35
65
80
PROBE DELA
Y
1
40
120
240
80
160
200
1-2 LEVEL PROBES OR MINIMUM FLOAT SWITCH
5-6 MAX2 FLOAT SWITCH OR START PRESSURE SWITCH
3-4 LEVEL PROBES OR MAX1 FLOAT SWITCH
7-8 ALARM FLOAT SWITCH
9-10 MOTOR 1 KLIXON
KEY
12-13-14 PURE CONTACT ALARM OUTPUT (MAX 5A)
