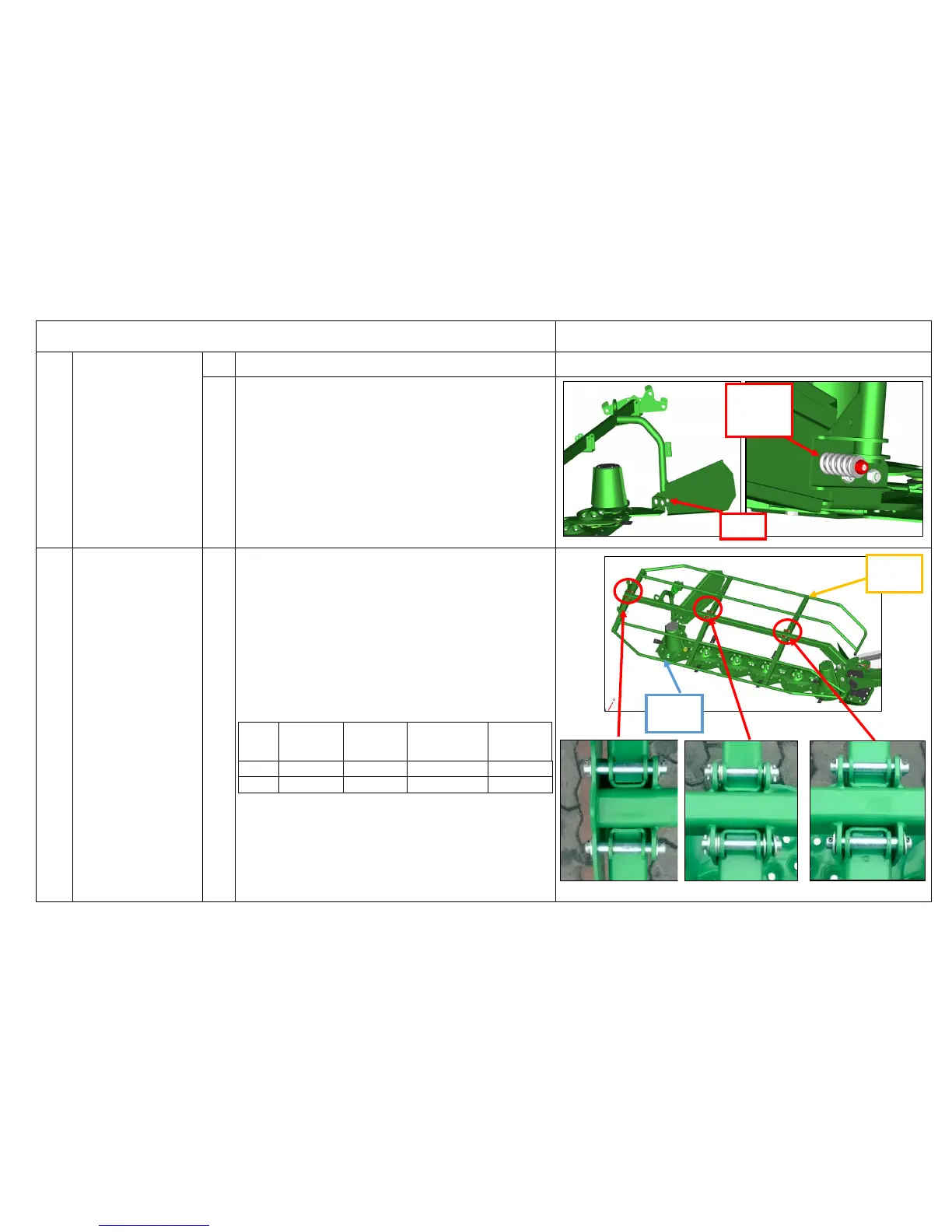

SaMASZ SAMBA 240 Assembly Instructions

Page 6 of 10
MACHINE TYPE
SAMBA
No.
Action
Figure / Photo / Other
Fasten right guide to welded frame using:
- bolt M12x 90 cl. 8.8 zinc-pl.
- spring dia 7 L= 67 (0260.04.08.000)
- enlarged washer dia 12 (34) zinc-pl.
- nut M12 cl. 8 zinc-pl.
4
Assembly of front
and rear guards
Put front and rear guard on welded frame:
- insert pins through openings in guards and welded frame,
- install spacers,
- hammer safety pins.
Depending on mower model, number of fastening elements is
given in the below table:
SAMBA
Pin
dia 12 L=90
Pin
dia 12 L=85
Dowel pin
dia 4x20
stainless
Washer
dia 12 zinc-
pl.
240
2 pcs.
4 pcs.
12 pcs.
18 pcs.
280
2 pcs.
6 pcs.
16 pcs.
22 pcs.
Check barriers for proper closing and lock pins for function.
Note whether barrier mounting pins are properly spaced (as
shown).
Spring,
washer,
nut
Bolt
Rear
barrier
Front
barrier
