SaMASZ SAMBA 280 Assembly Instructions

Page 1 of 10
A
B
C

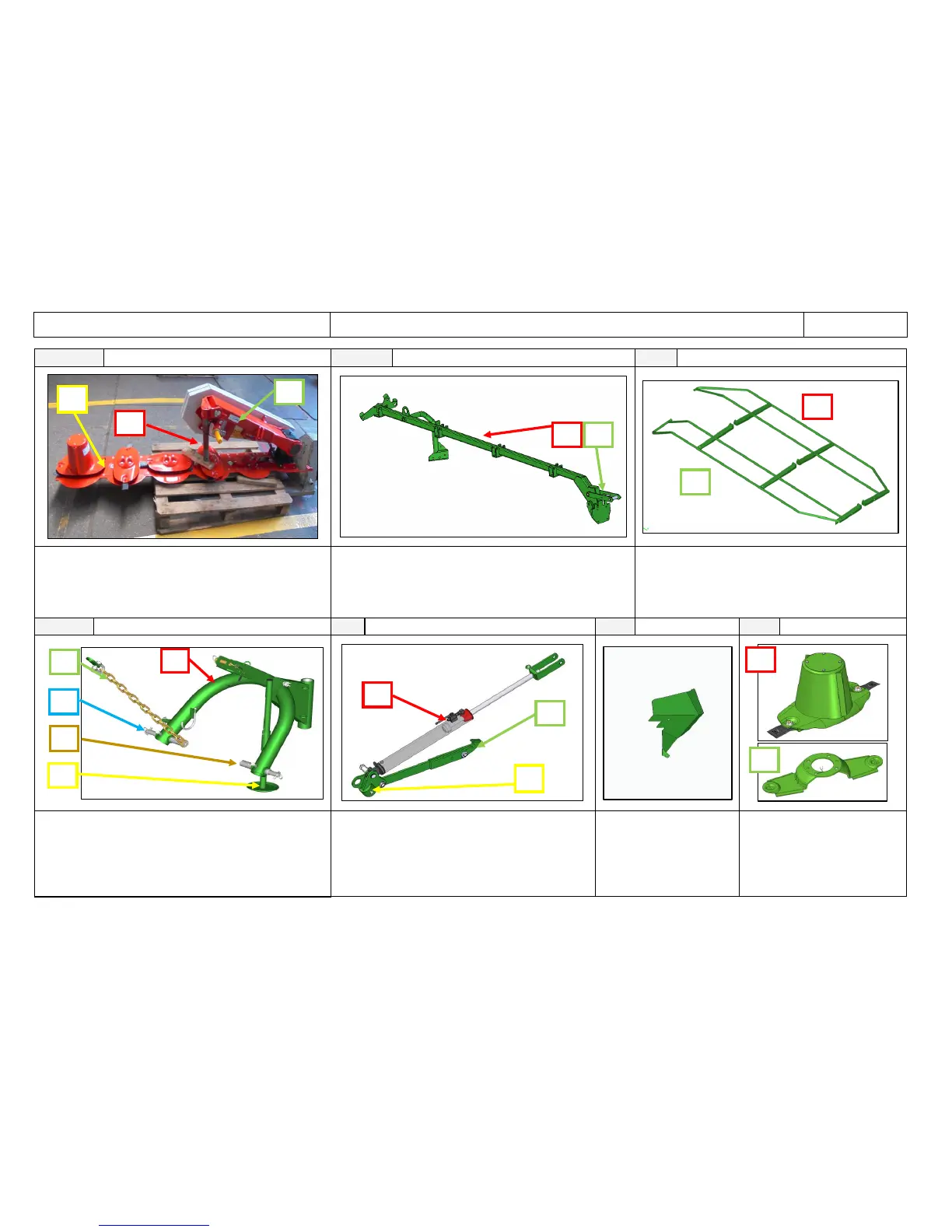

Component A (fully mounted):
1. Cutting unit – 0670.05.00.003
2. Carrying beam – 0670.02.00.002
3. Vertical axle – 0260.01.07.000
Component B:
Welded frame 1. 0671.04.01.004 with pawl 2 installed.
Component C:
1. Front guard (fitted with plastic plugs and guard lock
pin) – 0670.04.02.003
2. Rear guard (fitted with plastic plugs and guard lock
pin) – 0670.04.03.003
D
E
F
G
Component D (fully mounted):
Component E (fully mounted):
1 Cylinder with arm CCJ-S452-16-50-28-400,
hydraulic hose, plug Euro MIHZ-000-002
2 Welded head with spring tension pin
3 Skew strip 0670.01.02.003
Component F:
1 Transmission guard –
0671.07.04.003
Component G:
1 Disc with drum
2 Knife holder
1 Linkage – 0670.01.00.003
2 Support foot – 0670.01.05.000
3 Limiting chain – 0225.01.06.000
4 Hitch pin L –
0105.01.14.000
5 Hitch pin R –
0105.01.15.000
Checklist
MACHINE TYPE: SAMBA
3
2
1
2
1
2
1
1
3
2
4
5
1
3
2
1
2
