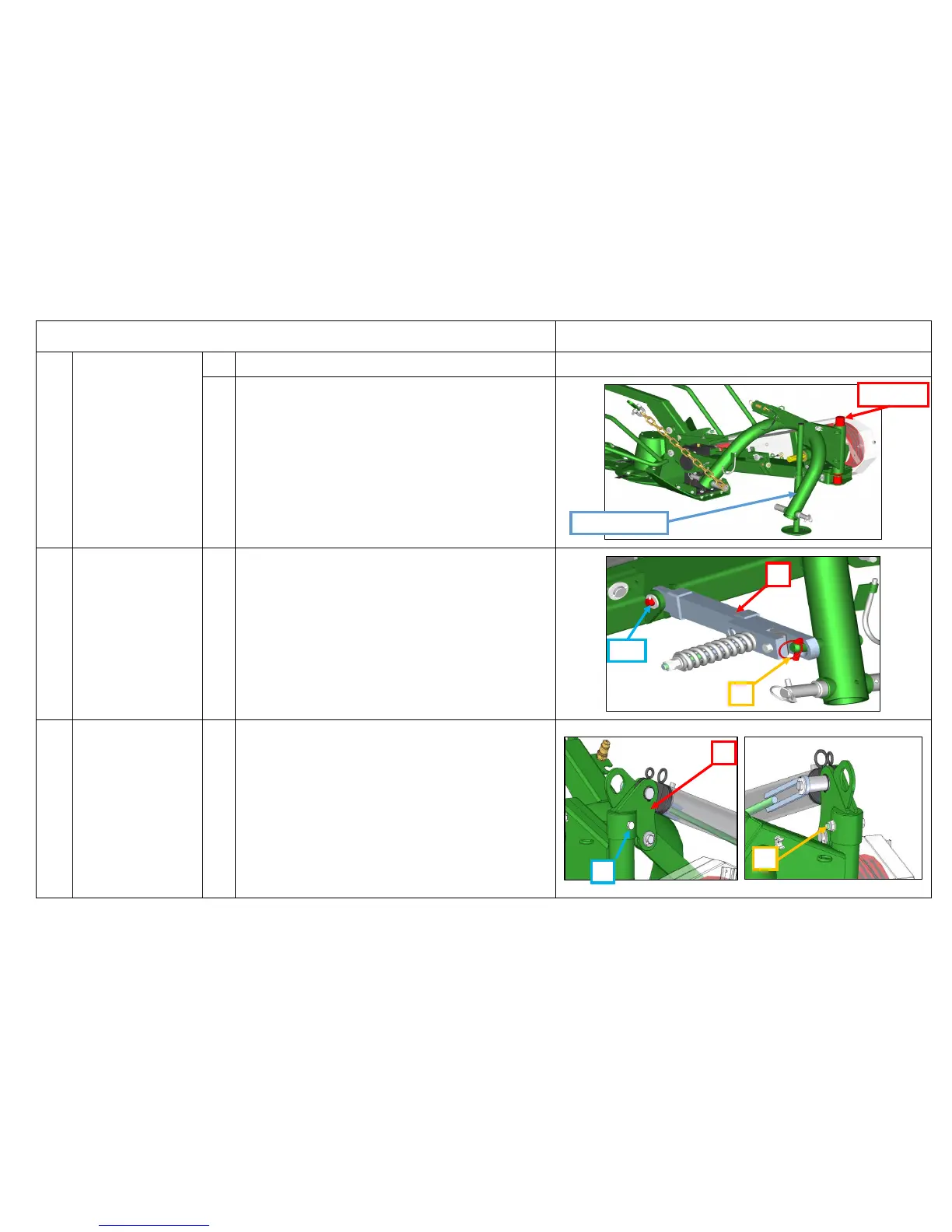

Page 7 of 10
MACHINE TYPE
SAMBA
No.
Action
Figure / Photo / Other
5
Assembly of
vertical axle to
the headstock
Assemble the complete linkage component on vertical
axle.
Secure the linkage against tilting and falling.
6
Installing safety
device
1. Install the safety device component on carrying beam.
2. Through eye-bolts on the beam and opening on the
safety device, insert pin dia18 L-75 (SO. 18.00.075)
3. At both sides, secure the safety device pin using
washers and hammer dowel pins:
- washer dia 18 zinc-pl. 2 pcs
- dowel pin dia 5 x 30 stainless 2 pcs
4. Install the other end of the safety device on hitch
assembly and secure it using cotter A 11 x 45
7
Assembly of
header, hydraulic
cylinder, metal
strip to vertical
axle and frame
1. Install welded head on vertical axle.
2. Insert bolt through opening in welded frame and
vertical axle:
- bolt M12 x 100 cl. 8.8 zinc-pl. (82101)
3. Install washer and screw the bolt using nut, so as to
fasten the welded head:
- washer dia 12 zinc-pl.
- nut M12 cl. 8 zinc-pl.
Vertical
axle
Linkage
1
2
and
3
4
1
2
3
