samet smart slide single - Page 2

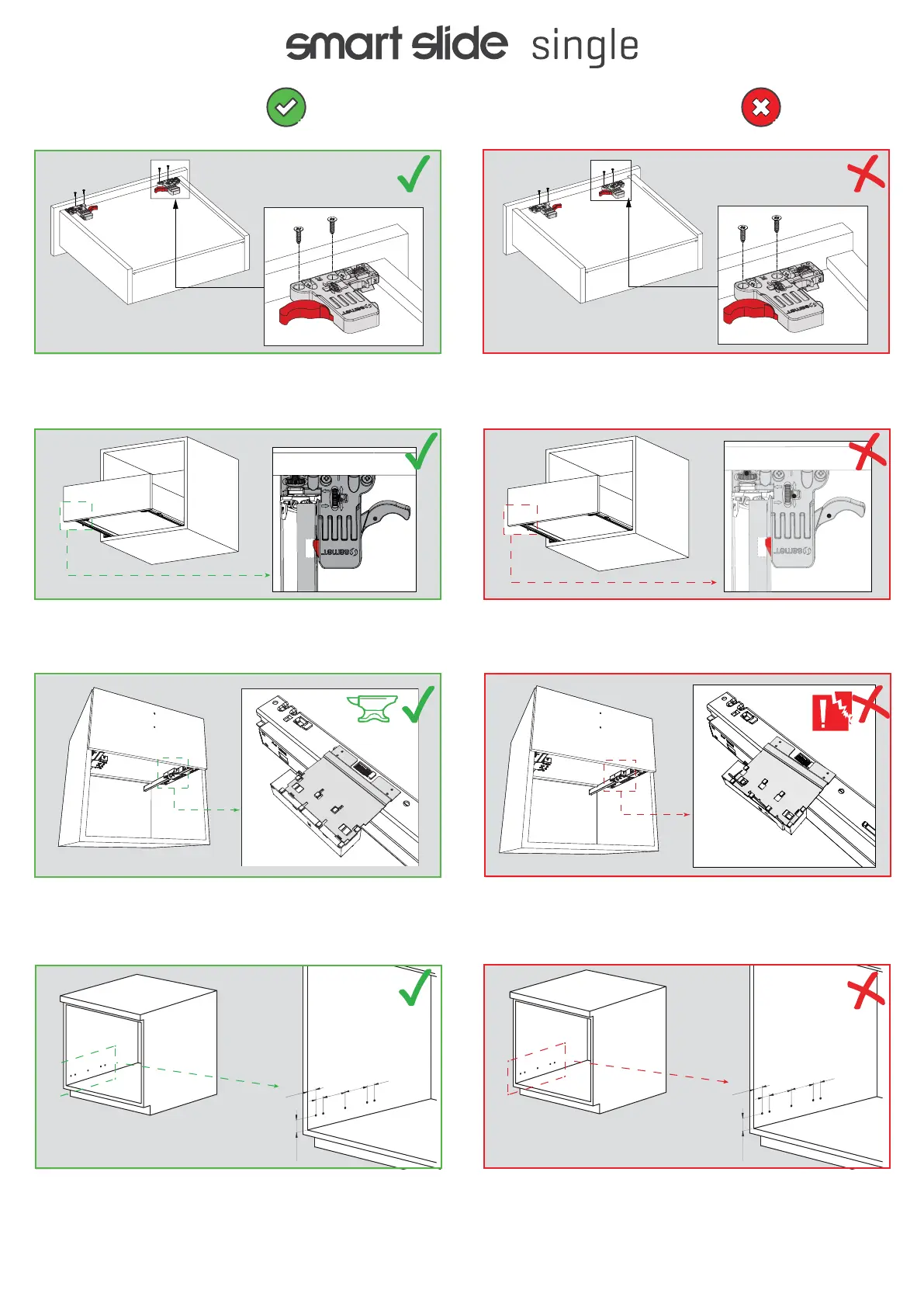

Locking mechanisms should be installed flush up
against the drawer sides.
There should not be any gap between the locking
mechanisms and the drawer sides.
The drawer should be fully inserted to the 2nd locking
notch.
The drawer should not be fixed to the 1st stage of the
locking notch.
- DO -
- DON’T -
5
6
Pay close attention to welded sheet metal on
Smart Slide Single push-open mechanisms.
Welded sheet metal should not be bent on
Smart Slide Single push-open mechanisms.
7
Slides should be installed 37 mm back from the
front edge of the cabinet for overlay applications.
Slides should not be installed further than 37 mm
away from the front edge of cabinet for overlay
applications.
X = 37
X
min.34
32
96
96
32
X >37
X
min.34
32
96
96
32
8
