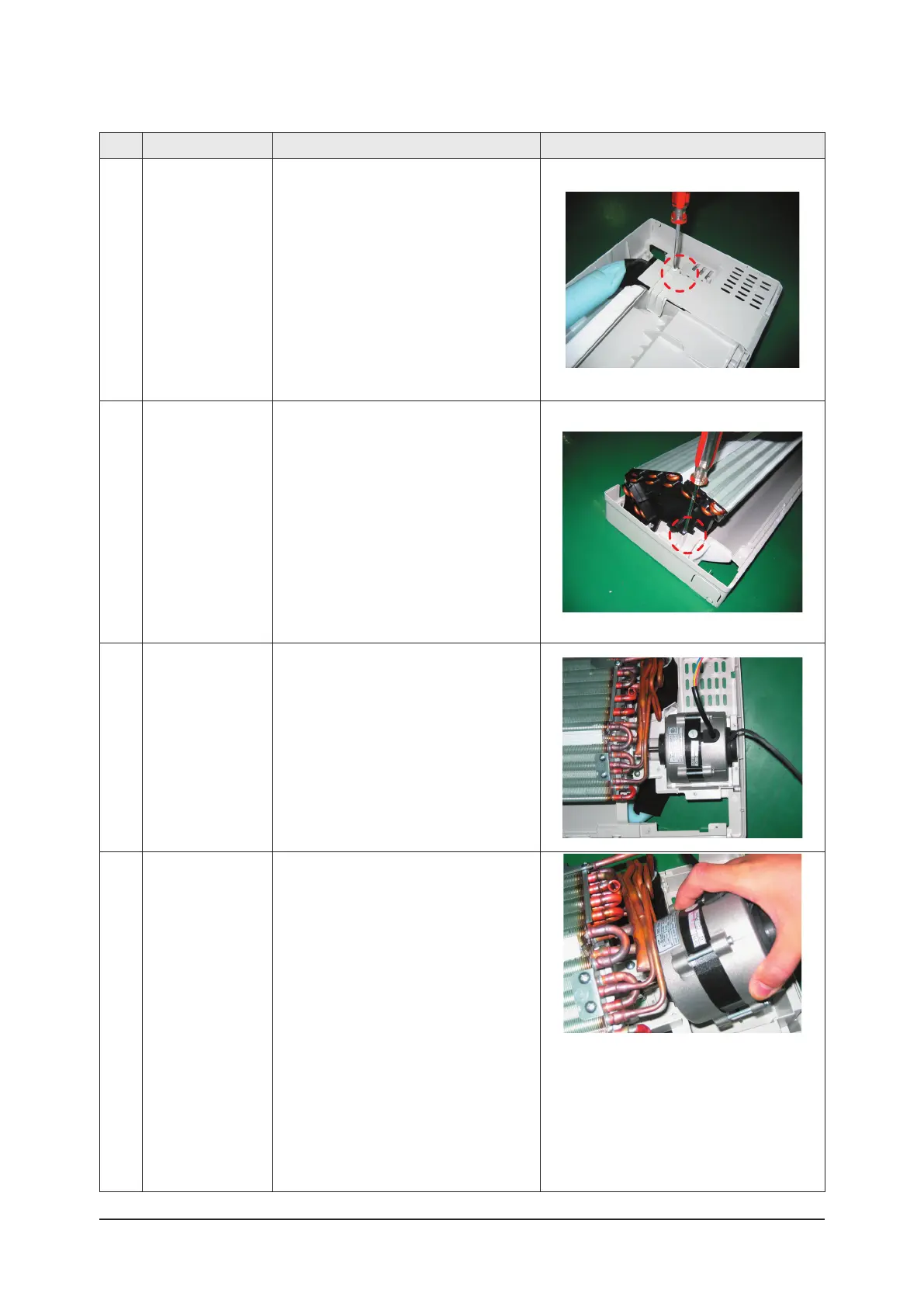

No Parts Procedure Remark
4 Heat Exchanger 1) Loosen 2 fixing earth screws of right side.
2) Detach the Connection Pipe.
3) Detach the Holder Pipe at the rear side.
4) Loosen the 4 fixing screws of right and left
side.
5) Lifting the Heat Exchanger up a little to
push the up side for separation from the
indoor unit.
5 Fan Motor
&
Cross Fan
1) Loosen the fixing screw.
2) Detach the Fan Motor from the Fan.
3) Detach the Fan From the left Holder
Bearing.
Disassembly and Reassembly
4-3 Samsung Electronics
