Operating Instructions and Installation
Samsung Electronics5-1
Disassembly and Reassembly
No Parts Procedure Remark

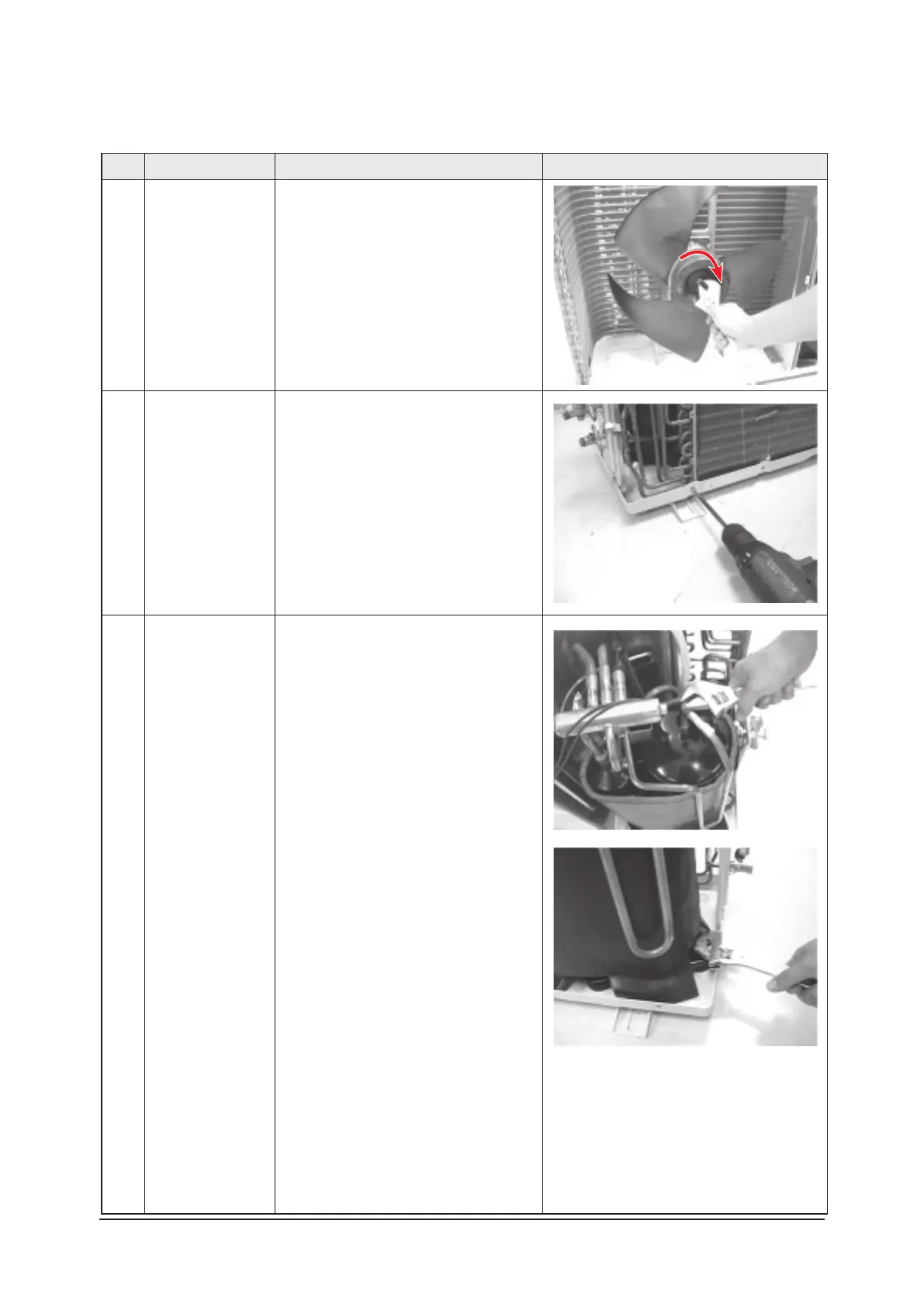

2 Fan
&
Motor
1) Detach the Nut Flange.(Turn counterclock
-
wise
because the screw is right-handed)
2) Detach the Fan.
3) Loosen 4 fixing screws to detach
the Motor.
3 Heat Exchanger 1) Loosen 3 fixing screws of the Bar Steel.
2) Loosen 2 fixing screws on both sides.
3) Disassemble the pipe in both inlet and
outlet with welding torch.
4) Detach the Heat Exchanger.
4 Compressor 1) Loosen the Terminal Cover nut to open the
Terminal Cover.
2) Disassemble the cloth sound felt.
3) Disassemble the pipe in both inlet and
outlet of the Compressor with welding
torch.
4) Loosen the 3 bolts at the bottom.
5) Detach the Compressor.
4-10
