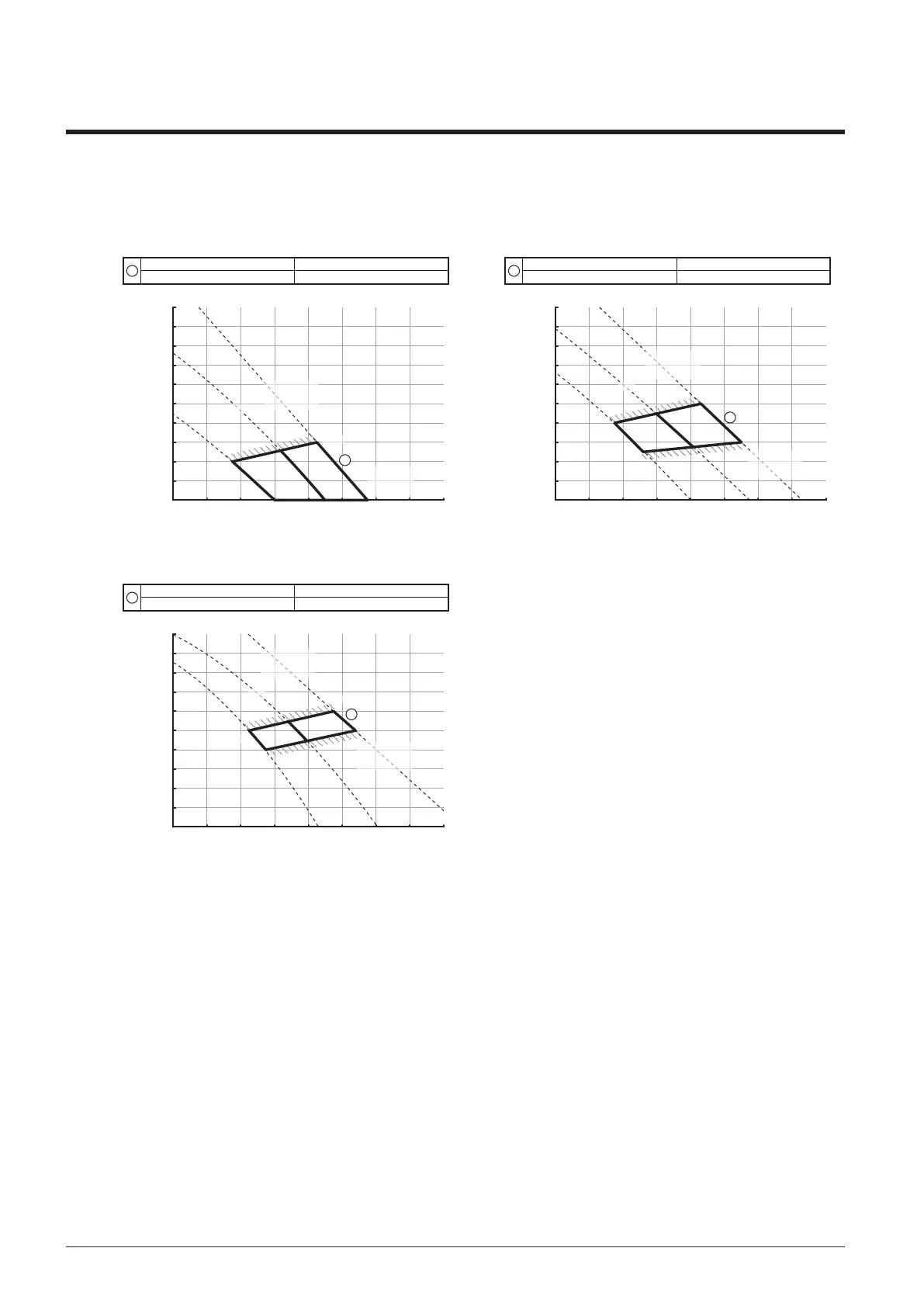

9. Fan Characteristics (PQ curve)
External Static Pressure [mmAq]
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
10 15 20 25
Air flow rate [CMM]
External Static Pressure(mmAq)
12 < SP ≤ 15
Option Code
01B07C-1D5D3C-27343C-370000
5
3) AJ052TNMDEG/EU
5
Lower limit of
external
static pressure
HIGH
LOW
Upper limit of
external
static pressure
MID
External Static Pressure [mmAq]
0
1
2
3
4
5
6
7
8
9
10
6 8 10 12 14 16 18 20 22
Air Flow rate [CMM]
External Static Pressure(mmAq)
0≤SP≤3.0
Option Code
01017C-132560-27343C-370000
1
1
Lower limit of
external
static pressure
HIGH
LOW
Upper limit of
external
static pressure
MID
External Static Pressure [mmAq]
0
1
2
3
4
5
6
7
8
9
10
6 8 10 12 14 16 18 20 22
Air Flow rate [CMM]
External Static Pressure(mmAq)
3＜SP≤5.0(Default)
Option Code
01017C-1325A2-27343C-370000
2
2
Lower limit of
external
static pressure
HIGH
LOW
Upper limit of
external
static pressure
MID
External Static Pressure [mmAq]
0
1
2
3
4
5
6
7
8
9
10
6 8 10 12 14 16 18 20 22
Air Flow rate [CMM]
External Static Pressure(mmAq)
5＜SP≤6.0
Option Code
01017C-132905-27343C-370000
3
3
Lower limit of
external
static pressure
Upper limit of
external
static pressure
HIGH
LOW
MID
