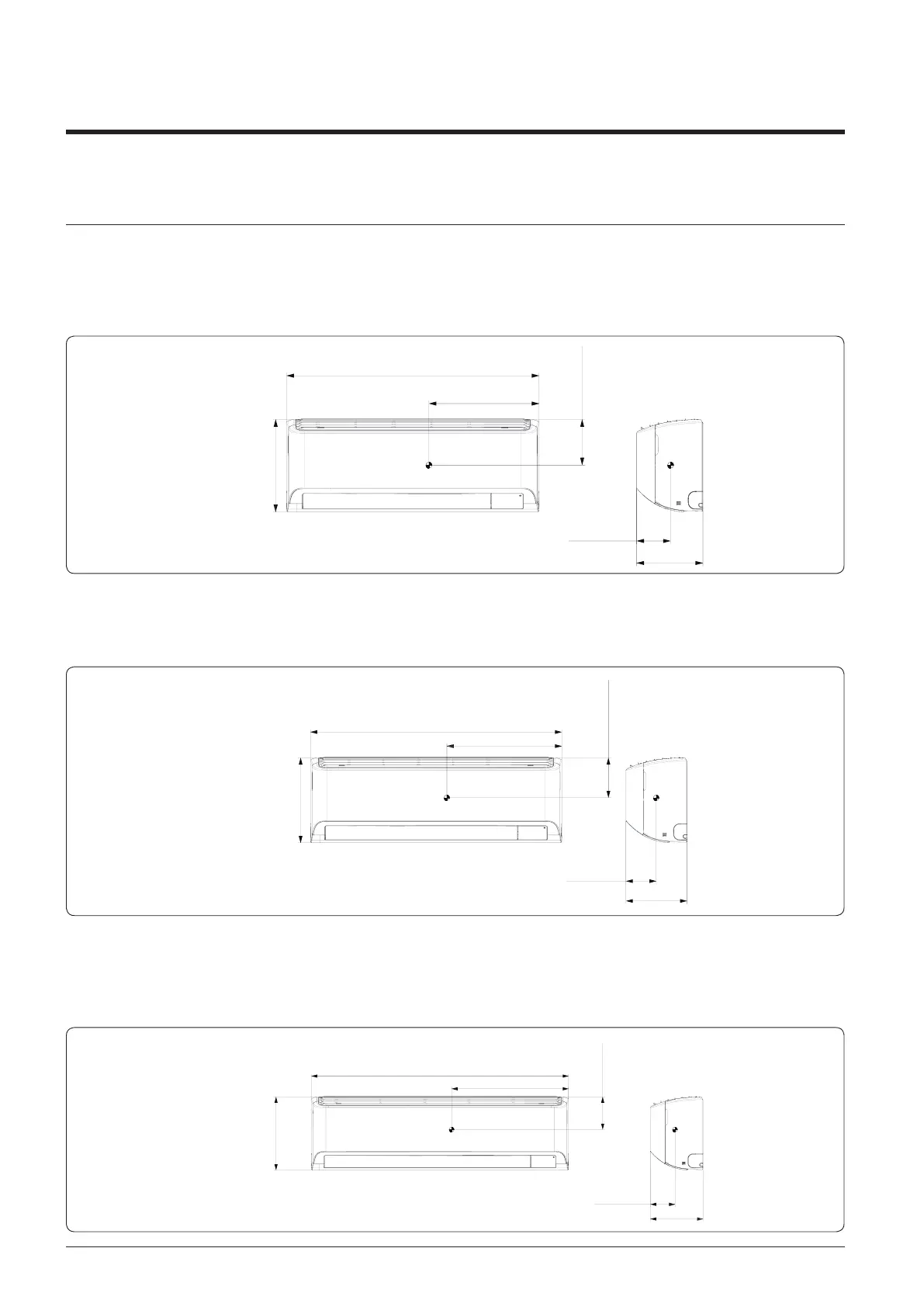

6. Center of Gravity
6-2. Indoor unit
1
AR4500 : AR07TXHZAWKNEU, AR09TXHZAWKNEU, AR12TXHZAWKNEU
AR5500 : AR07TXFYAWKNEU, AR09TXFYAWKNEU, AR12TXFYAWKNEU
AR9500 : AR07TXFCAWKNEU, AR09TXFCAWKNEU, AR12TXFCAWKNEU
Unit: mm (inches)
[31-5/16]820.0
215.0 [8-1/2]
[14-1/16]357.6
[5-13/16]148.2
[4-3/8]110.7
299.0 [11-3/4]
2
AR9500 : AR07TXEAAWKNEU, AR09TXEAAWKNEU, AR12TXEAAWKNEU
AR07TXCAAWKNEU, AR09TXCAAWKNEU, AR12TXCAAWKNEU
Unit: mm (inches)
[35] 889.0
215.0
[8-1/2]
[16] 406.5
[5-9/16]
141.3
[4-3/16] 106.8
299.0
[11-3/4]
3
AR4500 : AR18TXHZAWKNEU, AR24TXHZAWKNEU
AR5500 : AR18TXFYAWKNEU, AR24TXFYAWKNEU
AR9500 : AR18TXFCAWKNEU, AR24TXFCAWKNEU, AR18TXEAAWKNEU, AR24TXEAAWKNEU
Unit: mm (inches)
[41-1/2]1054.5
299.0 [11-3/4]
215.0 [8-1/2]
[18-7/8]479.3
[5-1/4]133.8
[3-15/16]100.8
