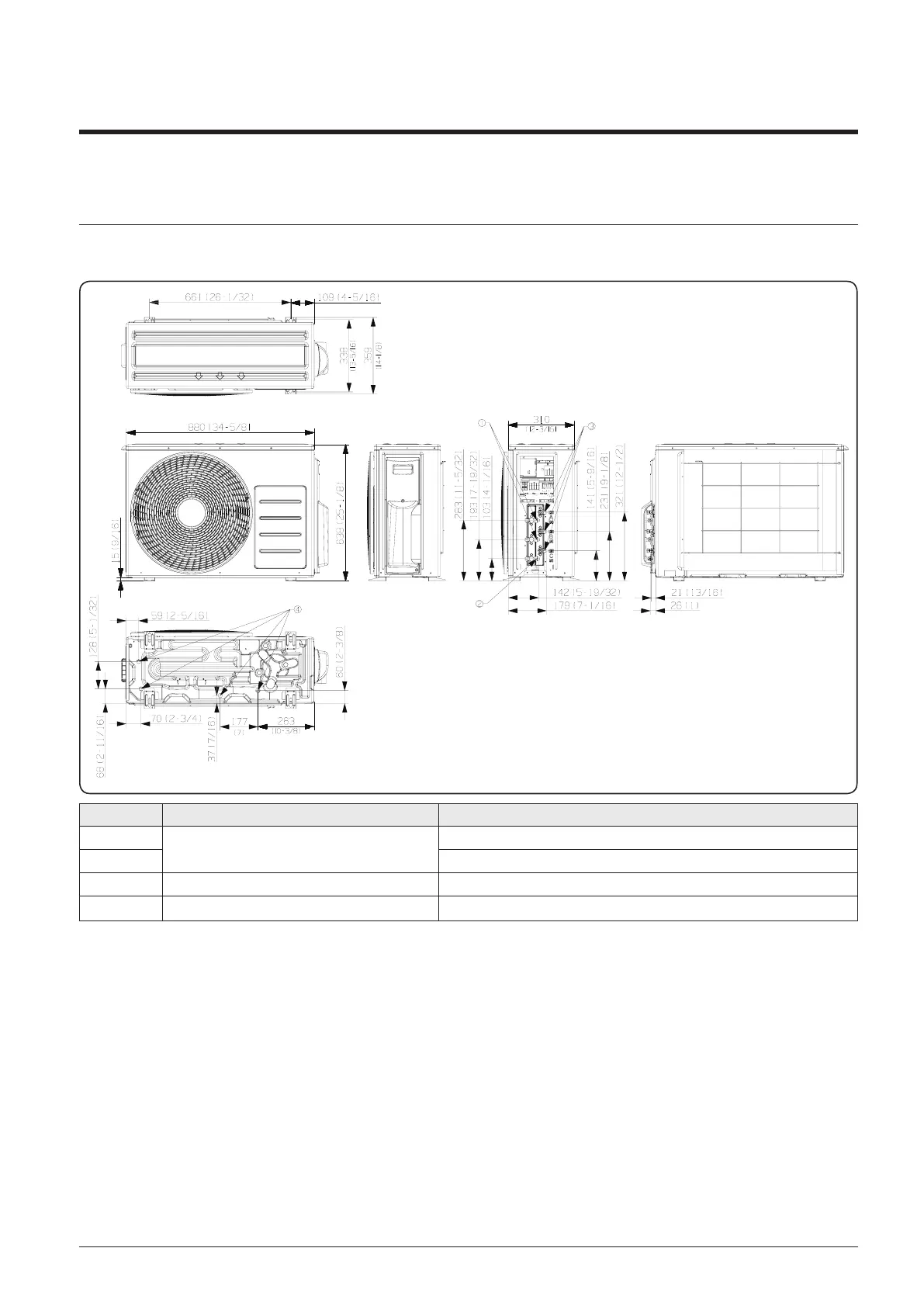

5. Dimensional Drawing
5-1. Outdoor units
 AJ052TXJ3KG/EU
Unit : mm [inches]
NO Name Description
1
Refrigerant gas pipe

2 
3 Refrigerant liquid pipe 
4 Drain hole Connection with the provided drain plug.
