※ In case you want more information about the controllers and accessories, please refer to the Controller and Accessory TDB
on pvi.Samsung.com site or Global Partner Portal site.

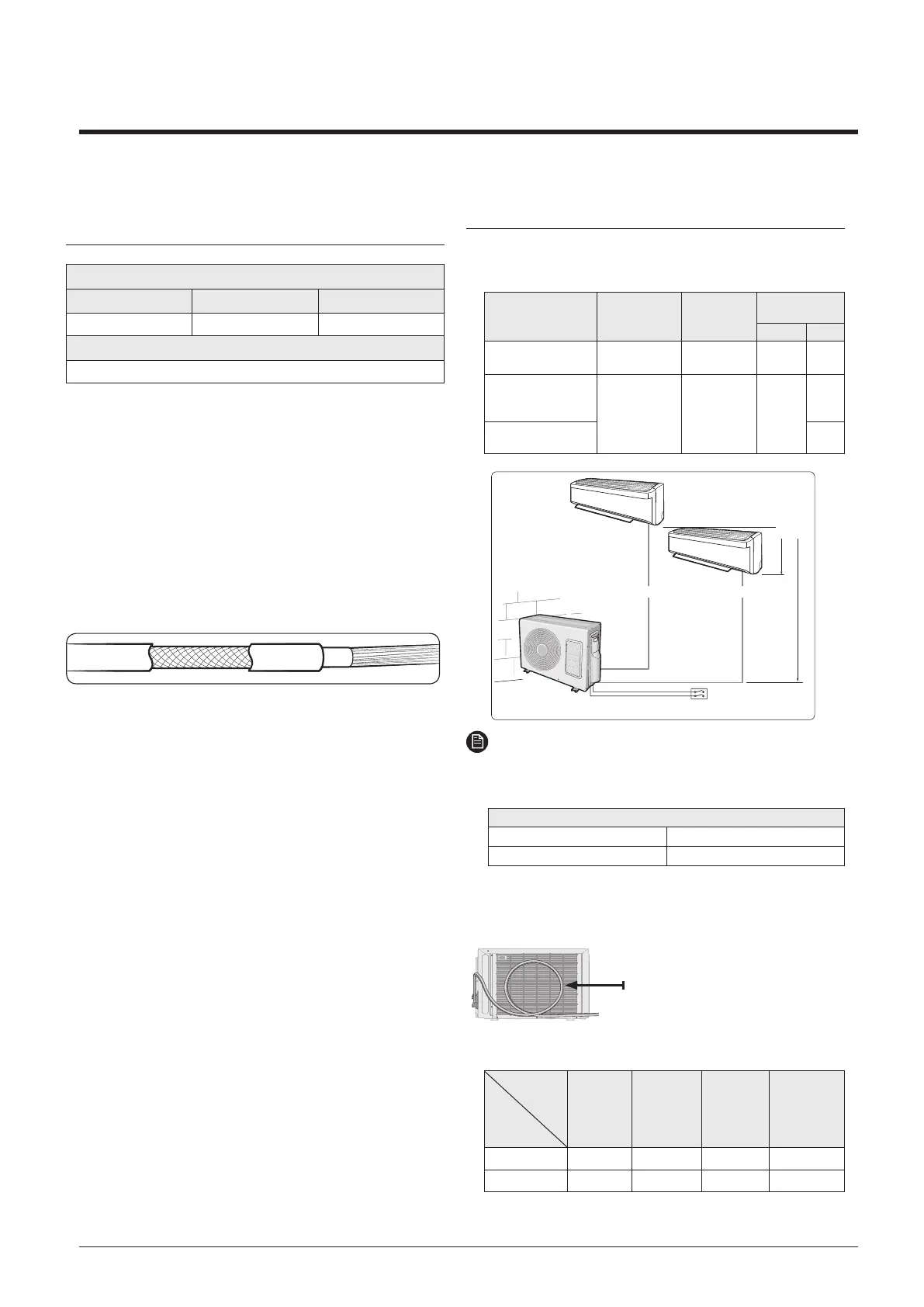

13. Installation
Outdoor-to-indoor power and communication cables
specications
Indoor power supply
Power supply Max/Min (V) Indoor power cable
±10% 1.5 mm²
, 3 wires
Communication cable
0.75 to 1.5 mm², 2 wires
Power supply cords of parts of appliances for outdoor
use shall not be lighter than polychloroprene
IEC 57 / CENELEC: H05RN-F or IEC:60245 IEC 66 /
CENELEC: H07RN-F)
When installing the indoor unit in a computer room
or net work room, server room or in the presence
of risk of disturbance to the communication cable,
use the double shielded (tape aluminium / polyester
braid + copper ) cable of FROHH2R type.
Connecting the refrigerant pipe
◆ AJ040/050TXJ2KG
1 Piping outside diameter
Indoor unit Out unit
Power supply
Ø, V, Hz
Outside diameter
Liquid Gas
AR07/09/12********,
AJ026/035TN*D*G
AJ040TXJ2KG 1,220-240, 50 1/4" 3/8"
AR07/09/12********,
AJ016/020/026
/035TN*D*G
AJ050TXJ2KG 1,220-240, 50 1/4"
3/8"
AR18********,
AJ052TNJDKG
1/2"
A B
(h)
(H)
Main power switch
NOTE
This product requires no additional refrigerant
charge up to the maximum allowable pipe length.
Maximum allowable refrigerant charge amount
AJ040TXJ2KG/EU 980 g
AJ050TXJ2KG/EU 1180 g
AJ040TXJ2KG Outdoor unit cannot be connected to
the following indoor unit combination.
- AJ0**TNNDKG/AJ0**TNLDEG
Make at least one round:
It will reduce noise and vibration
2 Piping outside diameter
1 Room
max
length
2 Room
total max
length
Max height
between
indoor unit
& outdoor
unit
Max height
between
indoor units
Dimension 20m 30m 15m 7. 5 m
Composition A,B A+B (H) (h)
