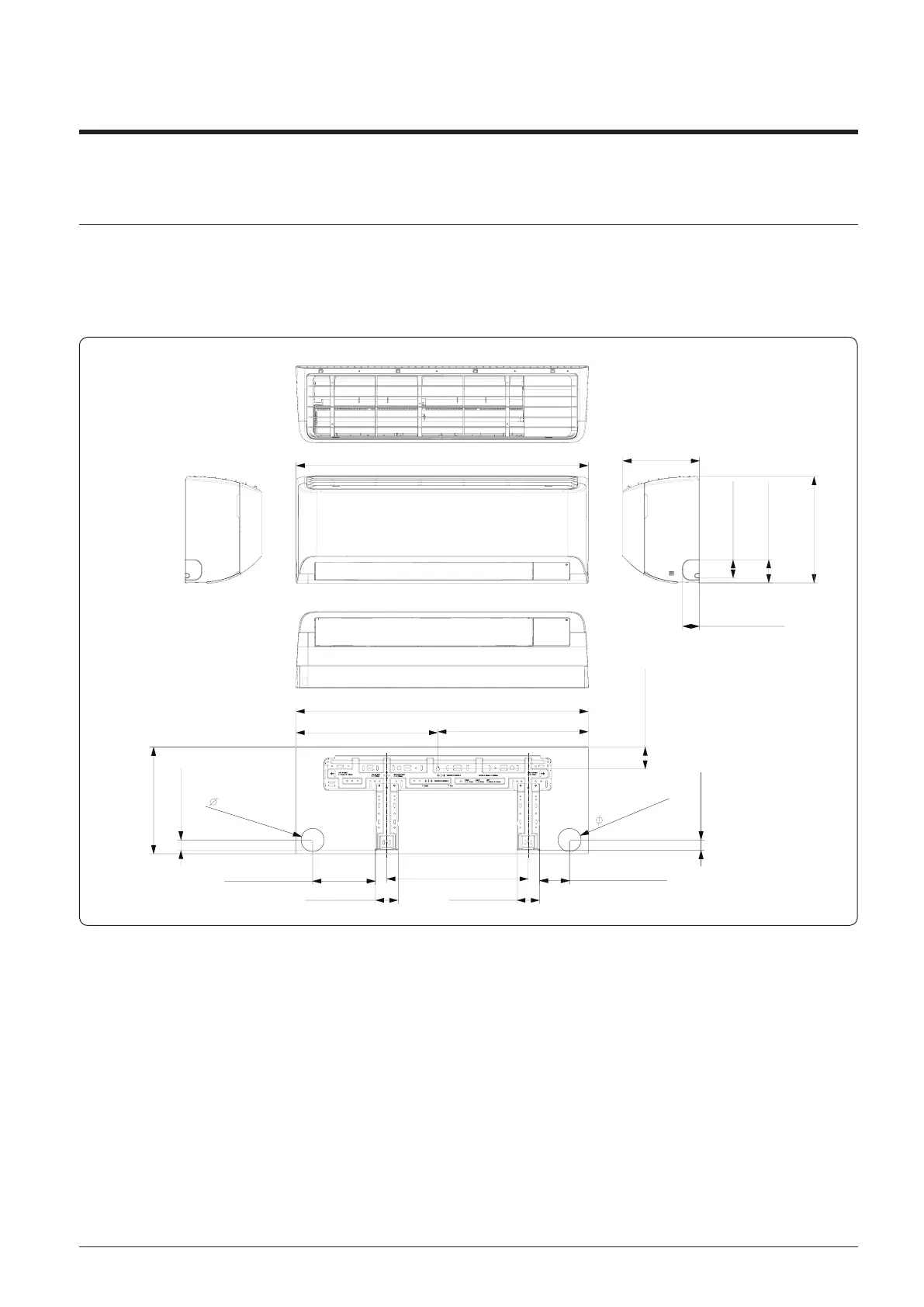

5. Dimensional Drawing
5-2. Indoor unit
1
AR4500 : AR07TXHZAWKNEU, AR09TXHZAWKNEU, AR12TXHZAWKNEU
AR5500 : AR07TXFYAWKNEU, AR09TXFYAWKNEU, AR12TXFYAWKNEU
AR9500 : AR07TXFCAWKNEU, AR09TXFCAWKNEU, AR12TXFCAWKNEU
Unit : mm [inches]
[32-5/16]820.0
[1-7/8]48.3
[11-3/4]299
[2-9/16]65.2
[2-1/16]51.9
[11-3/4]299.0
[2-9/16]65.0
[1-1/8]29.0
[3-5/16]84.0
[2-9/16]65.0
[6-15/16]176.0
[1-1/8]29.0
[16-5/8]422.3
[32-5/16]820.0
[2-7/16]61.5
[2-1/2]64.0 [2-1/2]64.0
[15-5/8]397.0
[15-11/16]397.7
[8-7/16]215
