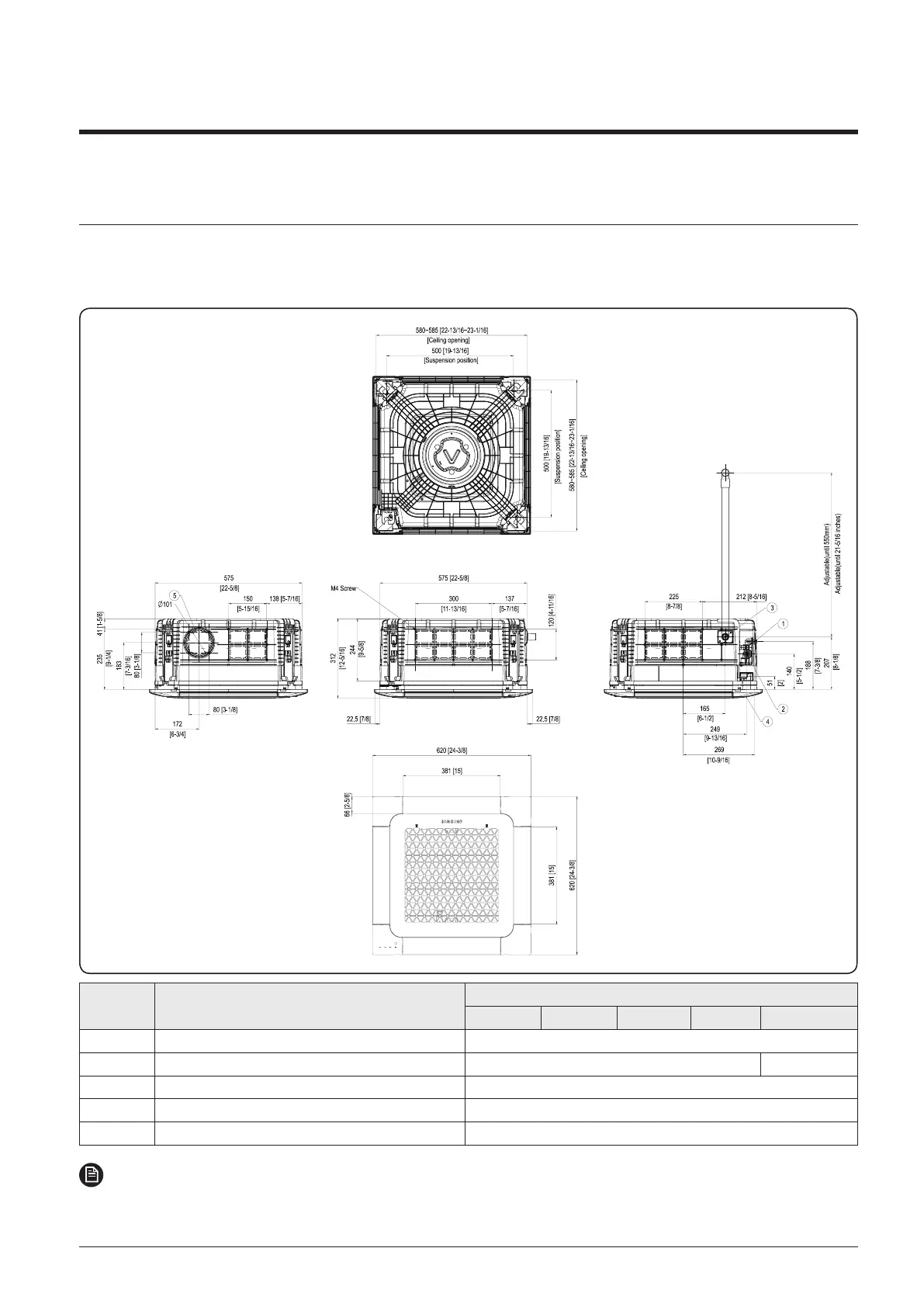

5. Dimensional Drawing
5-2. Indoor unit
5
Wind-Free 4Way Cassette (600x600) : AJ016TNNDKG/EU, AJ020TNNDKG/EU, AJ026TNNDKG/EU,
AJ035TNNDKG/EU, AJ052TNNDKG/EU
Units : mm [inches]
NO Name
Description
1.6 kW 2.0 kW 2.6 kW 3.5 kW 5.2 kW
1 Liquid pipe connection
2 Gas pipe connection
3 Drain pipe connection VP-25 (OD 32 mm, ID 25 mm)
4 Power & Communication wiring conduit -
5 Knock hole for Fresh air intake
NOTE
As for suspension bolt, please use M10. (Produced at local site)
