7

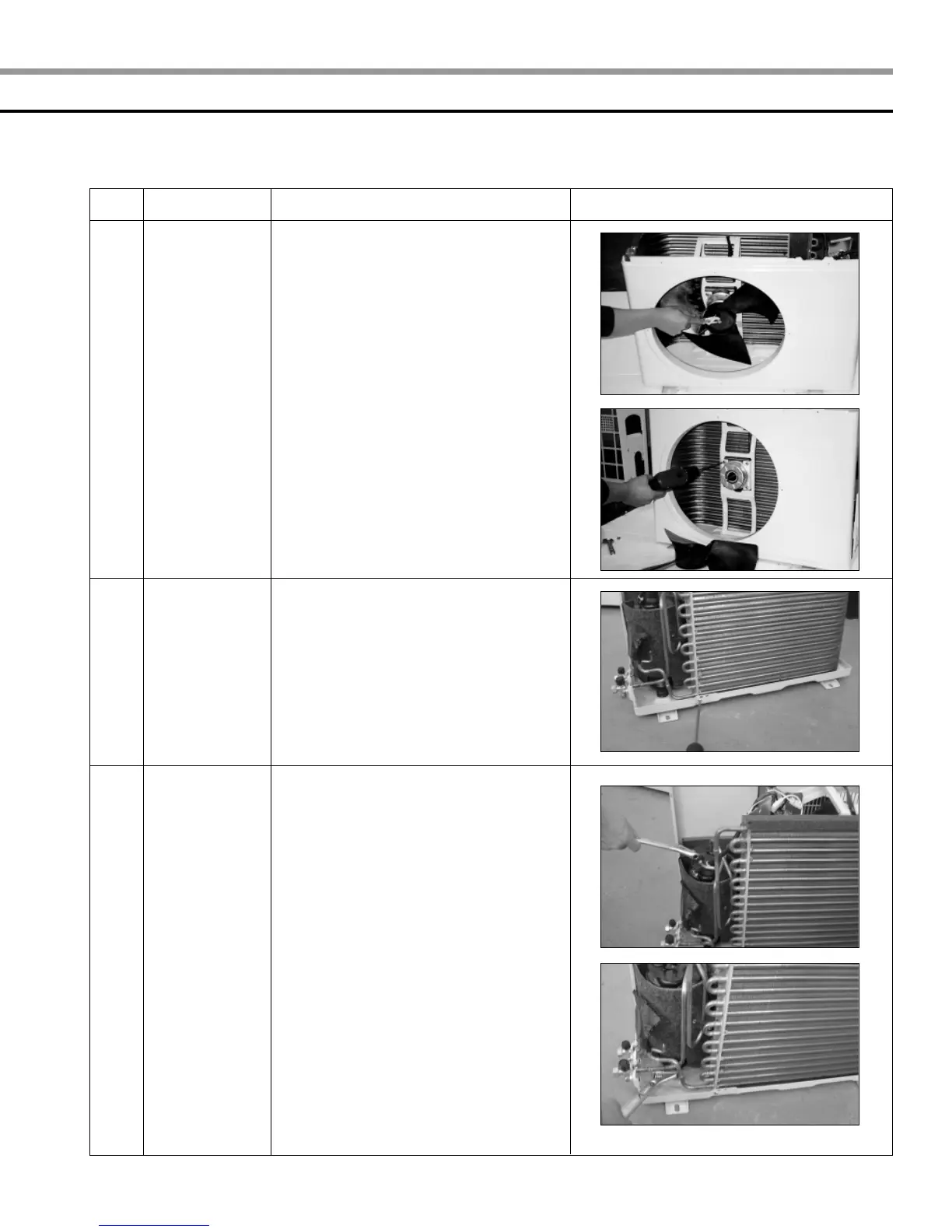

No. Part Procedure Remark
Compressor
Heat
Exchanger
3
4
2) Remove the nut flange
(Turn to the clockwise).
3) Separate the fan.
4) Loosen four screws to separate the motor.
1) Release the refrigerant.
2) Loosen two screws of left and right side.
3) Disassemble the inlet and outlet pipe by
welding.
4) Separate the heat exchanger.
1) Release the refrigerant.
2) Loosen the nut on the terminal cover
and open the terminal cover.
3) Separate the OLP and the compressor
wire.
4) Disassemble the inlet and outlet pipe
of compressor by welding.
5) Disassemble the inlet and outlet pipe
of condenser by welding.
6) Loosen three bolts of the lower part.
7) Separate the compressor.
AS07AS(6)MA SM_E 1/7/04 6:07 PM Page 7
